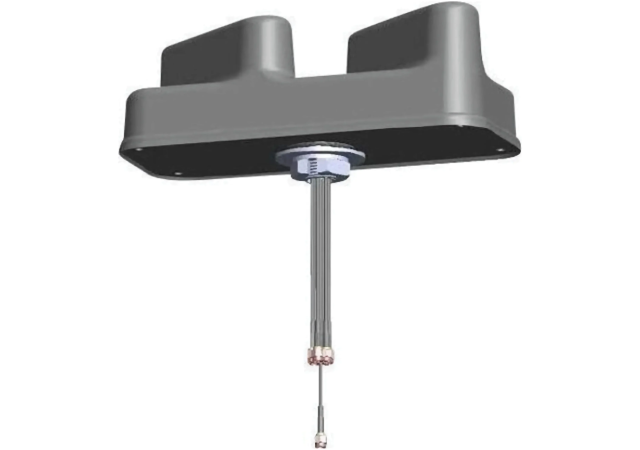

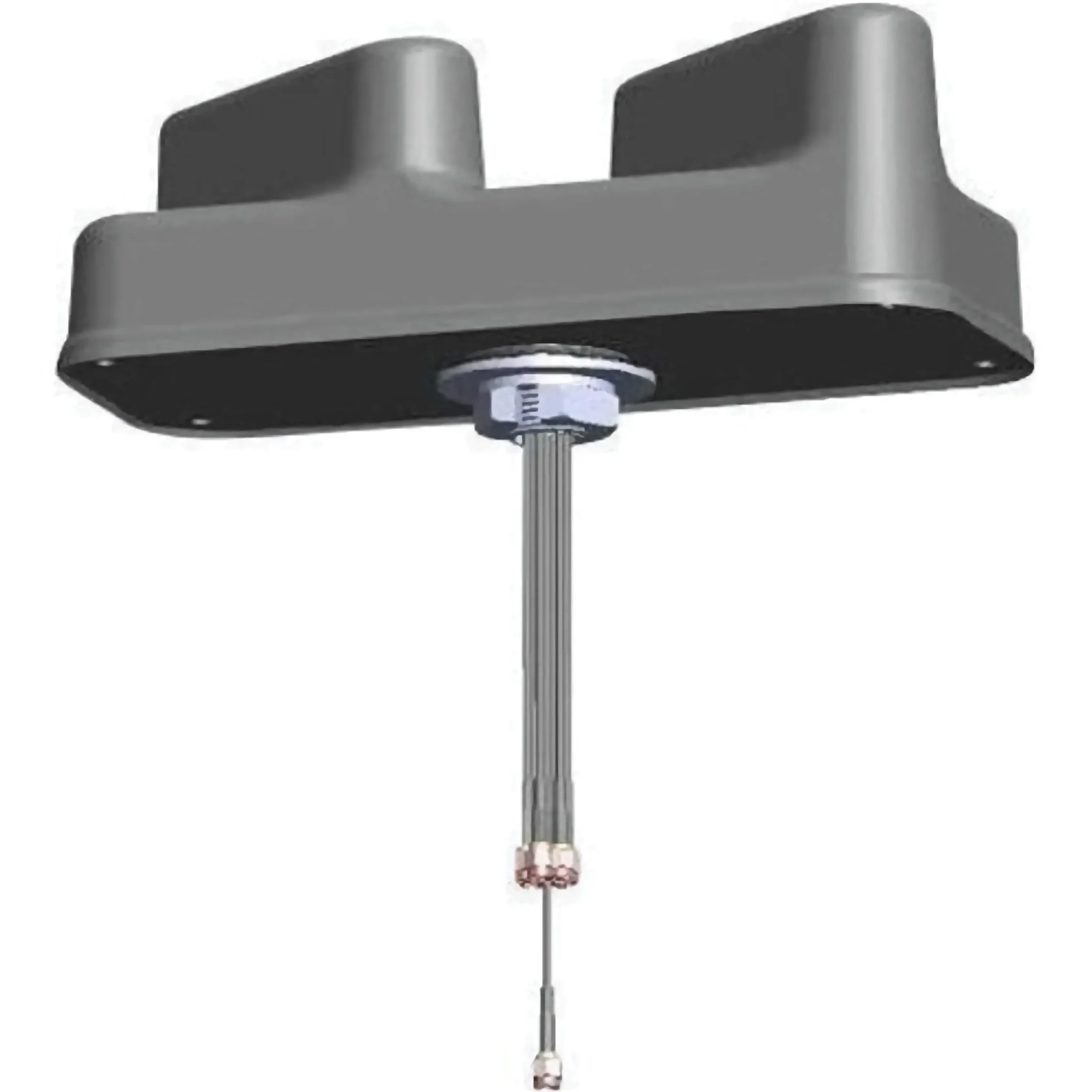

Cisco Part Number: ANT-7-5G4WL2G1-O= is a Cisco 7-in-1 Vehicle Mount and Fixed Infrastructure Antenna (Spare)
The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
The topics included are:

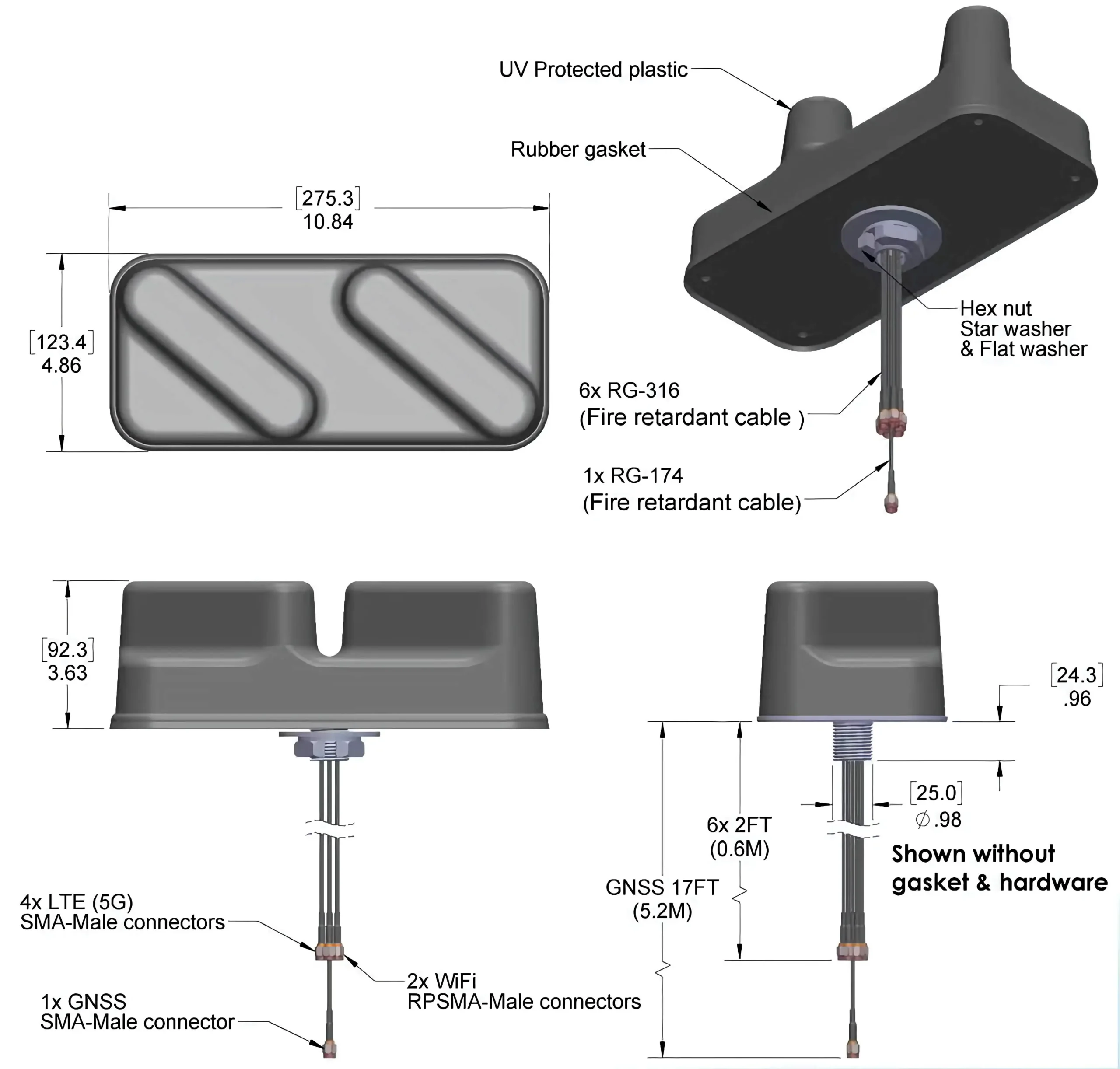

The antenna features:
4x SMA(m) connectors for LTE & 5G
2x RPSMA(m) connectors for Wi-Fi
1x SMA(m) connector for GNSS
Supports the following bands:
LTE/5G FR1: 617-960, 1710 - 5925 MHz
Wi-Fi, dual band: 2400 -2500 MHz
Includes Band 71 (617-698 MHz)
Average peak gain
617 960 MHz 2.1dBi
1710 5925 MHz 5.3dBi
2x 2400 2500/4900 5925MHz WiFi
Average peak gain
2400 2500 MHz 5.8dBi
4900 5925 MHz 5.5dBi
1x GNSS Active, supports GNSS, L1-Band 1560 - 1605 MH
Omni radiation pattern
