Cisco AIR-PWRINJ1500-2= Aironet 1520 Series Power Injector - PoE Adapter

Cisco Part Number:  AIR-PWRINJ1500-2=

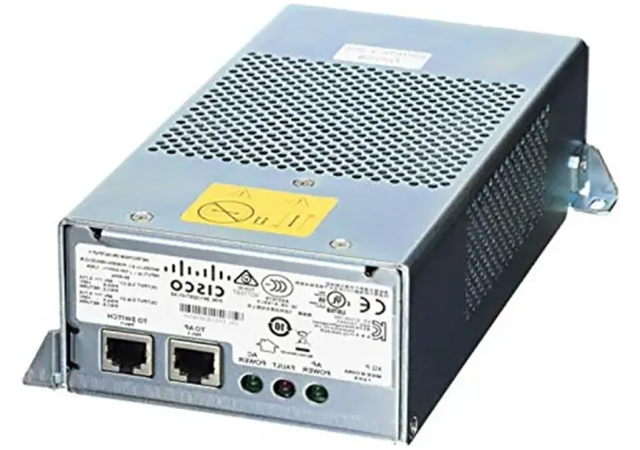

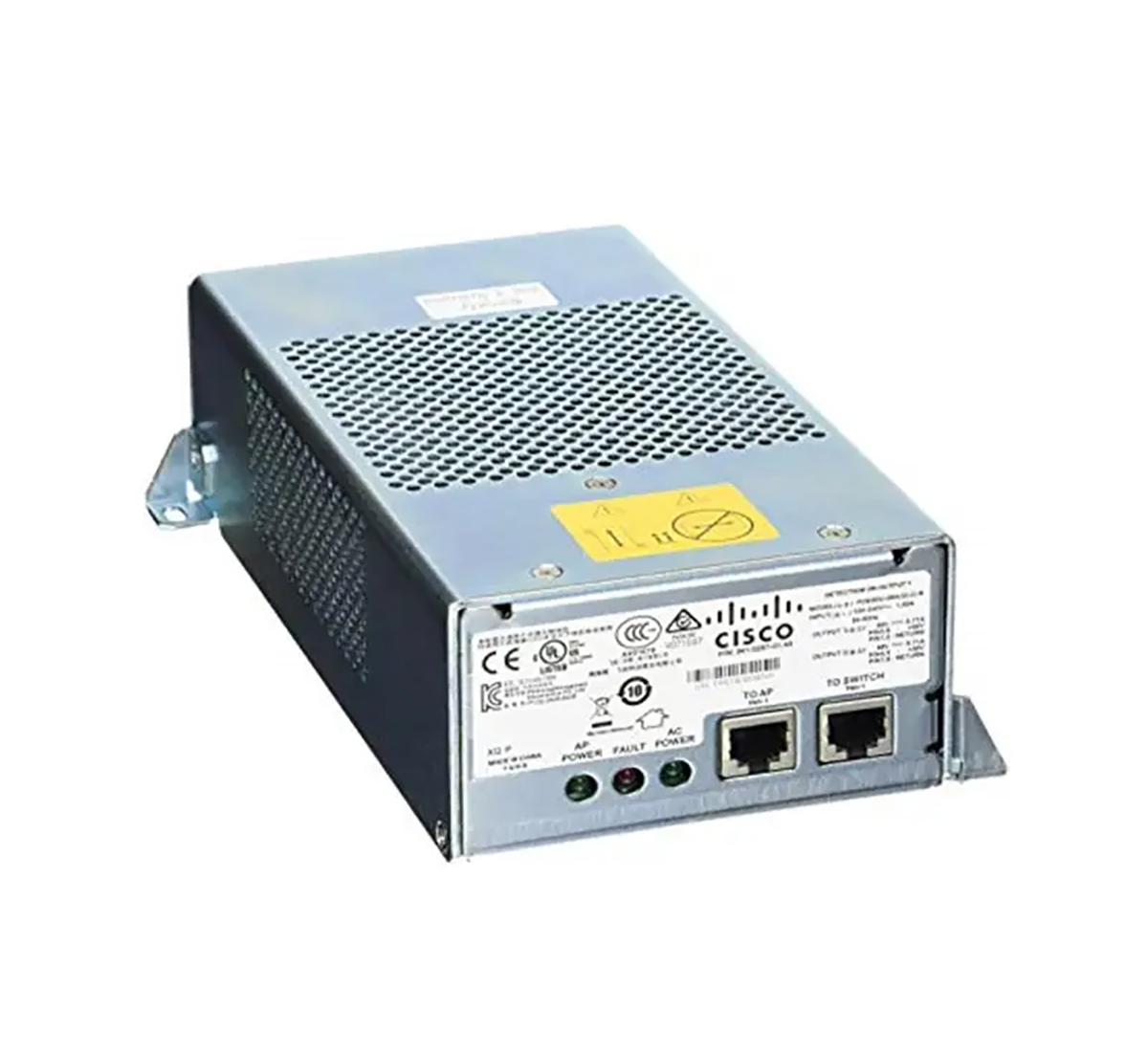

Cisco AIR-PWRINJ1500-2= — Aironet 1520 Series Power Injector

The Cisco AIR-PWRINJ1500-2= is a compact, inline power injector engineered to deliver both DC power and Ethernet data over a single cable to Cisco Aironet 1520 Series outdoor access points. It simplifies rooftop and outdoor AP deployments by removing the need for a local power source at the mount point while protecting the AP with integrated surge and power-management safeguards.

Key features

• Combines 56 VDC power with the Ethernet data signal — single-cable deployment.
• Designed specifically for Aironet 1520 Series access points (indoor power injector for outdoor APs).
• Built-in surge protection and safety features to minimise risk from power fluctuations.
• Compact, rack- or wall-mountable housing for neat installations.
• Requires country-appropriate AC power cord (sold separately or specified by region).

Compatibility & important notes

• Approved for use with Cisco Aironet 1520 Series — do not substitute with generic PoE sources or chargers; incompatible units (e.g., some other Aironet series) may cause malfunction or over-current conditions.
• Intended for indoor installation of the injector unit while powering outdoor-rated APs via outdoor-rated Ethernet cabling.

Why choose AIR-PWRINJ1500-2=

• Simplifies deployments on rooftops, poles, and other remote mounting points.
• Reduces installation cost and cabling complexity by delivering power and data over one cable.
• Maintains Cisco-tested power profile ensuring reliable operation of 1520-series APs.
