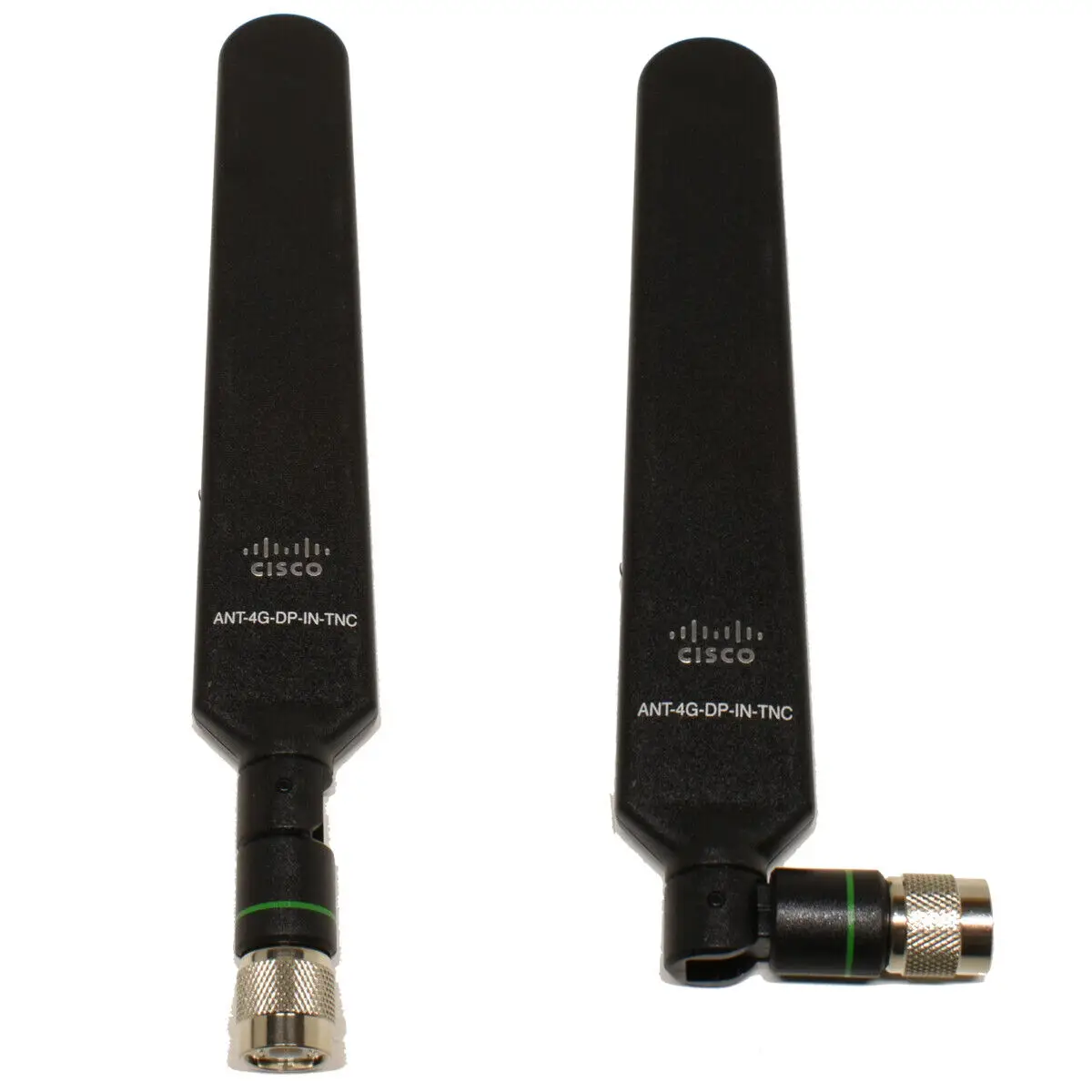

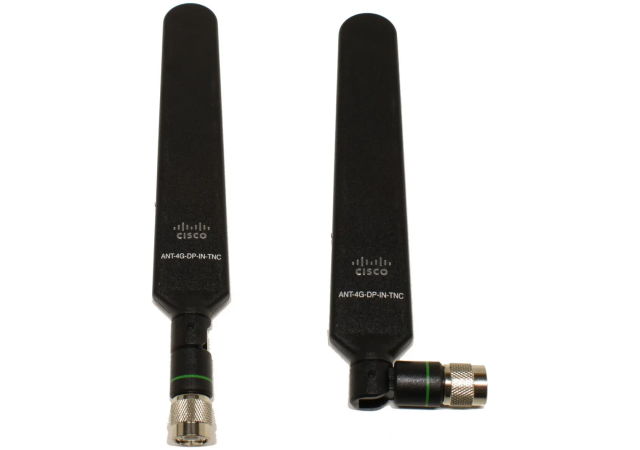

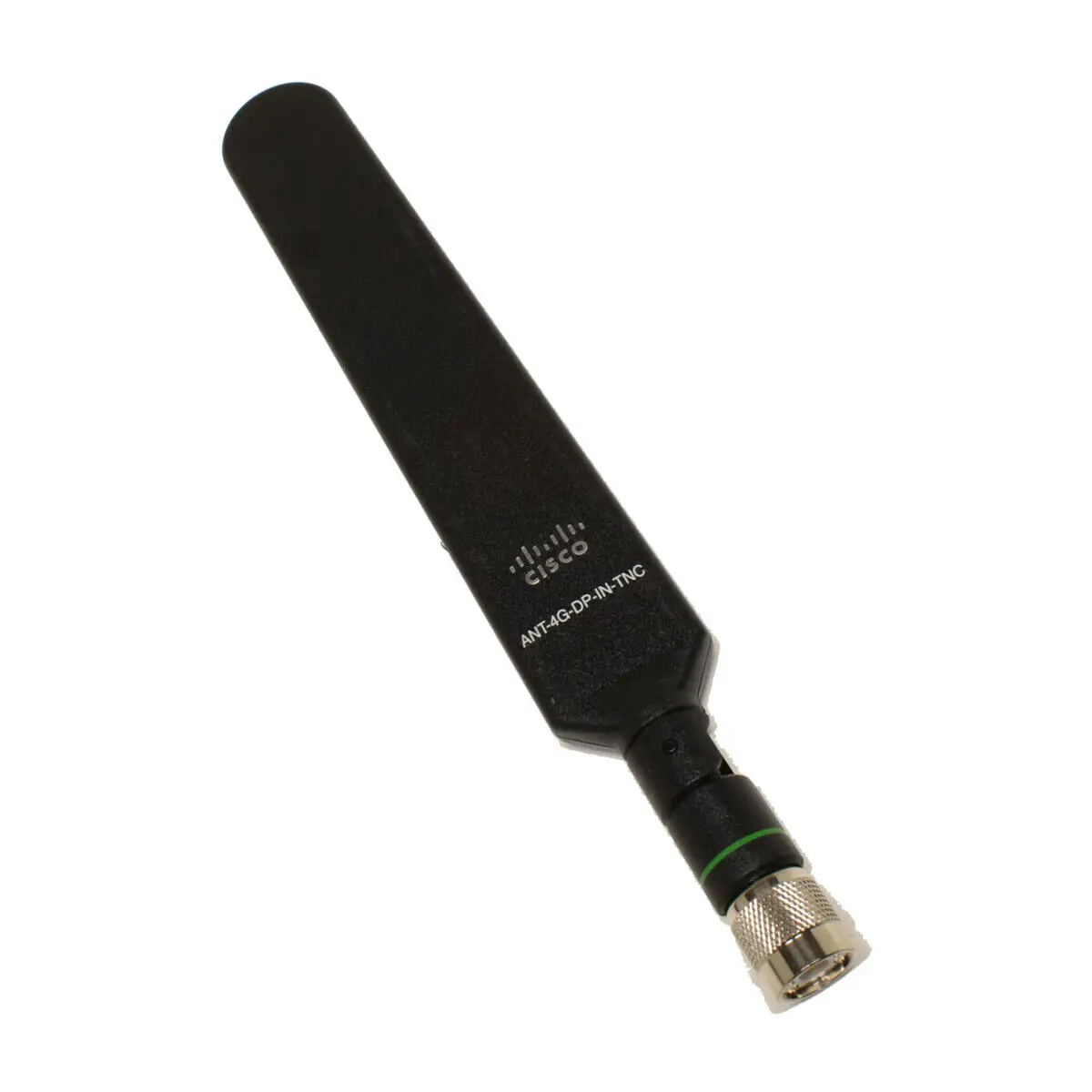

Cisco Part Number: ANT-4G-DP-IN-TNC= is a Cisco Indoor Swivel-mount Dipole Antenna (Spare)
Cisco Indoor Swivel-mount Dipole 3G/4G Antenna supported on the Connected Grid Router 1120 and is designed to support Cellular/PCS/AWS/MDS, WiMAX 2100/2300/2500/2600 and global GSM900/GSM1800/UMTS/LTE2600 bands.
Low-profile blade style sheath
Applicable for both 3G and 4G solutions
Domestic LTE 700 and global LTE 2600 bands
Domestic cellular and global GSM
Conformance to RoHS
Complete cellular and 3G/4G data communications in a single antenna
Articulating arm that allows antenna positioning to provide maximal coverage
|
Specification |
Description |
|---|---|
|
Frequency ranges |
698 to 806 MHz 824 to 894 MHz 880 to 960 MHz 1710 to 1880 MHz 1850 to 1990 MHz 1920 to 2170 MHz 2100 to 2500 MHz 2500 to 2690 MHz |
|
Peak gain (dBi) |
0.5 dBi (698 to 960 MHz) 2.2 dBi (1710 to 2700 MHz) |
|
Efficiency |
Antennas were designed and tested to high RF efficiency in all supported cellular bands. Detailed technical specifications can be obtained through your Cisco authorized partner or Cisco account representative. |
|
VSWR |
< 2.5:1 |
|
Nominal impedance |
50 ohms |
|
Polarization |
Linear |
