BRAND: Cisco

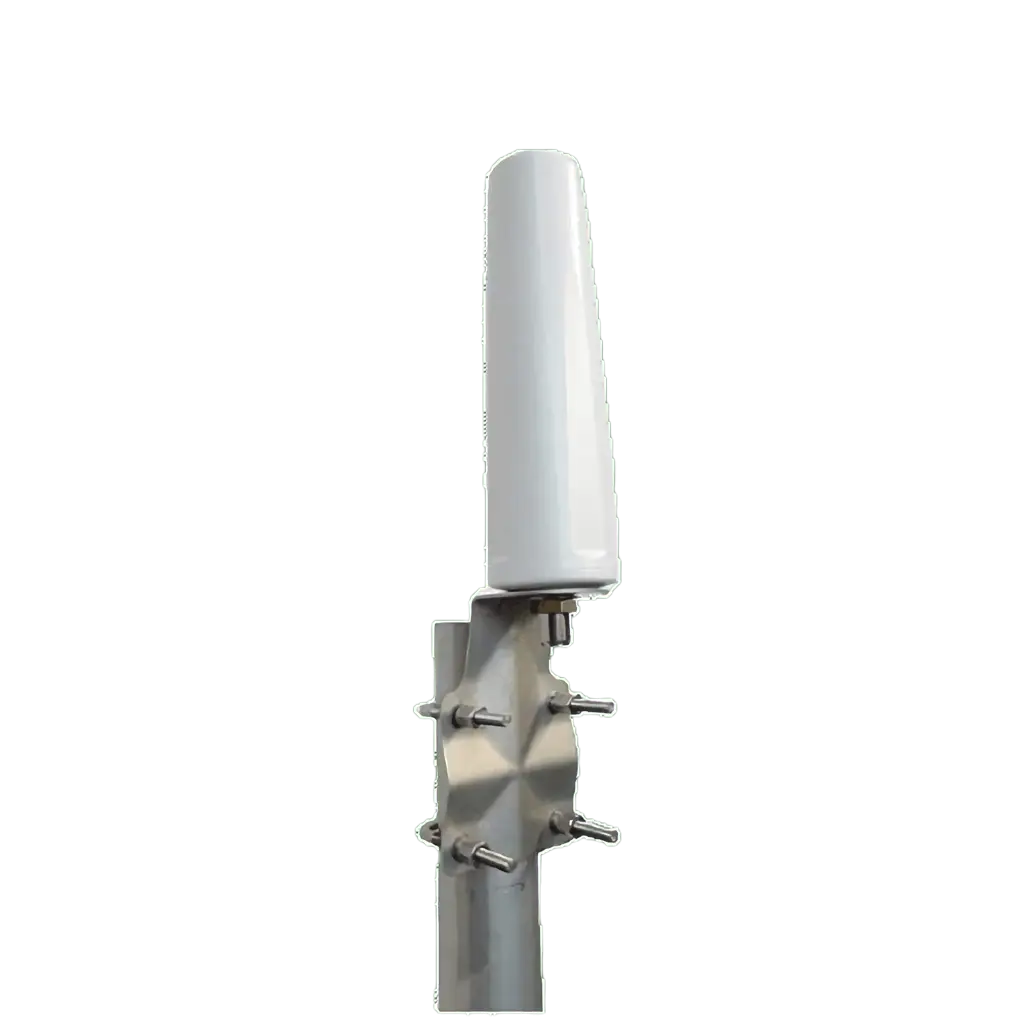

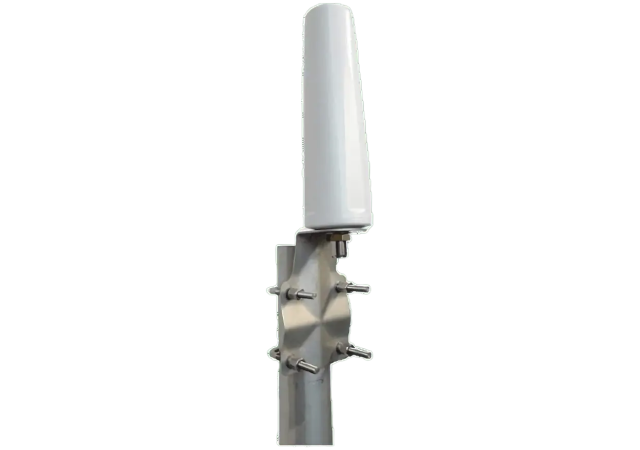

Cisco ANT-5G-OMNI-OUT-N - Antenna

MPN: ANT-5G-OMNI-OUT-N
£166.43
£199.72 Incl. VAT
AVAILABLE ON REQUEST
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

Cisco Part Number: ANT-5G-OMNI-OUT-N is a Cisco 4G (LTE) / 5G (FR1) Omnidirectional Outdoor Antenna

Antenna Type

Dipole

Operating Frequency Range

617-960 MHz

1450-7125 MHz

Includes Band 71 (617 698 MHz)

Note
Supports operation in LTE Japan bands (1400 – 1520 MHz)

Wi-Fi Capability

Dual Band Wi-Fi Support

Nominal Impedance

50 Ohms

VSWR (617-960 MHz)

VSWR (1450 7125 MHz)

2:1

2:1

Average peak gain (617-960 MHz)

Average peak gain (1450-4200 MHz)

Average peak gain (4400-7125 MHz)

2.5 dBi

4.0 dBi

4.3 dBi

Average efficiency (617-960 MHz)

Average efficiency (1450-4200 MHz)

Average efficiency (4400-7125 MHz)

81%

84%

66%

Radiation Pattern

Omni

HPBW Vertical Plane (617-960 MHz)

HPBW Vertical Plane (1450-4200 MHz)

HPBW Vertical Plane (4400-7125 MHz)

96°

48°

46°

Polarization

Vertical

Average Power Rating

10 W

ESD Protection

DC Grounded

Diameter

Dia. 2.45” (62.2mm)

Height

Height 8.64” (219.4mm)

Weight

1.37 lbs (620 g)

Connector

N-Female

(720 hour salt spray rating)

Bracket

Bracket, mounts to Ø1” to 2.12” (25.4 to 54mm) pole. (Horizontal or Vertical)

(720 hour salt spray rating)

Installation Torque

4-5 Ft/ lbs

Operational Temperature

-40° to +185°F (-40°C to +85°C)

Storage Temperature

-40° to +185°F (-40°C to +85°C)

Ingress Protection

IP66 and IP67

RoHS-6 Compliant

Yes
