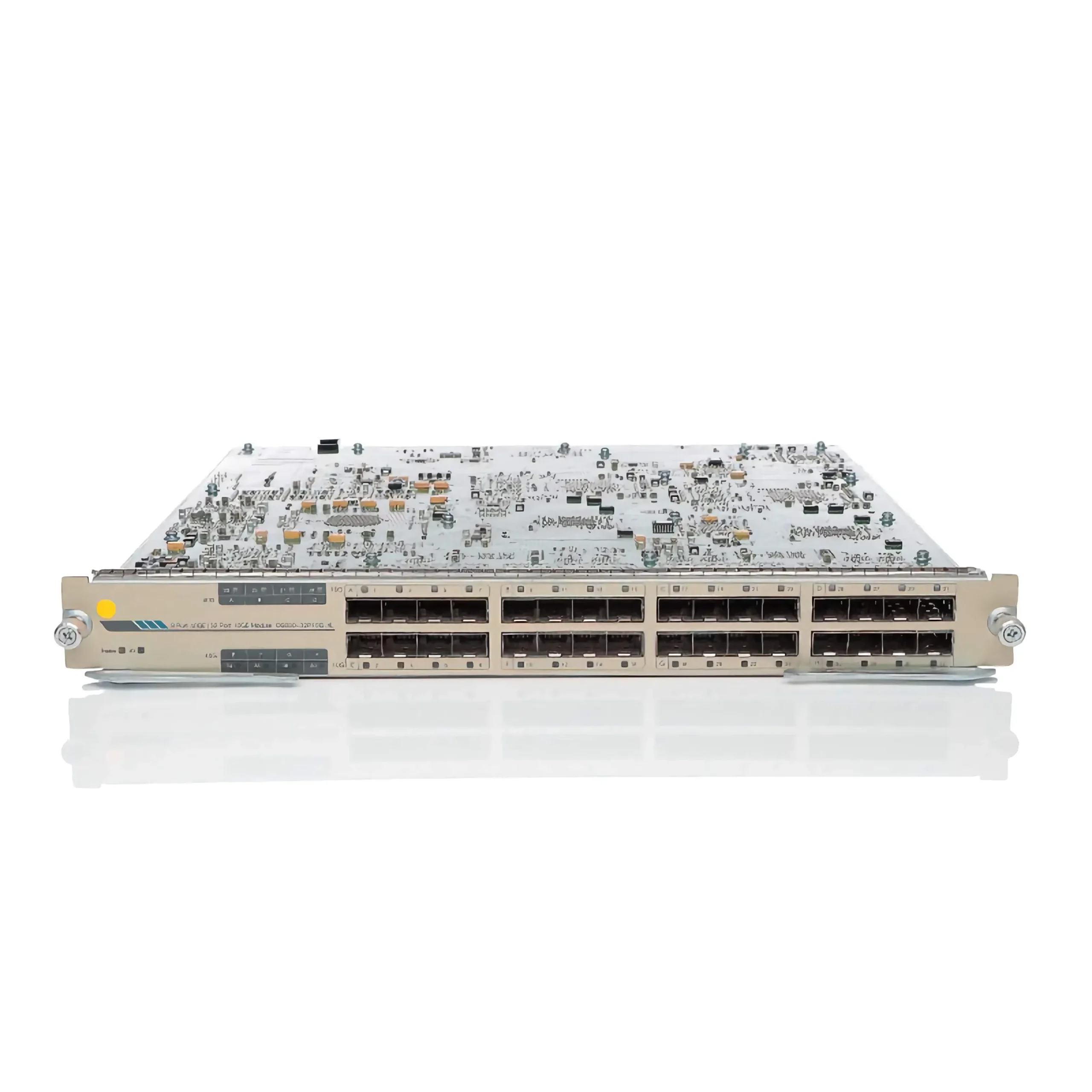

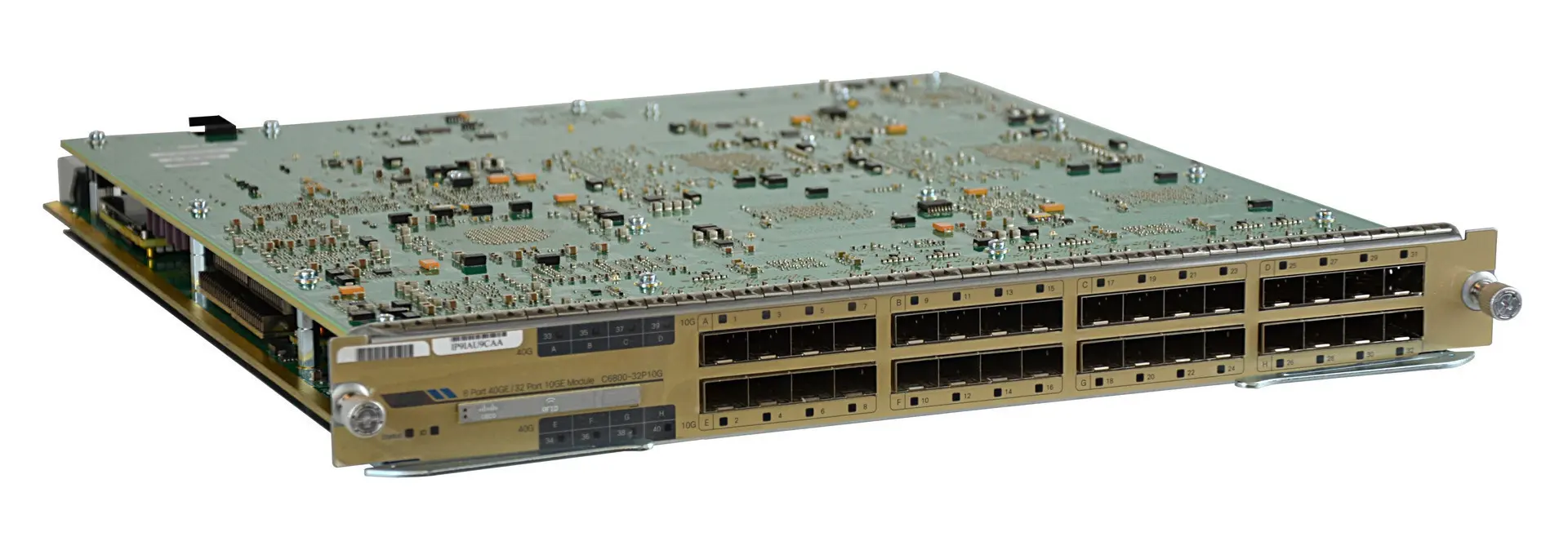

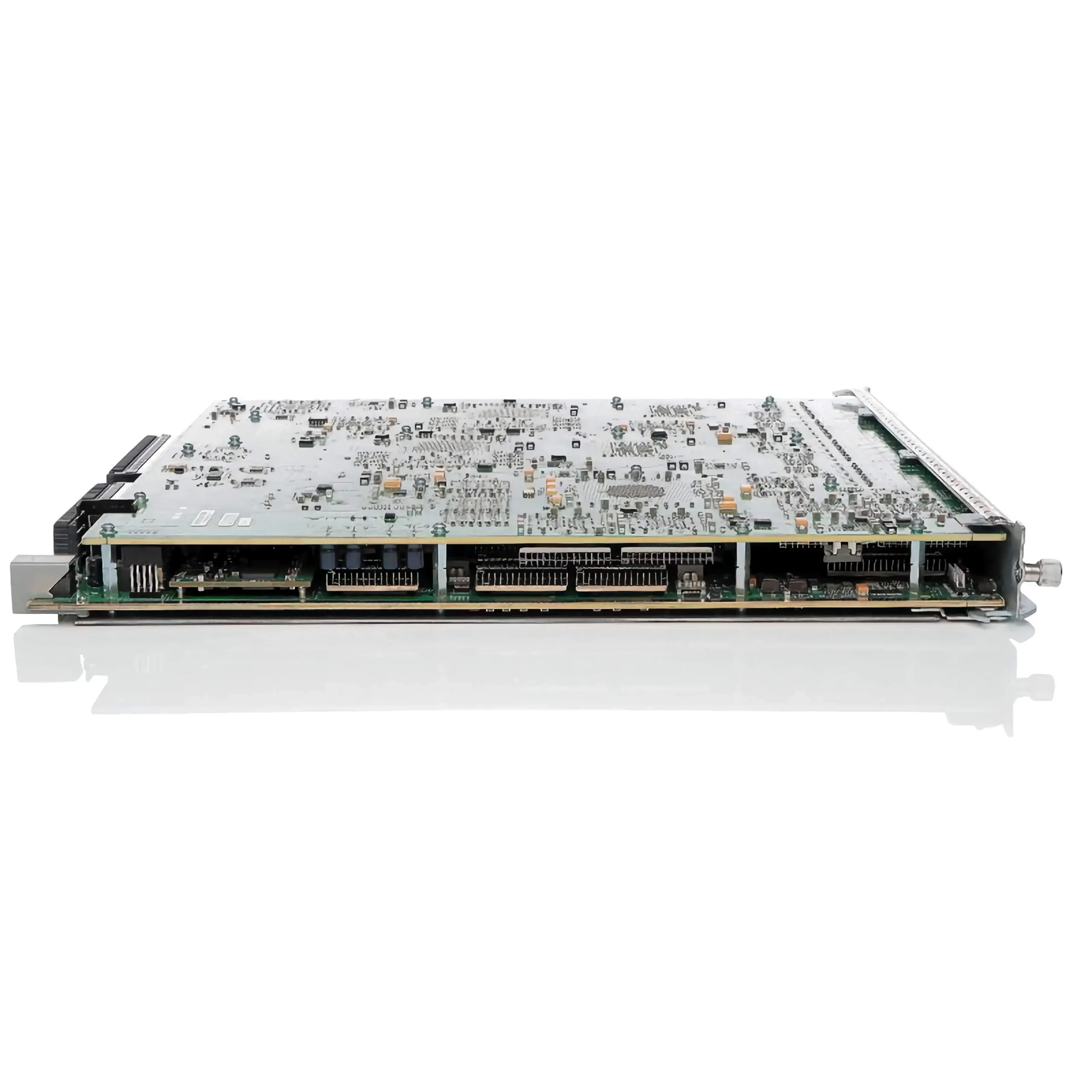

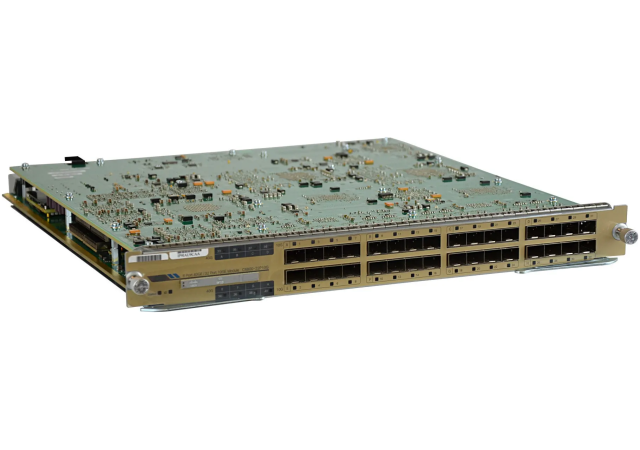

Cisco C6800-32P10G-XL= - Interface Module

Brand: Cisco MPN: C6800-32P10G-XL=
Out Of Stock
Catalyst 6800 32-port 10GE with dual integrated dual DFC4-XL, RF

Price on request

Add to Quote

Need Help Ordering?

Call 020 3880 8840

Description
Tech overview

Cisco Part Number: C6800-32P10G-XL=

The Cisco Catalyst® 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst® 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules.

The modules support hardware-based multicast replication, quality of service (QoS), access control lists (ACLs), jumbo frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications. All three share a common ASIC architecture and support the same set of features in hardware. They support Small Form-Factor Pluggable (SFP/SFP+), 10/100/1000M GLC-T (1G copper SFP) transceivers, and 100M FX. The modules are designed to meet the increasing demand for aggregation of 10-Gigabit Ethernet streams in campus deployments, as well as for high-density 10-Gigabit Ethernet transport in the core.

The modules consist of port groups of eight ports each. The 32-port and 16-port modules can operate in either of two modes: 1) oversubscribed mode (default), which provides for maximum port density, using all of the ports with 2:1 oversubscription; and 2) performance mode, which uses half of the ports, enabling line rates and double the port buffer size. The mode of operation can be changed for each eight-port port-group (mixed mode), and is described in more detail in the following sections. The eight-port 10-Gigabit Ethernet Module always operates in performance mode.

The modules are based on the WS-X6904-40G module and provide the same level of advanced enterprise features and large table sizes that have proven essential to successful operation as a campus aggregation or core switch. They include hardware features such as Virtual Switching System (VSS), Instant Access (IA), Location ID Separation Protocol (LISP), Security Group Tagging (SGT) and Access Control (SGACL), MACsec (802.1ae), traffic shaping, and hierarchical quality of service (HQoS), among others. The line cards are also the first to launch with front-facing passive UHF RFID technology, providing the latest Auto-ID capabilities for asset management.

The C6800 Family 32-port 10-Gigabit Ethernet Fiber Module is suitable for deployment in all campus aggregation and core networks.
– Two models: C6800-32P10G, a 32-port 10-Gigabit Ethernet Fiber Module with DFC4 (see Figure 1), and C6800-32P10G-XL, a 32-port 10-Gigabit Ethernet Fiber Module with DFC4XL
– Backplane connection: 160-Gbps backplane bandwidth in 6807XL; 80 Gbps backplane bandwidth in 6500-E chassis
– Chassis/slot support: Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E
– Supervisor engine: Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL
– Distributed forwarding and performance: Comes equipped with factory-installed dual (2) DFC4-E or DFC4-EXL daughter cards

The C6800 Family 32-port 10-Gigabit Ethernet Fiber module provides up to 160 10-Gigabit Ethernet fiber ports in a single Cisco Catalyst 6807-XL Switch chassis or up to 320 10-Gigabit Ethernet fiber ports in a Cisco Catalyst 6807-XL Virtual Switching System (VSS) 2T. It also provides up to 352 10-Gigabit Ethernet fiber ports in a single Cisco Catalyst 6513-E Switch chassis, or up to 704 10-Gigabit Ethernet fiber ports in a Cisco Catalyst 6500 VSS 2T.
