BRAND: Cisco

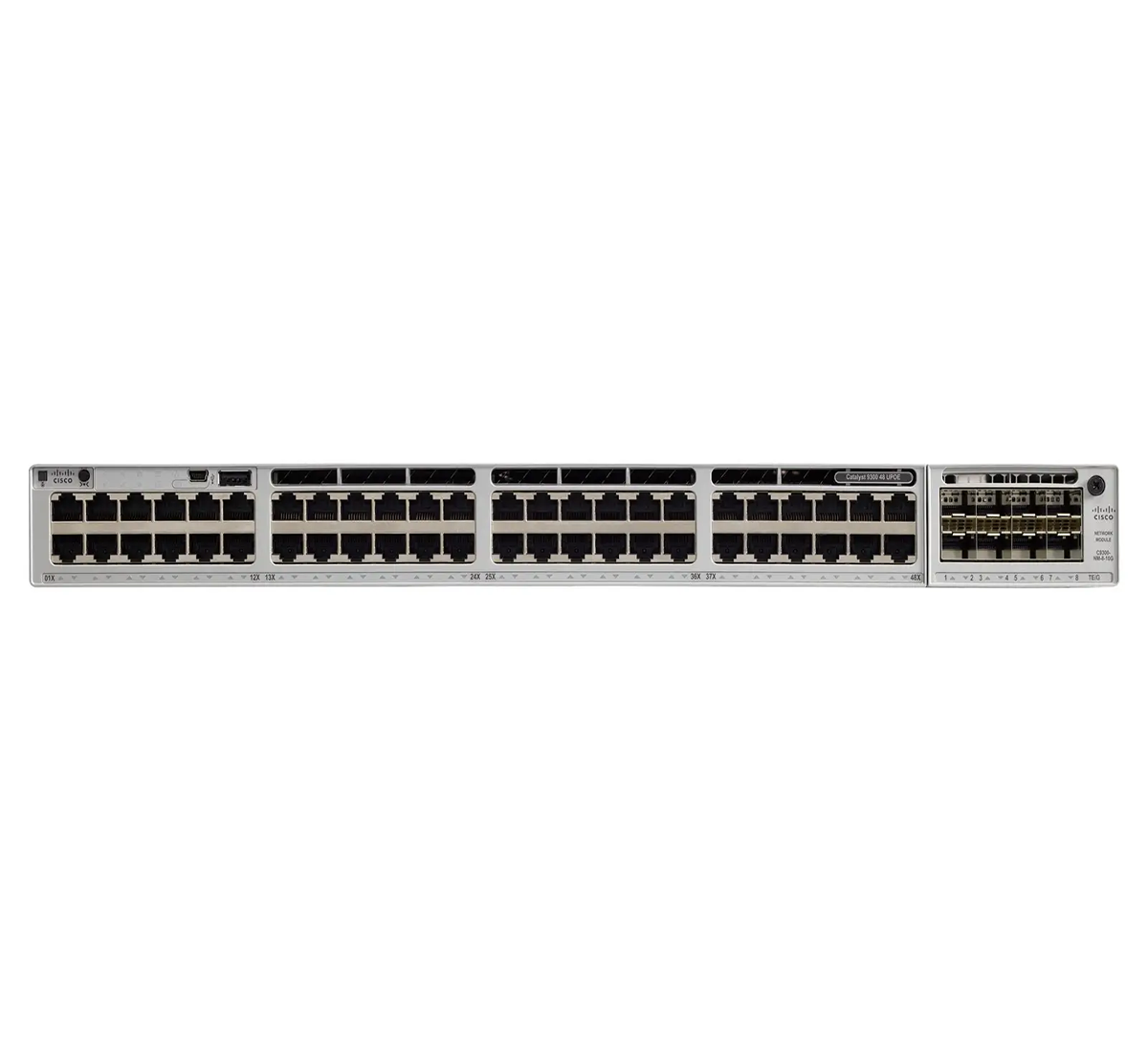

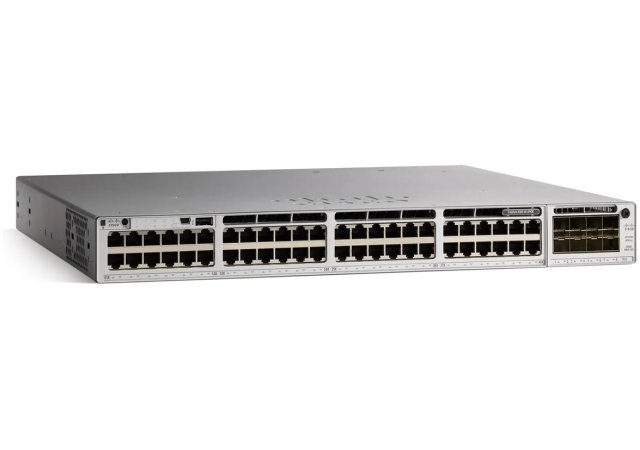

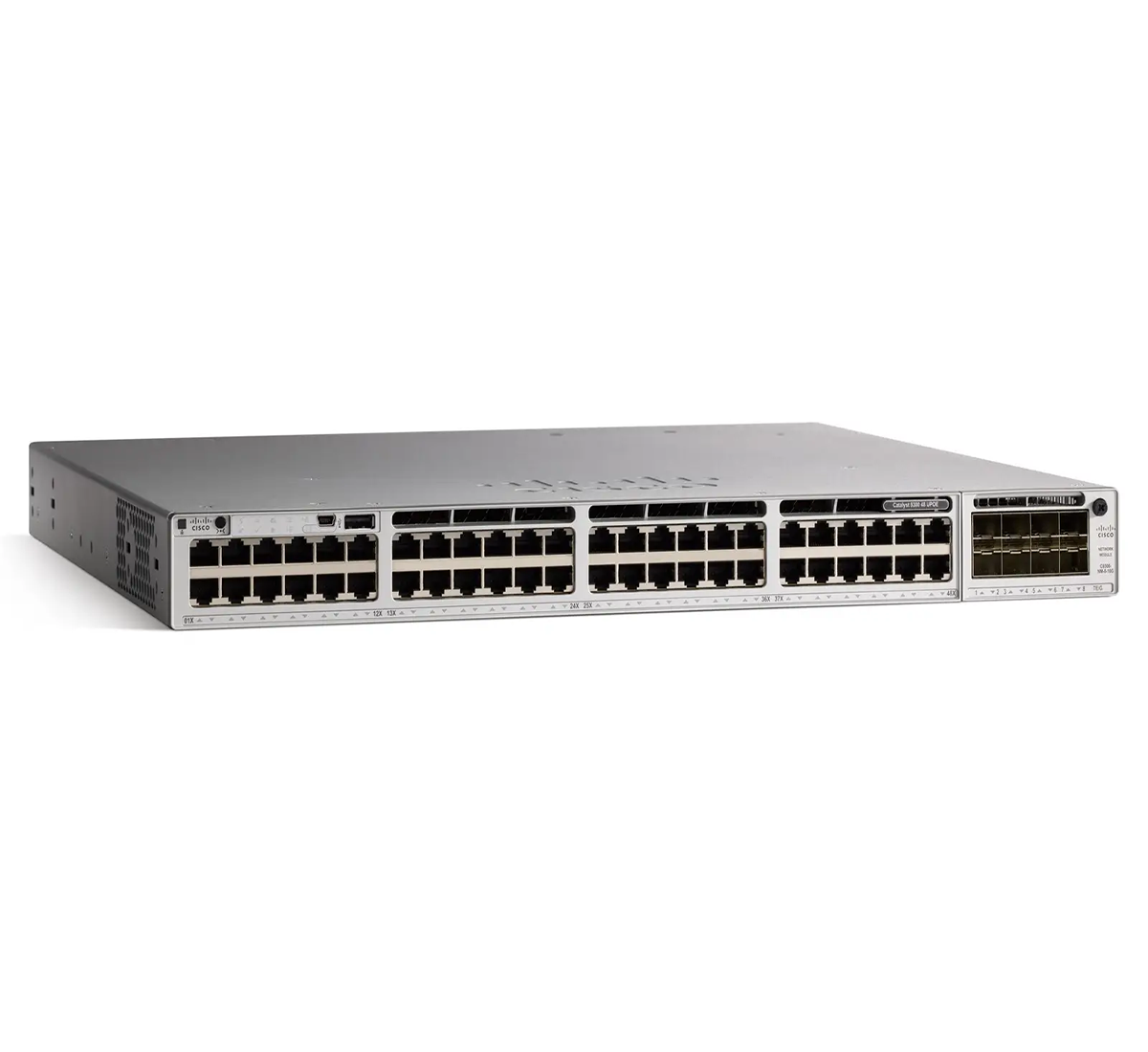

Cisco Catalyst C9300-48U-M - Access Switch

MPN: C9300-48U-M
£4,874.58
£5,849.50 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Our Services
Links & Documents

Cisco Part Number: C9300-48U-M is a Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Meraki Advance or Enterprise

Cisco's Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.

Key industry-first features:

  • Stacking Bandwidth: Catalyst 9300 offers 1TB stacking bandwidth, the highest-density solution with versatile uplink options.
  • Uplink Variety: Modular uplinks include 100G, 40G, 25G, Multigigabit, 10G, and 1G for flexibility.
  • Mixed Stacking: Enables stacking of Catalyst 9300X with backward compatibility, introducing high-speed fiber to access.
  • Multigigabit Ports: Catalyst 9300X models support 48 standalone and 448 with an 8-member stack, offering the highest Multigigabit ports.
  • UPOE+ Density: Supports up to 36 standalone or 288 ports with an 8-member stack, ensuring high-density UPOE+ for OT/IT needs.
  • Stack Power Compatibility: Catalyst 9300X supports Stack Power with backward compatibility, ensuring power resiliency.
  • 100G IPsec: Utilizing the 2.0Sec UADP ASIC, Catalyst 9300X provides 100G line rate IPsec for enhanced edge connectivity.
  • Secure Tunnel Connectivity: Facilitates secure connections to Internet Gateways, Cloud Service Providers, and Site to Site with speeds up to 100G.
  • Enhanced Application Hosting: Increased capacity, additional RAM, QAT, and 2 x 10G AppGig Ports for hosting multiple performance-savvy Cisco Signed applications.
  • ThousandEyes Enabled: End-to-end visualization from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses).
  • Investment Protection: Catalyst 9300X redundant fans, power supplies, data stack, and StackPower cables are backward compatible with the Catalyst 9300.

Cisco Catalyst C9300-48U switch configuration:

Model

Total 10/100/1000, Multigigabit copper or SFP Fiber

Uplink Configuration

Default AC power supply

C9300-48U-M

48 port Cisco UPOE

Modular Uplinks

1100W AC



Power supply configurations:

Models

Primary Power Supply

Default or Upgrade

Available PoE

With 350W Secondary PS

With 715W secondary PS

With 1100W Secondary PS

With 1900W Secondary PS

C9300-48U-M

PWR-C1-1900WAC-P

Upgrade

1622W

1800W**

1800W**

1800W**

1800W**

PWR-C1-1100WAC-P

Default

822W

1172W

1537W

1800W**

1800W**

**Limited by design



Bandwidth specification:

SKU

Switching capacity

Switching capacity with stacking

Forwarding rate

Forwarding rate with stacking

C9300-48U-M

256 Gbps

736 Gbps

190.48 Mpps

547.62 Mpps
