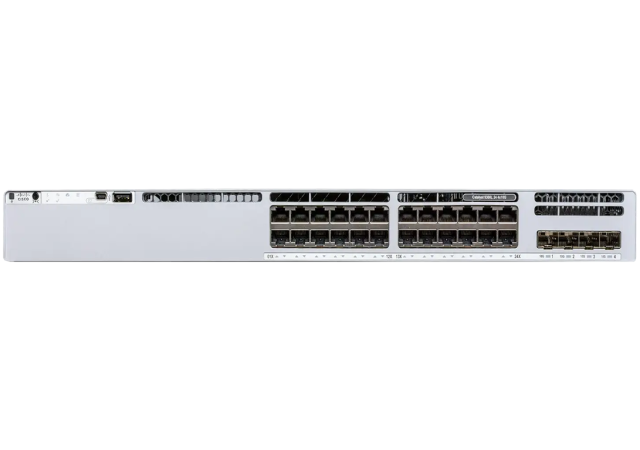

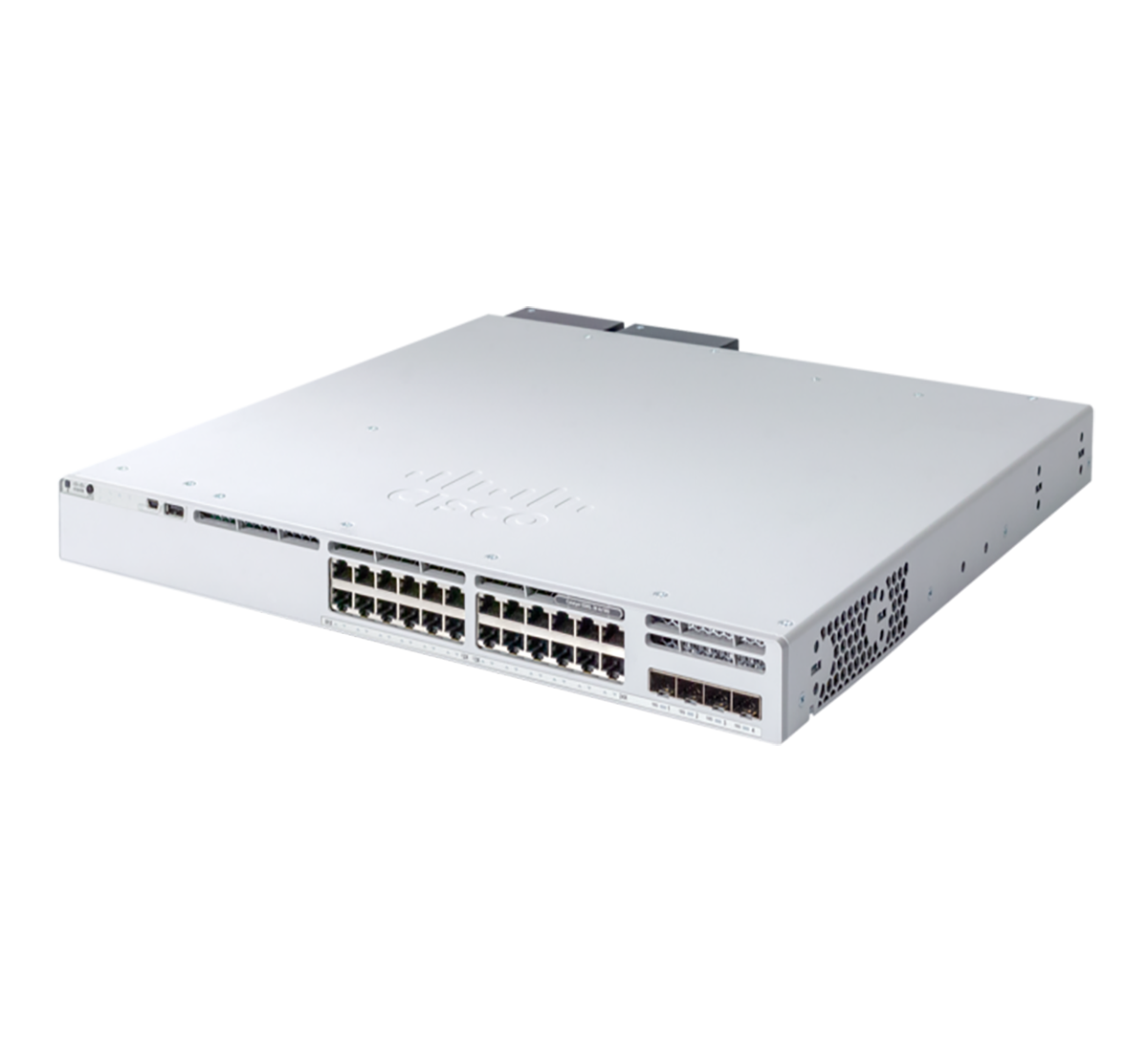

Cisco Part Number: C9300L-24T-4X-M is a Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise
Cisco's Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.
Key industry-first features:
Cisco Catalyst C9300L-24T-4X switch configuration:
Model |
Total 10/100/1000, Multigigabit copper or SFP Fiber |
Uplink Configuration |
Default AC power supply |
---|---|---|---|
C9300L-24T-4X-M |
24 port Data |
4x 10G/1G fixed uplinks |
350W AC |
Power supply configurations:
Model |
Primary power supply |
Default or Upgrade |
Available PoE power |
With 350W Secondary PS |
With 715W Secondary PS |
With 1100W Secondary PS |
---|---|---|---|---|---|---|
C9300L-24T-4X-M |
PWR-C1-350WAC-P |
Default |
No PoE |
No PoE |
No PoE |
No PoE |
Bandwidth specification:
SKU |
Switching capacity |
Switching capacity with stacking |
Forwarding rate |
Forwarding rate with stacking |
---|---|---|---|---|
C9300L-24T-4X-M |
128 Gbps |
448 Gbps |
95.23 Mpps |
333.33 Mpps |
