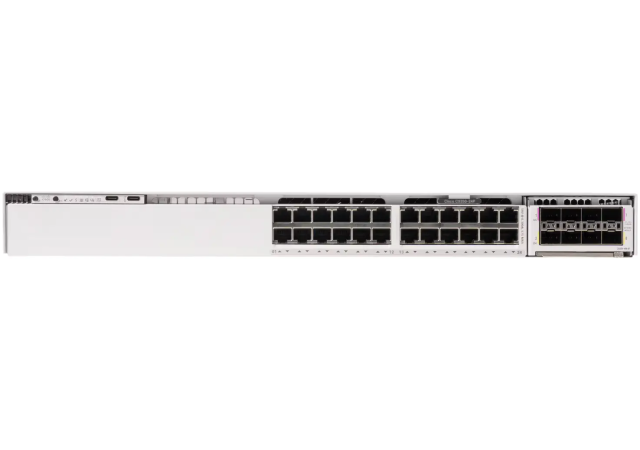

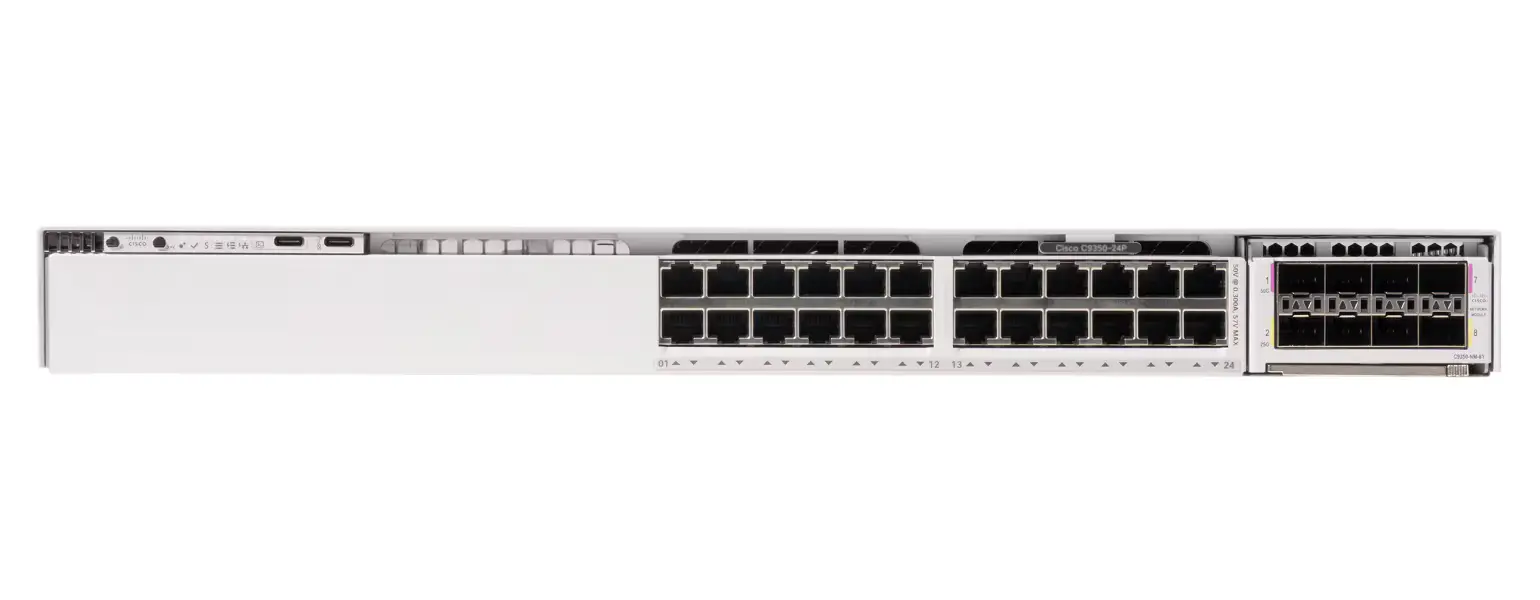

Cisco C9350-24P - Smart Switch

Cisco Part Number: C9350-24P is a Cisco 9350  24-port 30W PoE+ switch

The Cisco Catalyst 9350 Series 1G switches deliver reliable enterprise-class performance with up to 48 copper downlink ports supporting 10/100/1000 Mbps speeds and full IEEE 802.3bt Type 3 UPOE (up to 60W per port). When combined in an eight-member StackWise-1.6T configuration, the platform scales to 384×1G ports and 384×60W UPOE ports, providing unified management and high availability.

These models use the same modular hardware components as their multigigabit counterparts, ensuring operational consistency, streamlined deployments, and simplified maintenance.

Designed for versatility, the Cisco 9350 1G platforms are an excellent fit for:

• High-performance wired access
• Smart building and IoT infrastructure
• IP-based endpoints such as phones, cameras, and wireless access points

By combining scalability, power flexibility, and enterprise resiliency, the 9350 Series 1G platforms support a wide range of modern enterprise access requirements.

C9350-24P use cases:

• Cisco C9350-24P provides 24 ports of 1 Gigabit Ethernet, each delivering 30W of PoE, efficiently powering devices like IP cameras, sensors, and other PoE-enabled equipment.

Highlights:

• Cisco C9350-24P integrates a single Silicon One A100 ASIC, enabling efficient 1G hardware-based packet forwarding.
• Cisco C9350 offers 24 downlink ports supporting 10M/100M/1G speeds, each delivering up to 30W of PoE, with a total PoE budget of 720W to power PoE devices.
• Cisco C9350-24P supports modular uplinks delivering up to 200 Gbps.
