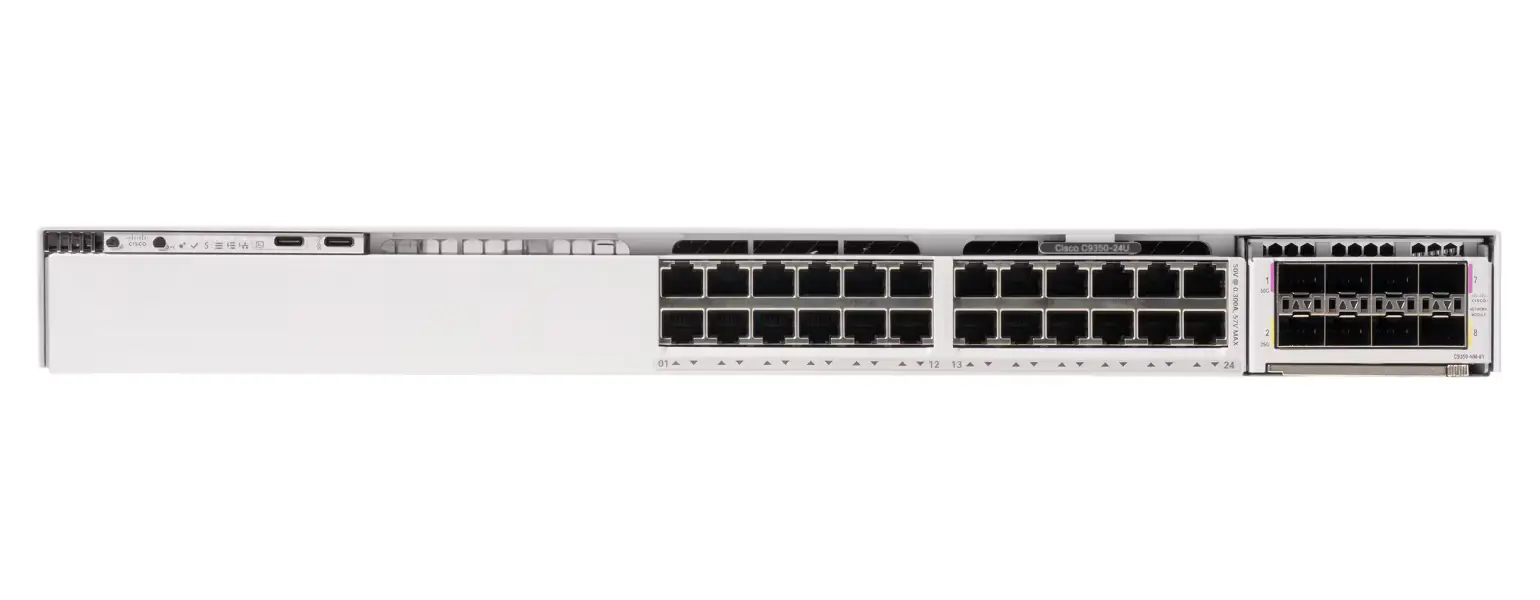

Cisco C9350-24U - Smart Switch

Cisco Part Number: C9350-24U is a Cisco 9350 24-port 60W UPoE switch

The Cisco Catalyst 9350 Series 1G switches deliver reliable enterprise-class performance with up to 48 copper downlink ports supporting 10/100/1000 Mbps speeds and full IEEE 802.3bt Type 3 UPOE (up to 60W per port). When combined in an eight-member StackWise-1.6T configuration, the platform scales to 384×1G ports and 384×60W UPOE ports, providing unified management and high availability.

These models use the same modular hardware components as their multigigabit counterparts, ensuring operational consistency, streamlined deployments, and simplified maintenance.

Designed for versatility, the Cisco 9350 1G platforms are an excellent fit for:

• High-performance wired access
• Smart building and IoT infrastructure
• IP-based endpoints such as phones, cameras, and wireless access points

By combining scalability, power flexibility, and enterprise resiliency, the 9350 Series 1G platforms support a wide range of modern enterprise access requirements.

C9350-24U use cases:

• Cisco C9350-24U features 24 ports of 1 Gigabit Ethernet, each providing 60W of UPOE (IEEE 802.3bt Type 3), ensuring reliable power delivery to a wide range of PoE devices.

C9350-24U highlights:

• Cisco C9350-24U uses a single Silicon One A100 ASIC for efficient 1G switching and hardware-based packet forwarding.
• It offers 24 downlink ports with 10M/100M/1G speeds, each providing 60W UPOE, with a total PoE budget of 1440W to power network edge devices.
• Cisco C9350-24U supports modular uplinks delivering up to 200 Gbps.
