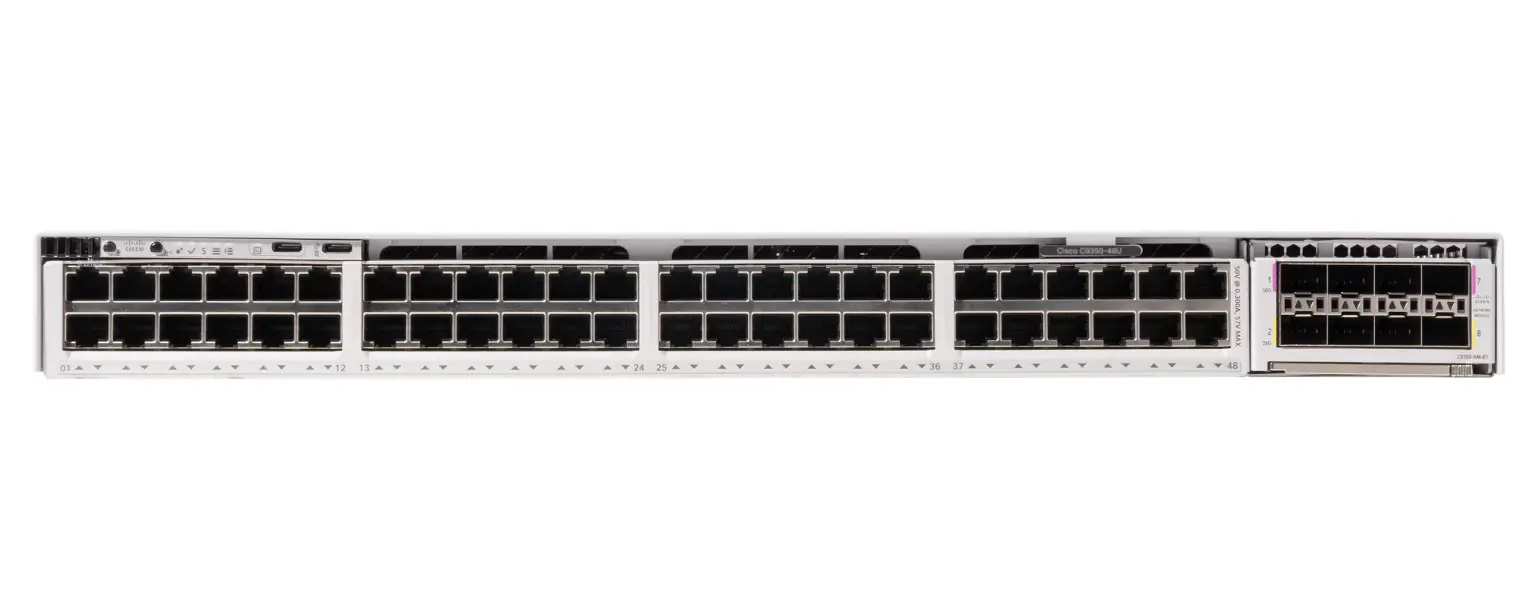

Cisco Part Number: C9350-48U is a Cisco 9350 48-port 60W UPoE switch
The Cisco Catalyst 9350 Series 1G switches deliver reliable enterprise-class performance with up to 48 copper downlink ports supporting 10/100/1000 Mbps speeds and full IEEE 802.3bt Type 3 UPOE (up to 60W per port). When combined in an eight-member StackWise-1.6T configuration, the platform scales to 384×1G ports and 384×60W UPOE ports, providing unified management and high availability.
These models use the same modular hardware components as their multigigabit counterparts, ensuring operational consistency, streamlined deployments, and simplified maintenance.
Designed for versatility, the Cisco 9350 1G platforms are an excellent fit for:
- High-performance wired access
- Smart building and IoT infrastructure
- IP-based endpoints such as phones, cameras, and wireless access points
By combining scalability, power flexibility, and enterprise resiliency, the 9350 Series 1G platforms support a wide range of modern enterprise access requirements.
C9350-48U use cases:
- Cisco C9350-48U provides 48 ports of 1 Gigabit Ethernet with 60W UPOE (IEEE 802.3bt Type 3) per port, delivering reliable power for HD IP cameras, PoE sensors, access control systems, and intelligent lighting.
- Cisco C9350-48U is ideal for enterprise access layer deployments in office campuses, education facilities, healthcare environments, and retail branches requiring high-density 1G connectivity and moderate-power PoE support.
Highlights:
- Cisco C9350-48U integrates a single Silicon One A100 ASIC to deliver consistent 1G switching with intelligent traffic management and hardware-based forwarding.
- Cisco C9350-48U features 48 downlink ports with 10M/100M/1G speeds, each delivering 60W of UPOE, for a total PoE budget of 2880W. This enables flexible connectivity and powers a range of access layer endpoints.
- Cisco C9350-48U supports modular uplinks delivering up to 200 Gbps of total uplink bandwidth to accommodate high-throughput aggregation and core connections.
