BRAND: Cisco

Cisco Catalyst C9800-80-K9 - Wireless Controller

MPN: C9800-80-K9
£49,031.44
£58,837.73 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

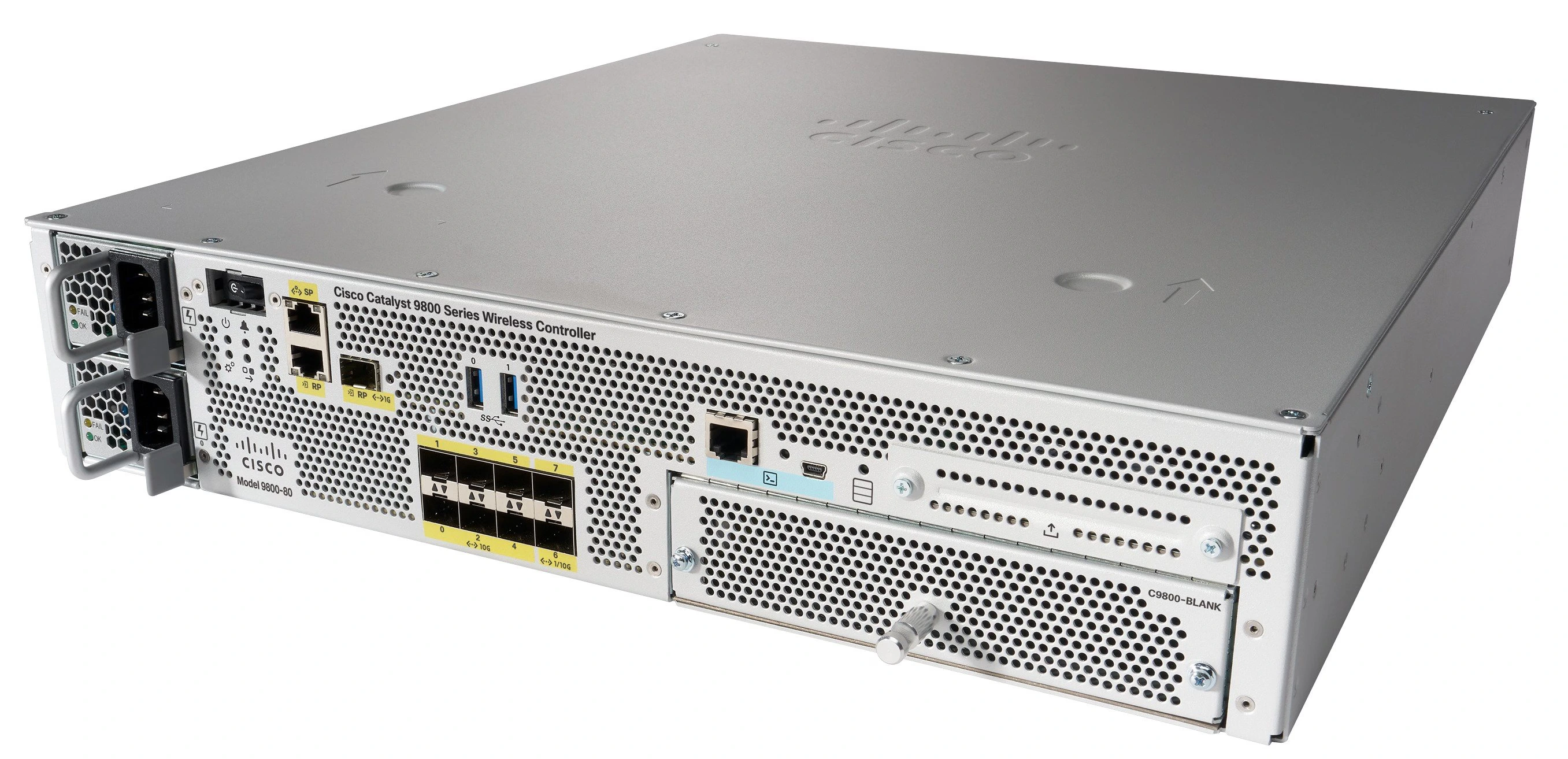

Cisco Part Number: C9800-80-K9 is a Cisco Catalyst 9800-80 Wireless Controller

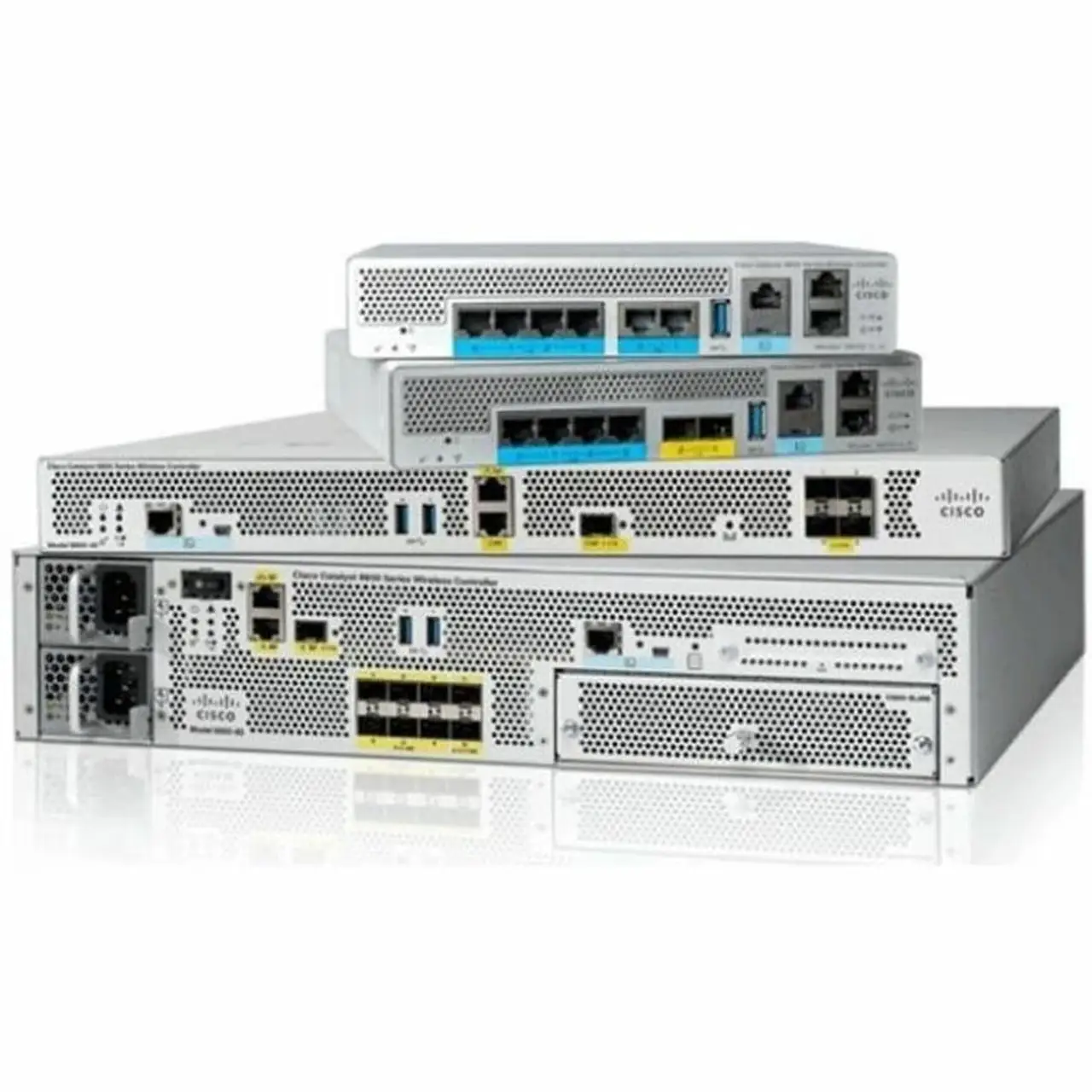

The Cisco Catalyst 9800 Series Wireless Controllers are purpose-built for intent-based networking and Cisco DNA. They run on Cisco IOS XE and seamlessly integrate the outstanding RF capabilities of Cisco Aironet access points, delivering a top-notch wireless solution for your organization's evolving needs.

This series is constructed upon an open and programmable architecture, featuring built-in security, streaming telemetry, and advanced analytics.

Based on three key pillars of network excellence—always on, secure, and deployed anywhere—the Cisco Catalyst 9800 Series strengthens your network by providing unparalleled wireless performance without sacrificing security or flexibility. This not only ensures a superior wireless experience but also saves both time and resources.

Overview of Cisco Catalyst 9800-80 Wireless Controller

The Cisco Catalyst C9800-80-K9 Wireless Controller offers the following features:

  • Memory: Supports up to 64 GB of DDR4 error-correcting code-protected memory, providing single-bit error correction and multi-bit error detection.

  • Forwarding Capacity: Equipped with a fixed forwarding processor capable of handling up to 100 Gbps sustained forwarding data traffic through the chassis.

  • Security Processing: Supports up to 30 Gbps of security and crypto processing through a dedicated security processor.

  • Console Ports: Includes RJ-45 console ports and a mini USB console port for management and configuration.

  • Storage: Features 32 GB of internal bootflash storage and an embedded USB (eUSB) flash module providing 32 GB of nonvolatile Flash storage.

  • USB Ports: Offers two USB 3.0 ports that are backward compatible with USB 2.0 for additional connectivity.

  • Ethernet Port: Provides one copper Ethernet 10/100/1000 Mbps network management port.

  • SATA Hard Disk: Supports a SATA hard disk for expanded storage capabilities.

  • Interfaces: Comes with eight built-in 10 GE SFP+ interfaces for high-speed connectivity.

  • Port Flexibility: Te0/0/6 and Te0/0/7 ports support 10 GE and 1 GE SFP+ interfaces.

  • Ethernet Port Adapter (EPA) Bay: Includes one Ethernet Port Adapter (EPA) bay for added flexibility in network configuration.

  • Network Clocking: Supports Stratum 3E network clocking per GR-1244-CORE, using 1 GE, 10 GE, or EPA interfaces as timing sources.

  • LED Indicators: Features LED indicators for Ethernet and console status, as well as visual system state indications.

  • Management and Monitoring: Provides command-line interface (CLI), alarm, network management, logging, statistics aggregation, and on-board failure logging (OBFL).

  • Chassis Management: Includes environmental chassis management capabilities.

  • Memory Management: Incorporates 80 Mb ternary content-addressable memory (TCAM) for efficient memory management.

  • Field-Replaceable Units: Designed with field-replaceable units (FRU) for ease of maintenance and upgrades.

These features make the Cisco Catalyst C9800-80-K9 Wireless Controller a robust and versatile solution for managing wireless networks with high performance, security, and flexibility.
