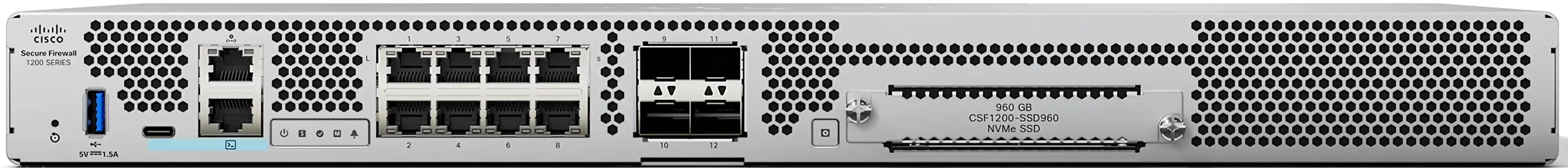

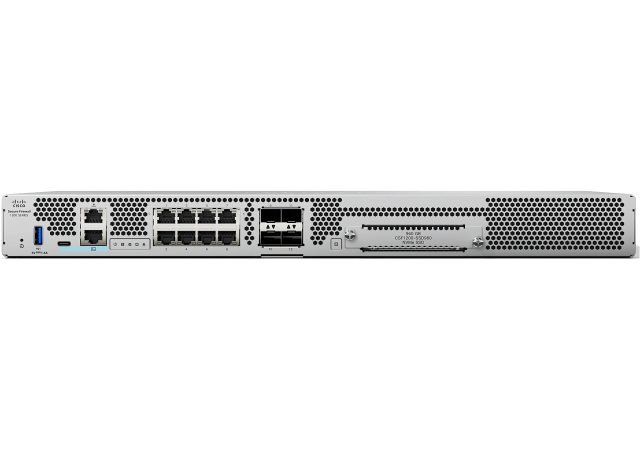

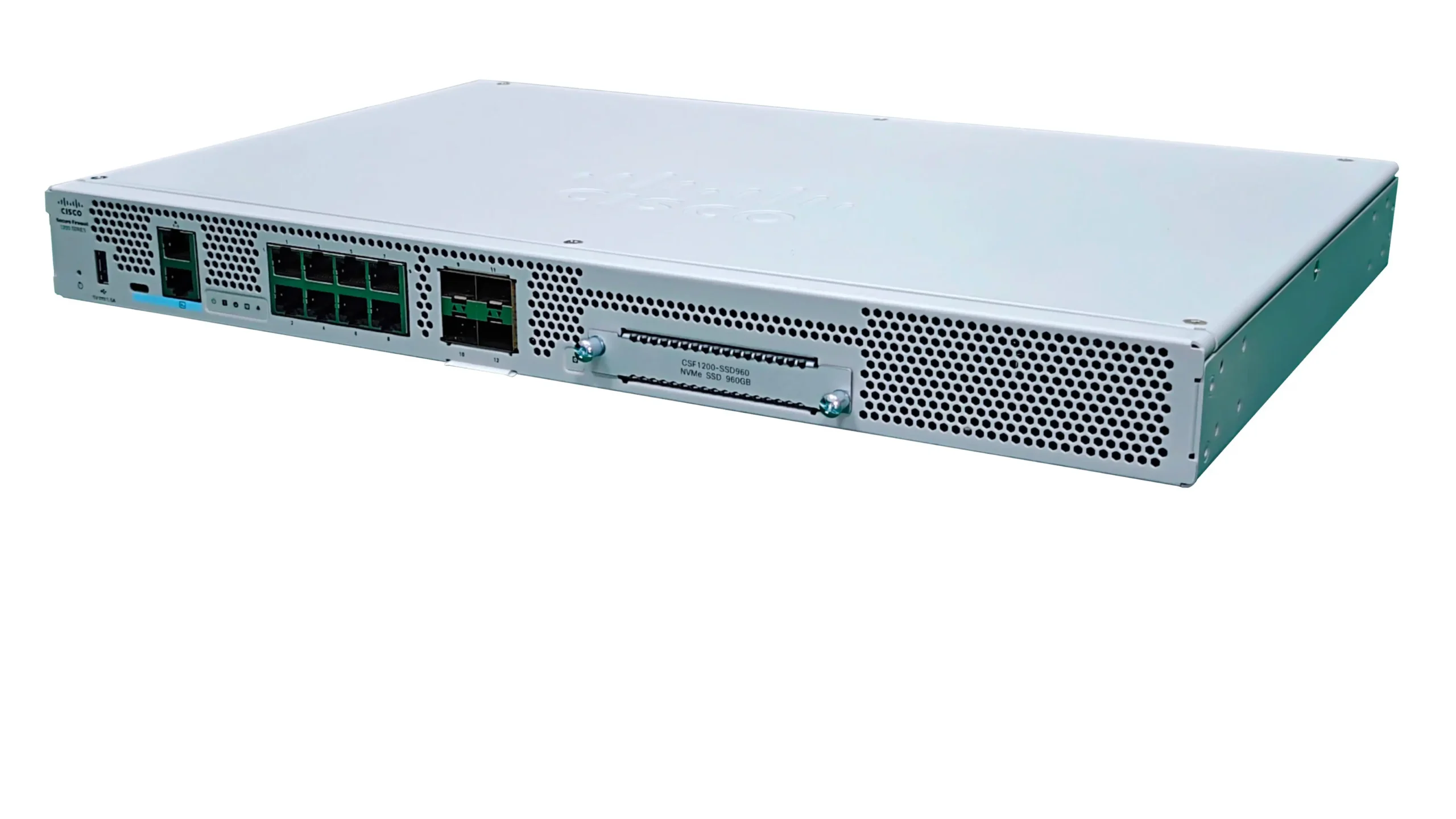

Cisco Part Number: CSF1230-TD-K9 is a Secure Firewall 1230 security appliance with Threat Defense software
The Cisco Secure Firewall 1200 Series is a security appliance designed to protect and connect distributed enterprises. It enhances security by extending enterprise-level policies and threat inspection to branch offices and smaller locations. Powered by a high-performance network processor, the 1200 Series ensures strong threat defense and policy enforcement without sacrificing user experience, making it ideal for secure, scalable network protection in remote and smaller site deployments.
The 1200 Series firewalls are available with two software options: Cisco Adaptive Security Appliance (ASA) or Cisco Secure Firewall Threat Defense (FTD).
1200 Series Models Summary
|
Model |
Form factor |
Firewall Throughput |
Threat Defense |
IPS Throughput |
Interfaces |
|---|---|---|---|---|---|
|
1230 |
Desktop/ Compact |
13 Gbps |
9.0 Gbps |
13 Gbps |
8x 1000BASE-T Gigabit Ethernet (10/100/1000 Mbps) 4x SFP+ 1/10Gbps Ethernet |
Performance - 1200 Series with Threat Defense software
|
Metric |
1210 |
1220 |
1230 |
1240 |
1250 |
|
Throughput: FW + AVC (1024B) |
6.0 Gbps |
9.0 Gbps |
13 Gbps |
18 Gbps |
24 Gbps |
|
Throughput: Next-Generation Intrusion Prevention System (NGIPS) (1024B) |
6.0 Gbps |
9.0 Gbps |
11 Gbps |
15 Gbps |
22 Gbps |
|
Throughput: FW + AVC + IPS (1024B) |
6.0 Gbps |
9.0 Gbps |
9.0 Gbps |
12 Gbps |
18 Gbps |
|
IPSec VPN Throughput |
5.0 Gbps |
10 Gbps |
13 Gbps |
18 Gbps |
22 Gbps |
|
TLS decryption |
1.0 Gbps |
1.5 Gbps |
2.5 Gbps |
3.2 Gbps |
4.1 Gbps |
|
Maximum new connections per second, with AVC |
35K |
50K |
50K |
70K |
100K |
