BRAND: Cisco

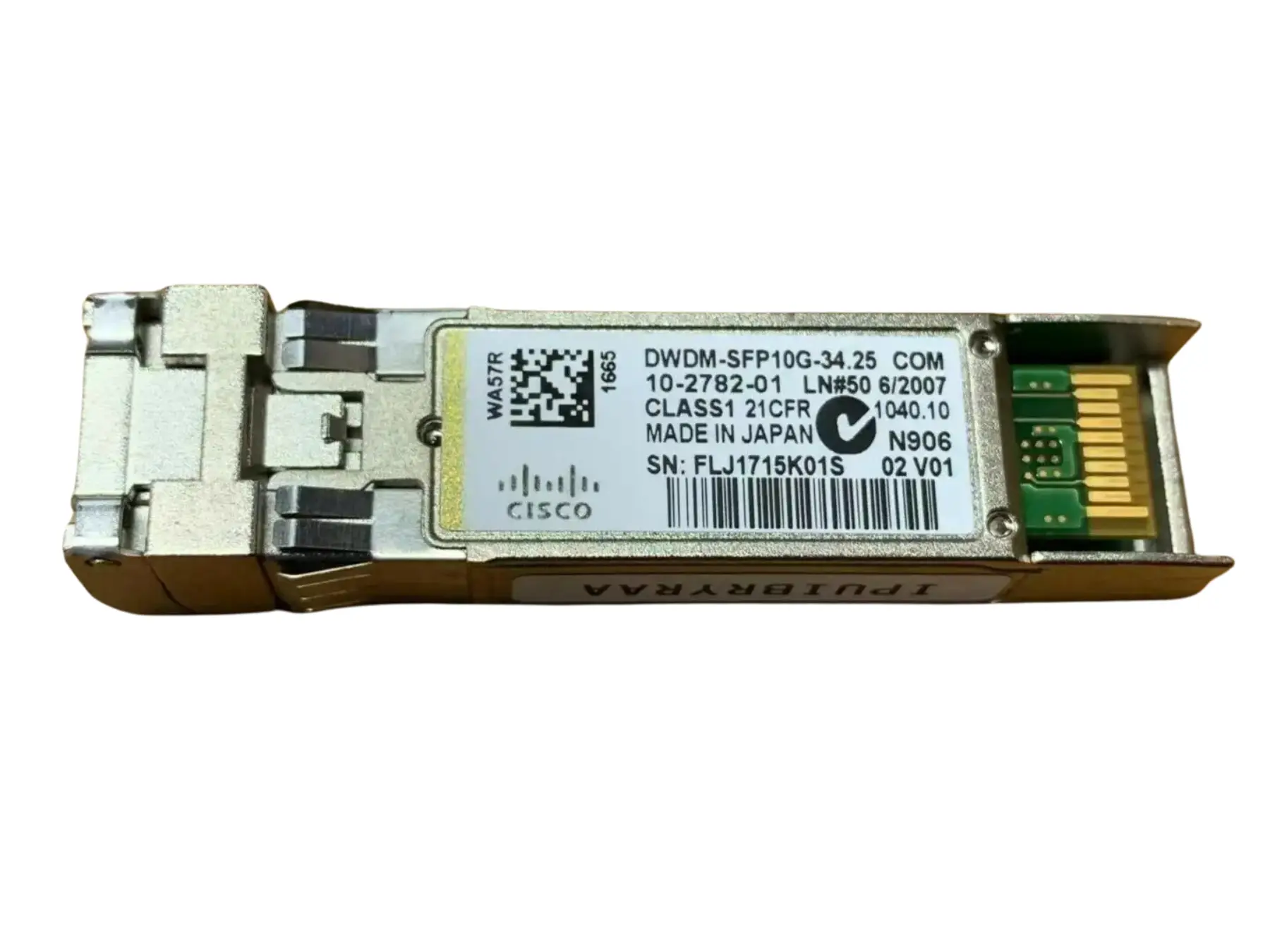

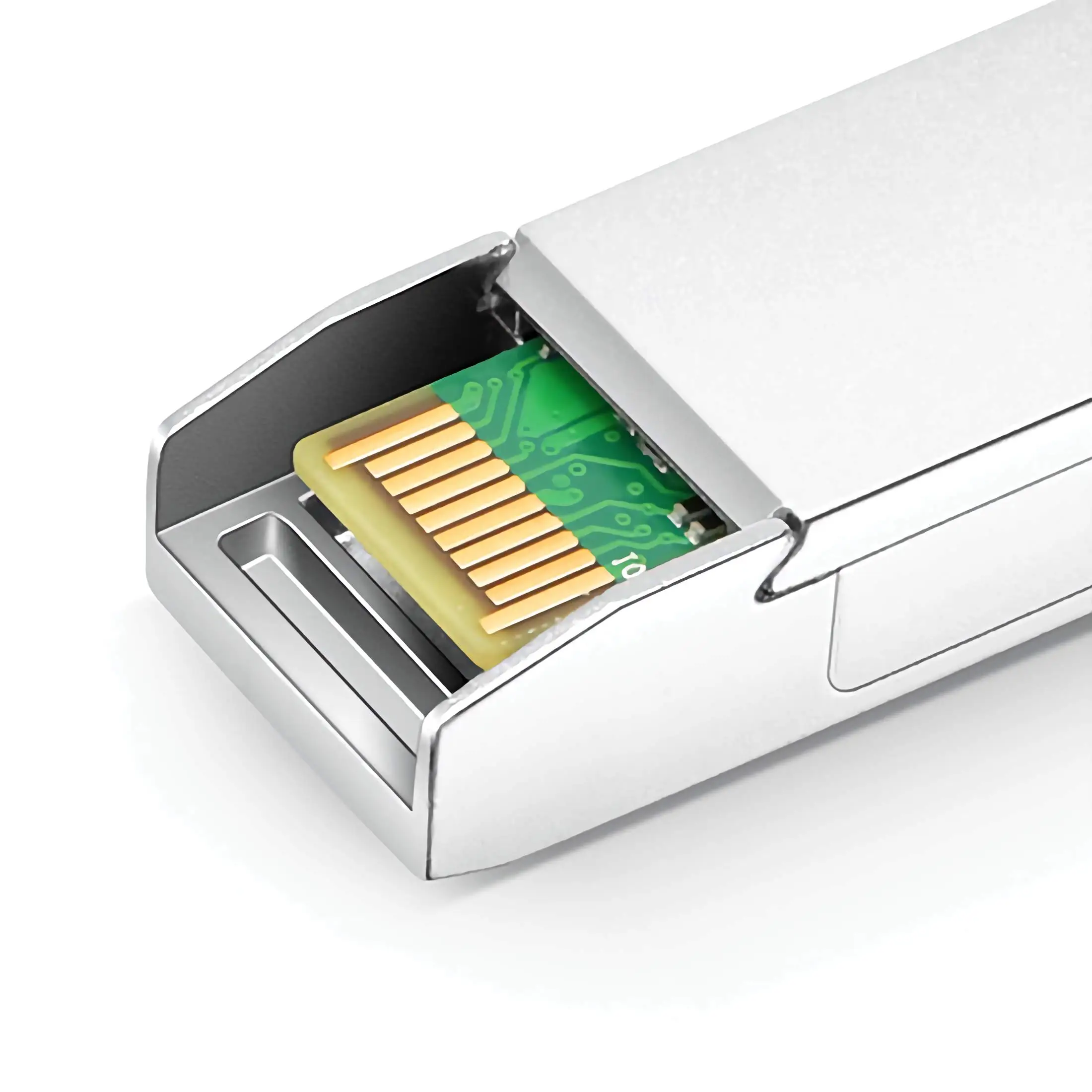

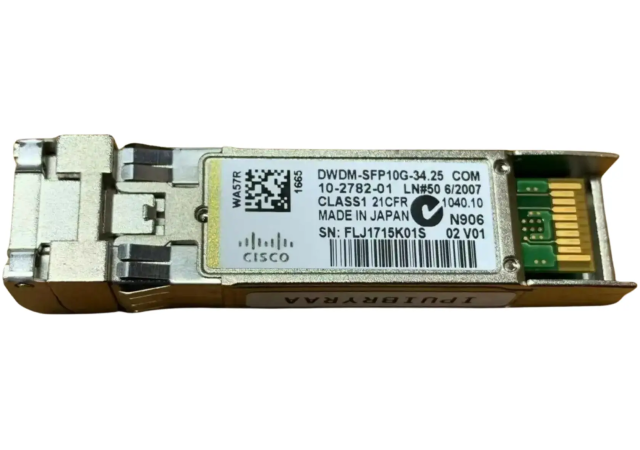

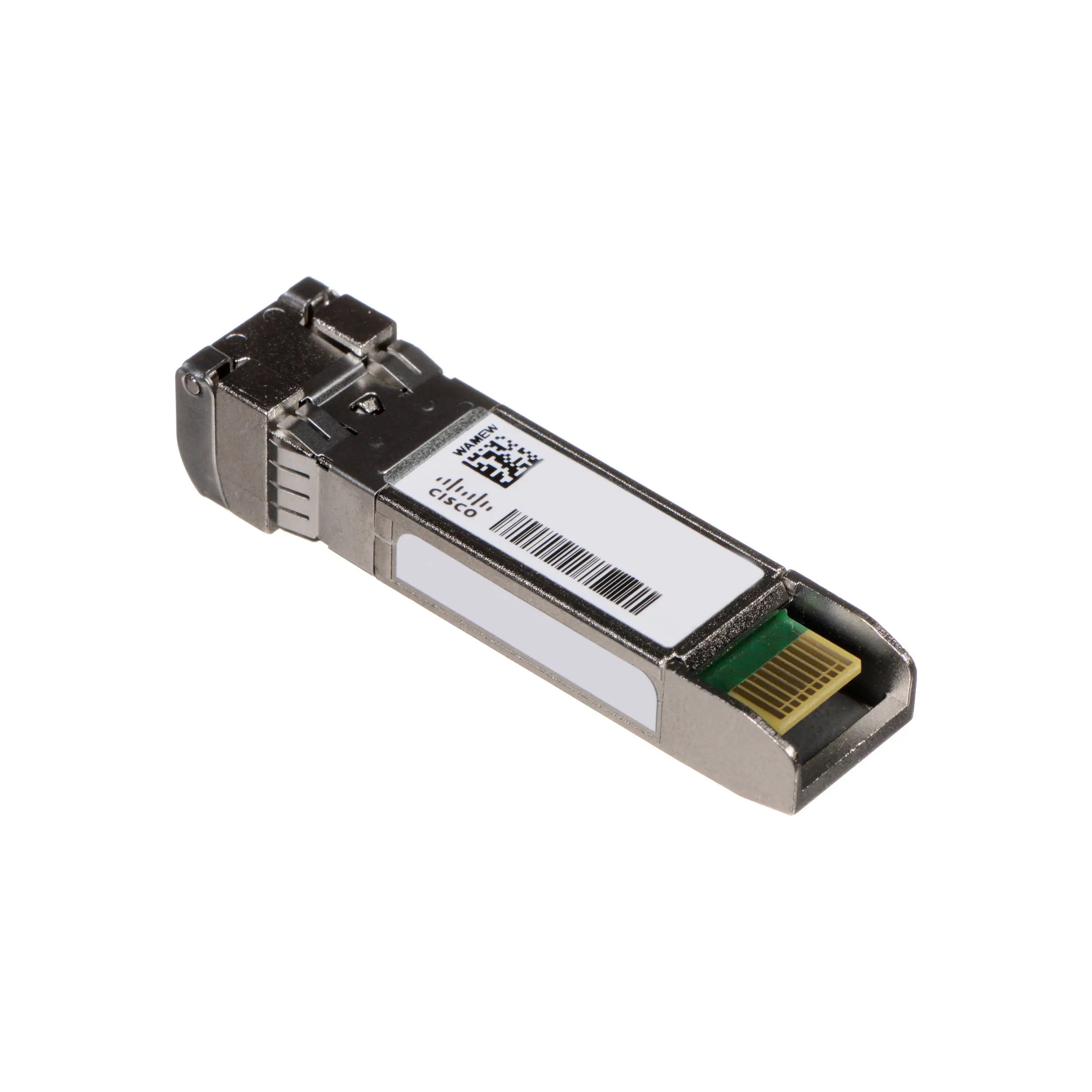

Cisco DWDM-SFP10G-34.25= - DWDM SFP+ Transceiver

MPN: DWDM-SFP10G-34.25=
£11,708.73
£14,050.48 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

Cisco Part Number: DWDM-SFP10G-34.25= is a Cisco 10GBASE-DWDM 1534.25 nm SFP+ (100-GHz ITU grid) transceiver

The Cisco 10GBASE Dense Wavelength-Division Multiplexing (DWDM) SFP+ Modules allow enterprises and service providers to provide scalable and easy-to-deploy 10-Gigabit LAN, WAN, and optical transport network (OTN) services in their networks.

Main features of the Cisco DWDM Small Form-Factor Pluggable Plus (SFP+) module include:
• The Cisco DWDM SFP+ supports 10-Gigabit data rates from 9.9G to 11.1G (LAN, WAN, and OTU2/OTU2e).
• The hot-swappable input/output device plugs into an Ethernet SFP+ port of a Cisco switch or router to link the port with the network.
• The Cisco DWDM SFP+ supports the Cisco quality identification (ID) feature, which enables a Cisco switch or router to identify whether or not the module is an SFP+ module certified and tested by Cisco.
• The standard Cisco DWDM SFP+ supports 40 non-tunable ITU 100-GHz wavelengths.
• Cisco DWDM SFP+ modules support digital optical monitoring capability.

The Cisco DWDM SFP+ modules are supported across a variety of Cisco switches, routers, and optical transport devices.

Product Number

Description

ITU Channel

DWDM-SFP10G-34.25=

10GBASE-DWDM 1534.25 nm SFP+ (100-GHz ITU grid)

54



Dimensions: (H x W x D): 8.5 x 13.4 x 56.5mm.

Cisco SFP+ modules typically weigh 75 grams or less.

Environmental Conditions and Power Requirements:
• Commercial operational temperature range (COM): 0 to 70°C (32 to 158°F)
• Storage temperature range: -40 to 85°C (-40 to 185°F)
• The maximum power consumption per Cisco SFP+ module is 1.5W
