BRAND: Cisco

Cisco FPR3K-XNM-2X100G= - Network Module

MPN: FPR3K-XNM-2X100G
Request a Quote
OUT OF STOCK
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
[email protected] 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Our Services

Cisco Part Number: FPR3K-XNM-2X100G= is a Cisco SECURE FIREWALL 3100 2-port 100G QSFP28 Network Module, spare

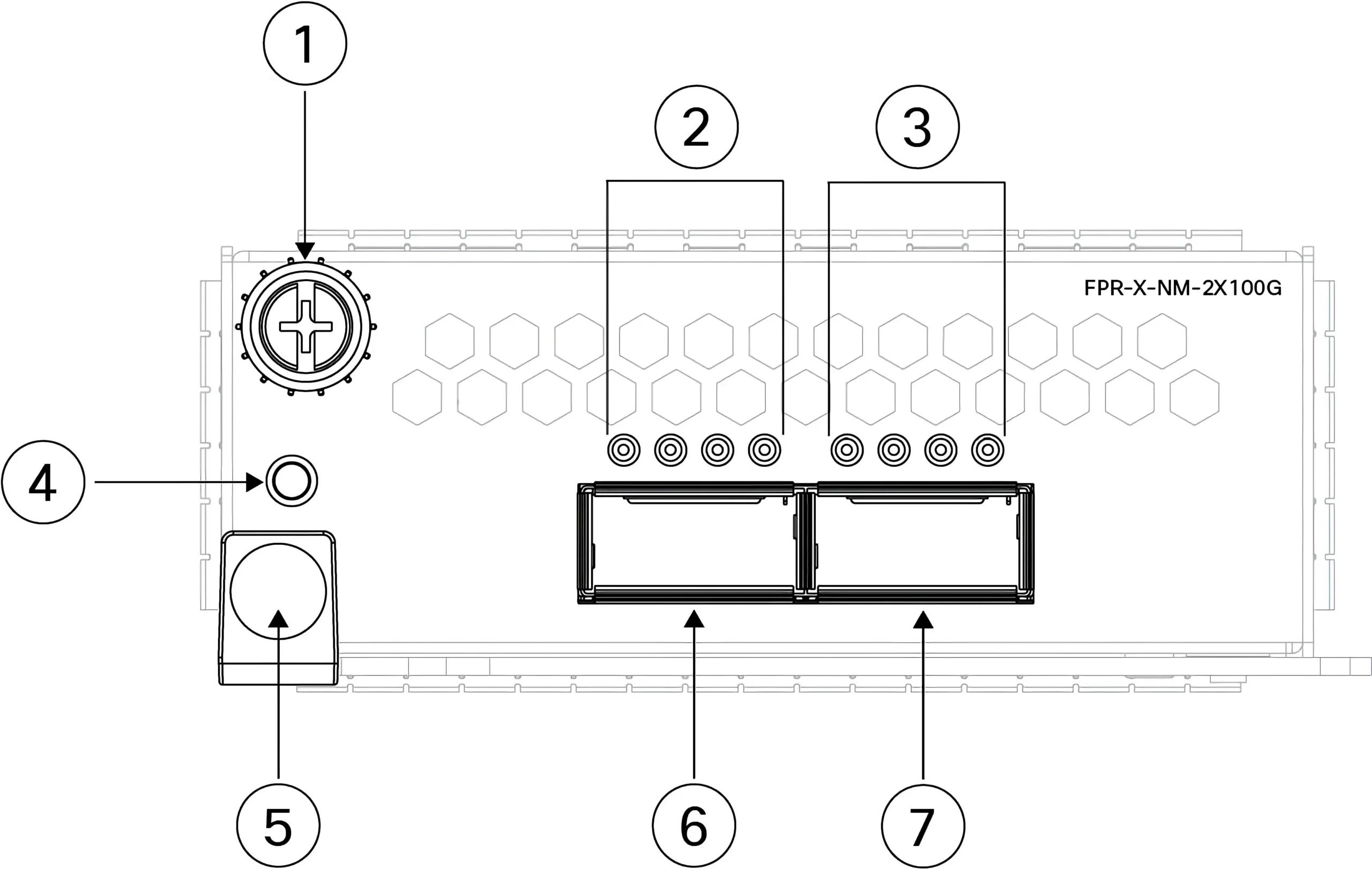

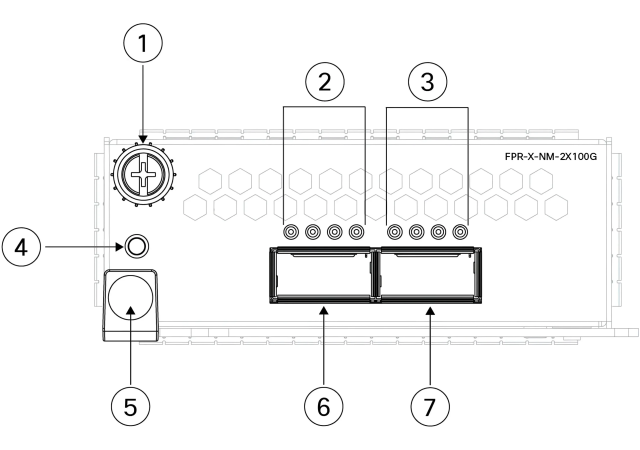

The Secure Firewall 3100 chassis features one NM-2 slot for an optional network module, enabling additional port or interface configurations. The FPR-X-NM-2X100G= module, supported on models 3130 and 3140, offers two QSFP/QSFP28 ports for 40/100-Gb full-duplex traffic, with a maximum bandwidth of 200 Gb. Ports, labeled E2/1 and E2/2, can be split into four 10-Gb or four 25-Gb connections using breakout cables. Hot-swapping with identical modules is supported, but switching to a different module type requires a chassis reboot for recognition. Note that FPR3K-XNM-2X100G= module isn’t supported on models 3105, 3110, and 3120.
