Cisco Part Number: FPR4K-XNM-4X200G is a Cisco Secure Firewall 4200 4X200G Network Module
The Secure Firewall 4200 chassis includes two network module slots, labeled NM-2 and NM-3, positioned from left to right on the front panel. These network modules are optional, removable I/O modules that add either extra ports or alternative interface types. The modules are designed to plug into the front panel of the chassis, providing easy access for upgrades or changes. For precise locations of these slots, refer to the Front Panel section.

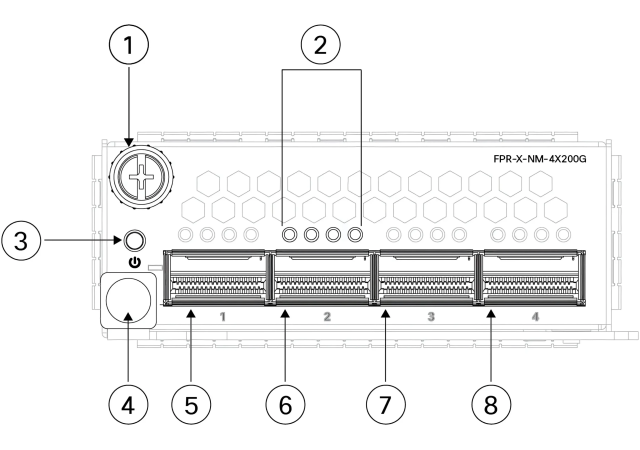

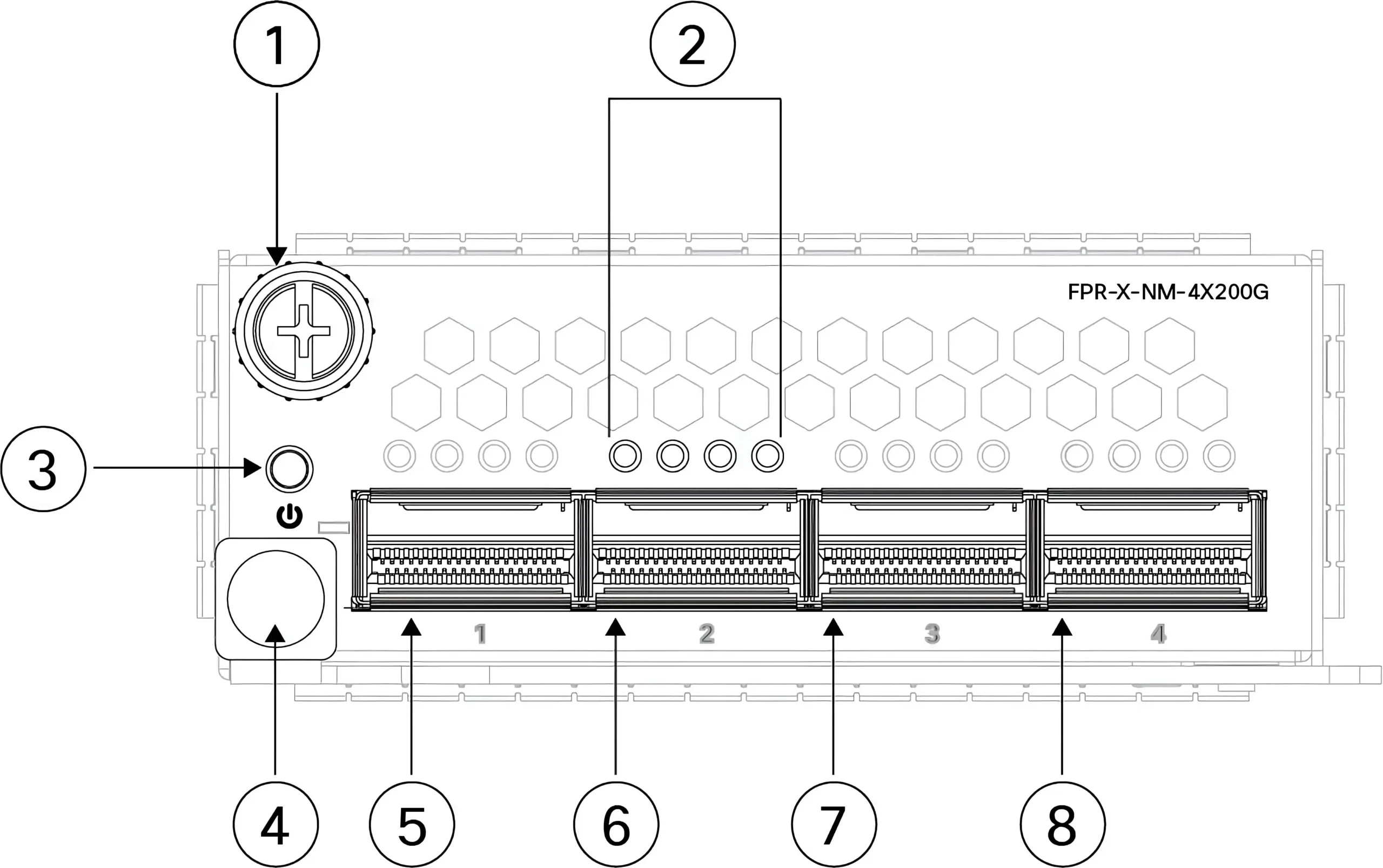

The FPR4K-XNM-4X200G network module supports 40, 100, and 200-Gb Ethernet operation, offering full-duplex traffic per port. This module includes four QSFP+ ports, configured to handle high-speed data transfer. The ports are sequentially labeled from left to right, designated as Ethernet 2/1 or 3/1 through Ethernet 2/4 or 3/4, allowing for efficient network management and easy identification of each port.
The Cisco Secure Firewall 4200 Series is an advanced firewall solution tailored to fulfill the security needs of large enterprises, data centers, and service providers. It comes in three distinct performance models, providing a variety of options while ensuring exceptional threat protection within a compact 1 RU form factor.
