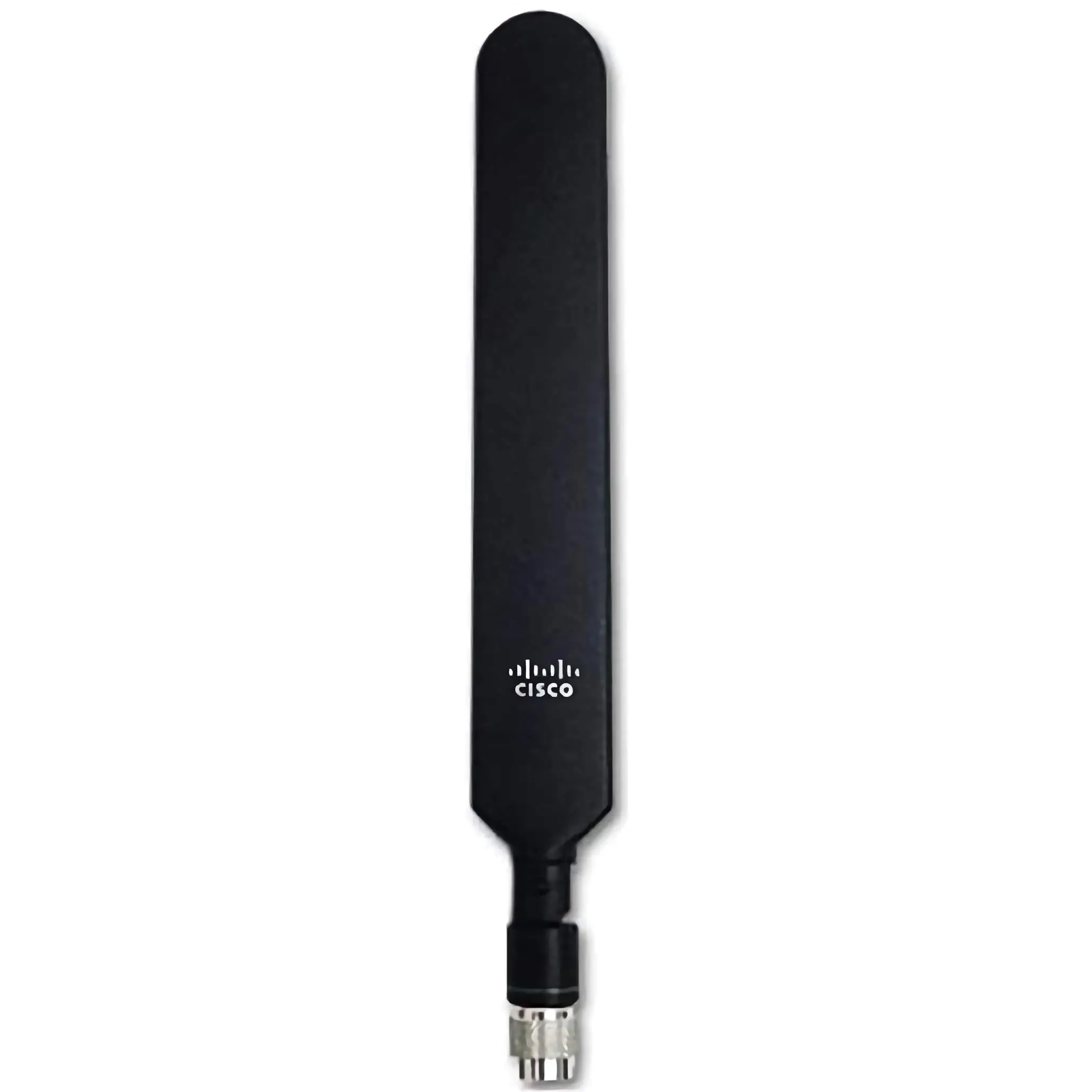

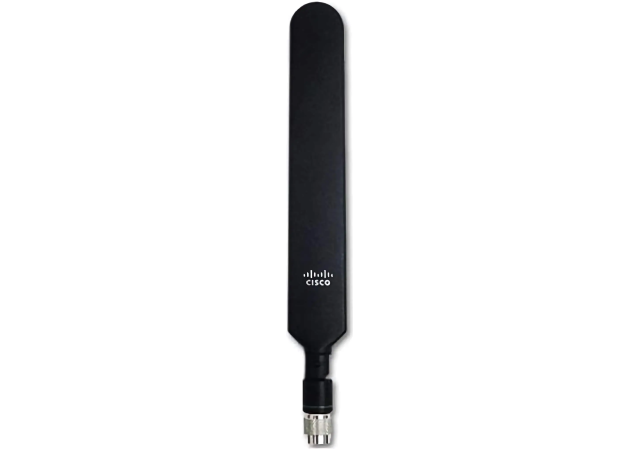

Cisco LTE-ANTM2-SMA-D= - 4G LTE dipole antenna

Cisco Part Number: LTE-ANTM2-SMA-D= is a Cisco 4G LTE dipole antenna 698-960, 1448-1511, 1710-2690 MHz, SMA

The LTE-ANTM2-SMA-D is an omnidirectional dipole antenna designed for indoor use with Cisco 4G LTE and LTE Advanced (LTEA) Service Routers (ISRs) and pluggable modules featuring an SMA connector.

This antenna is distinguished by a dual green band, signifying its compatibility with Cisco LTEA routers and modules.

Key features of the LTE-ANTM2-SMA-D antenna include:

• Frequency Support: Operates across 617–960 MHz, 1400–1700 MHz, 1710–2690 MHz, 3400–3900 MHz, and 5150–6000 MHz.

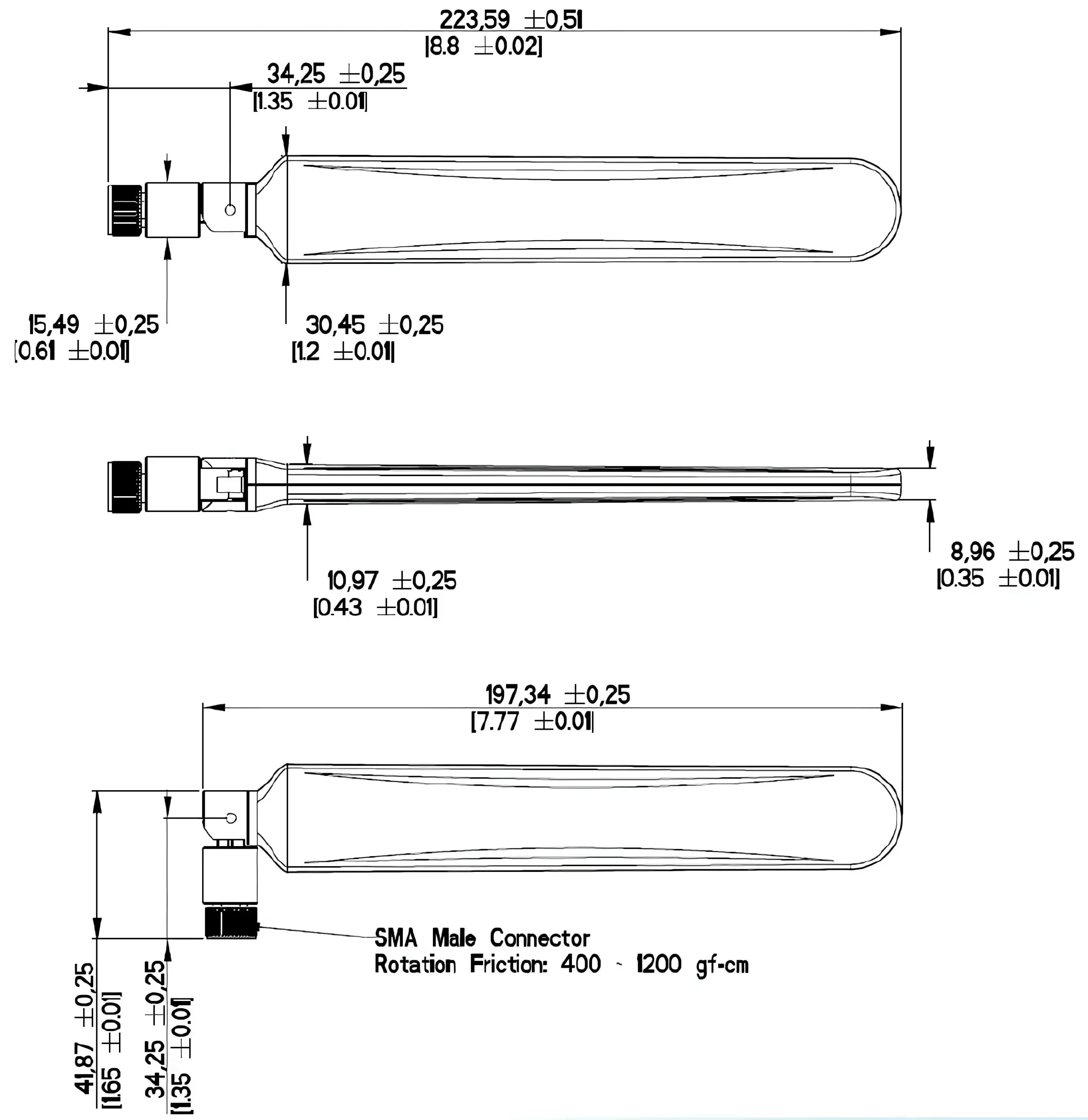

• Articulating Joint: Offers three adjustable positions—0°, 45°, and 90°—for enhanced flexibility.
• SMA Connector: Equipped with a male SubMiniature A connector for direct mounting on any Cisco-supported router or pluggable module with an SMA interface.
• Enhanced Design: Features rotational frictional torque on the SMA connector to ensure a secure connection and minimize the risk of disconnection. Additionally, the design is more ergonomic compared to traditional SMA hex nut designs.

To maximize performance, it is strongly recommended to use two antennas to fully leverage MIMO technology on all Cisco cellular routers that support MIMO (4G LTE and later versions).
