BRAND: Cisco

Cisco N9K-SUP-A+ - Supervisor Engine Module

£8,629.73 Incl. VAT
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you 020 3880 8840 Mon-Fri: 8AM-7PM
Tech Overview
Links & Documents

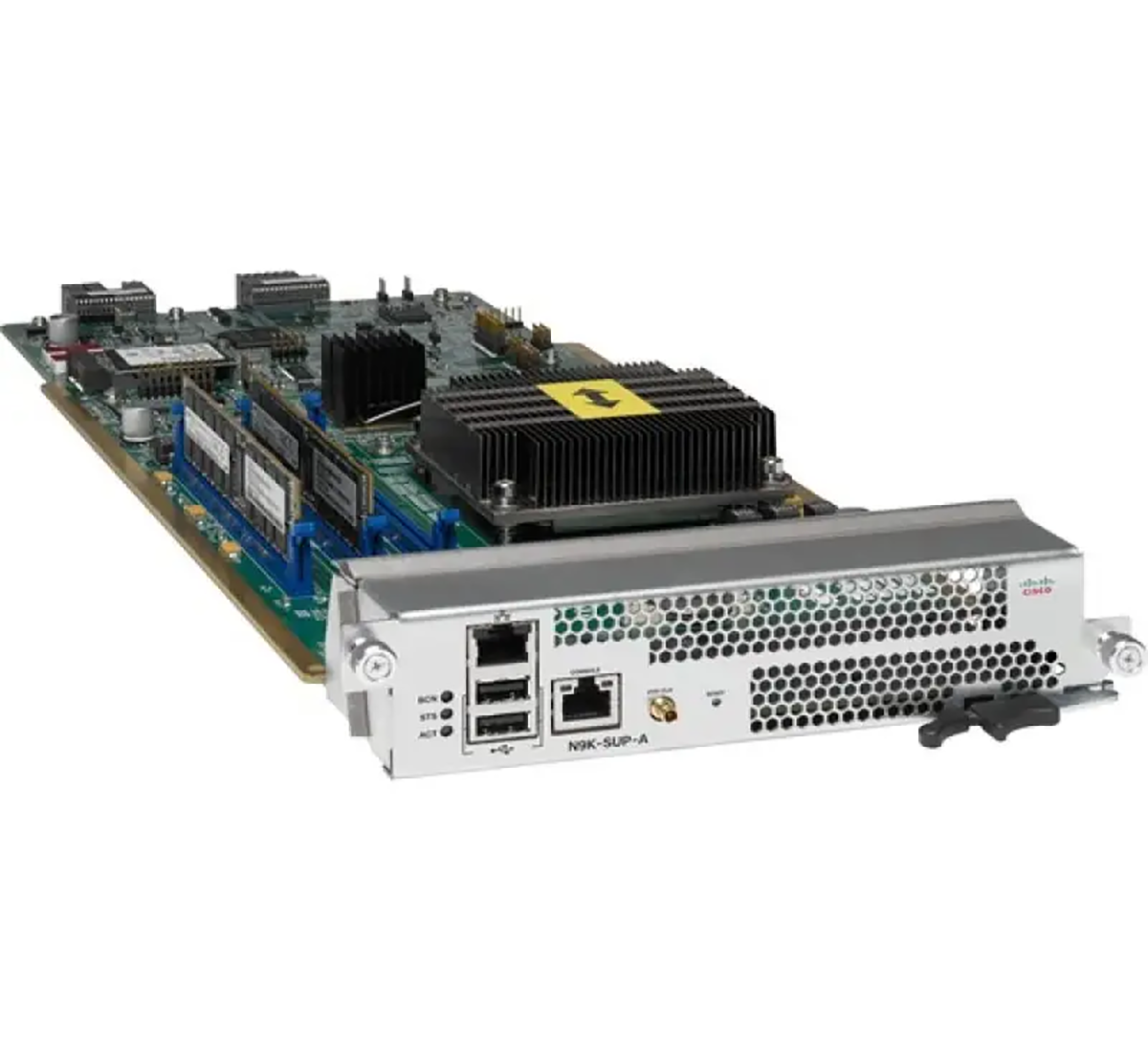

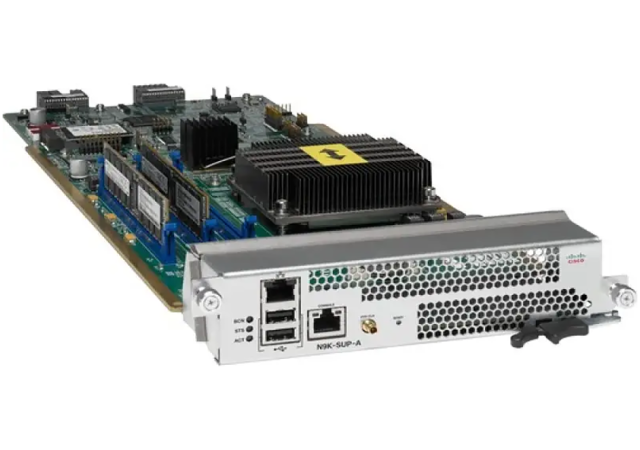

Cisco Part Number: N9K-SUP-A+ is a Cisco Nexus 9500 4-Core/8-Thread Supervisor

The Cisco Nexus 9000 Series Switches operate in two distinct modes: Cisco Application Centric Infrastructure (Cisco ACI™) and Cisco NX-OS. In Cisco ACI mode, these switches offer a comprehensive, fully automated, policy-based architecture designed for the creation and management of data center fabrics. Conversely, in Cisco NX-OS mode, these switches provide the flexibility to leverage foundational layer 2/3 technologies, along with contemporary features like VXLAN. This mode also supports a Border Gateway Protocol‒Ethernet VPN (BGP-EVPN) control plane, Segment routing, Multiprotocol Label Switching (MPLS), and automation facilitated through NX-APIs.

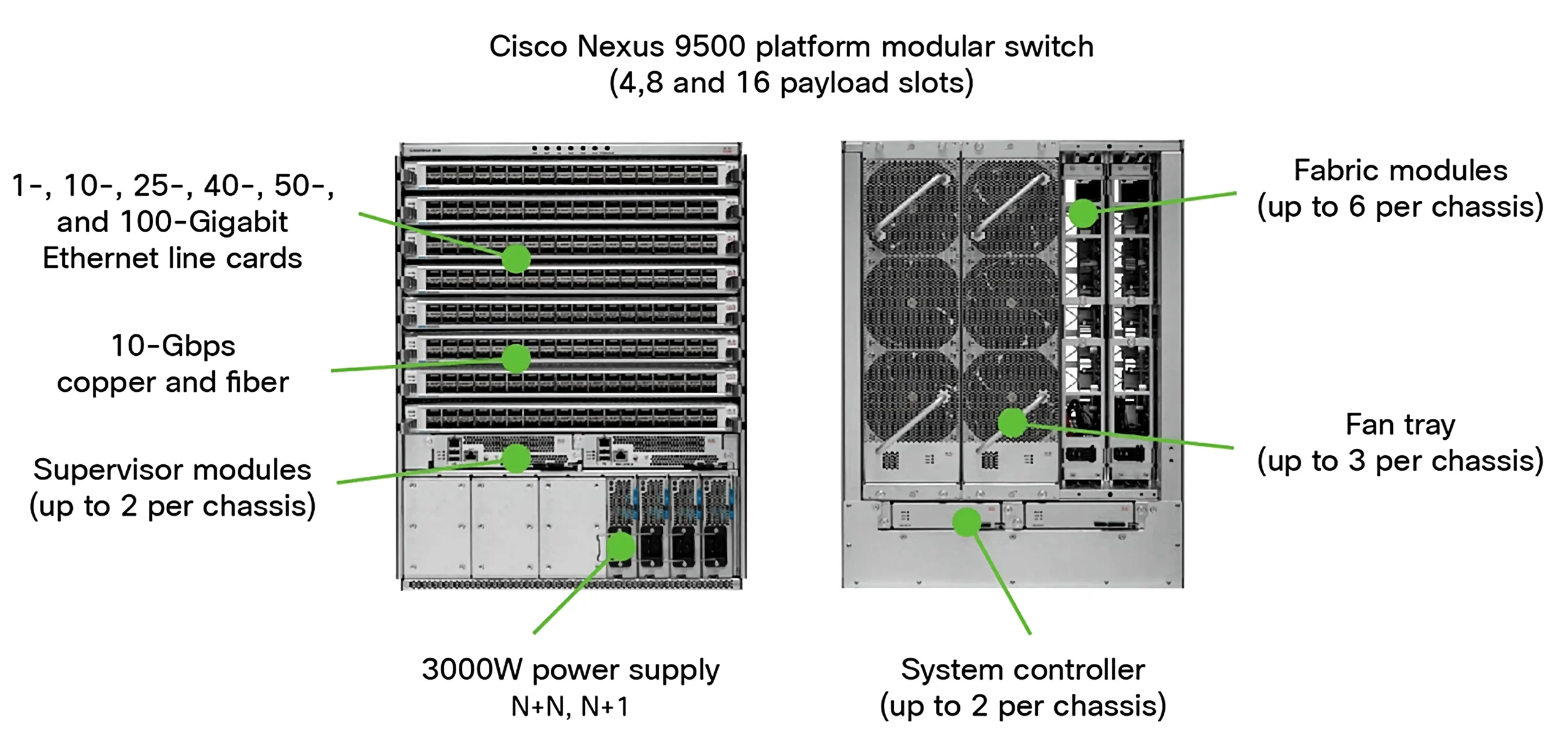

The Cisco Nexus 9000 Series Switches encompass the Nexus 9500 Series modular switches and the Nexus 9200/9300 Series fixed switches.

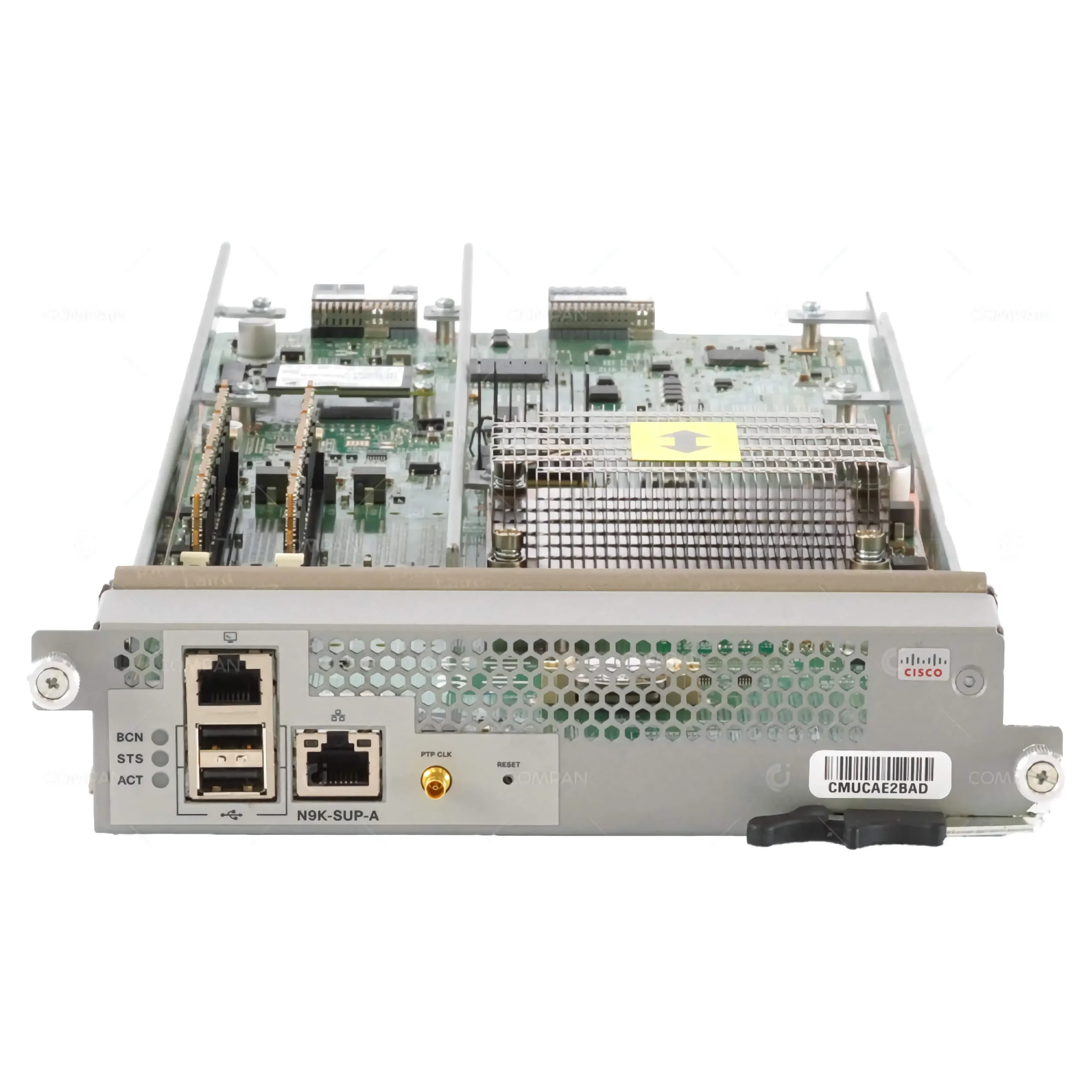

Switch operations are overseen by a set of redundant supervisor modules employing an active-standby model with state synchronization. These supervisors are designed to accept an external clock and facilitate management through various ports, including two USB ports, a serial port, and a 10/100/1000-Mbps Ethernet port. Compatibility is assured for both Cisco ACI and NX-OS deployments across all supervisor variants. It is essential for redundant supervisors within a chassis to be of the same type for optimal performance.

Cisco Nexus 9500 series supervisor modules specifications

Processor 4 core, 4 thread 1.8GHz x86 4 core, 8 thread 1.8GHz x86 6 core, 12 thread 2.2GHz x86 6 core, 12 thread 1.9GHz X86
DRAM 16GB 16GB 24GB 32GB
SSD 64GB 64GB 256GB 256GB
Weight 4.84 lb (2.2 kg) 5.2 lb (2.37 kg) 6.00 lb (2.72 kg) 5.3 lb (2.39 kg)
Typical power 69 W 69 W 75 W 75 W
Maximum power 80 W 80 W 80 W 90 W
MTBF hours 312,070 414,240 292,110 421,040
Hot swappable Yes
Airflow Port-side intake
