BRAND: Cisco MPN: ANT-4G-OMNI-OUT-N

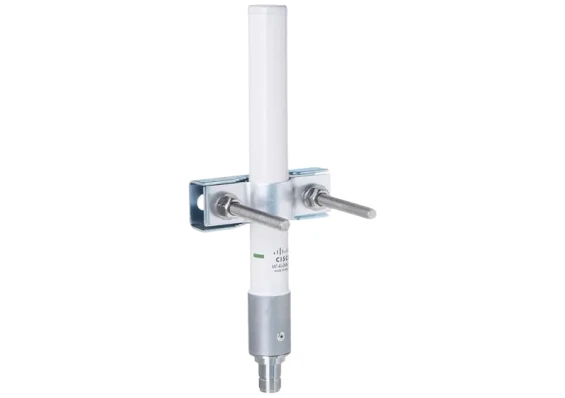

Cisco ANT-4G-OMNI-OUT-N - Antenna

AVAILABLE TO ORDER
£235.68
£282.82 Incl. VAT
FINANCE AVAILABLE CHOOSE FROM VARIOUS OPTIONS Paypal Visa Mastercard American Express
INSTALLATION AVAILABLE TALK TO OUR EXPERTS FOR MORE DETAILS
NEXT DAY DELIVERY
Description
Tech Overview
Our Services
Links & Documents

Cisco Part Number: ANT-4G-OMNI-OUT-N is a Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular

The Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular antenna is designed to cover domestic LTE700/Cellular/PCS/AWS/MDS, WiMAX 2300/2500, and GSM900/GSM1800/UMTS/CBRS/LTE2600 bands. This document provides the antenna specifications and mounting instructions.

Technical Specifications

The Outdoor Omnidirectional antenna features the following:

  • UV stable radome

  • Mast mount bracket

  • Multiple frequency ranges.



Specification

Description

Frequency ranges

698 to 862 MHz

824 to 894MHz

880 to 960MHz

1710 to 1880Mhz

1850 to 1990MHz

1920 to 2170MHz

2300 to 2400MHz

2400 to 2500MHz

2500 to 2690MHz

3400 to 3800 MHz

Peak gain (dBi)

1.5 dBi (698 to 960MHz)

3.5 dBi (1710 to 2690MHz)

5.2 dBi (3400 to 3800MHz)

Efficiency

Antennas were designed and tested to high RF efficiency in all supported cellular bands. Detailed technical specifications can be obtained through your Cisco authorized partner or Cisco account representative.

Polarization

Vertical, Omnidirectional Radiation Pattern

Normal impedance

50 ohms

VSWR

< 2.5:1 (698 to 960 MHz)

< 2:1 (1710 to 2690 MHz)

< 2.5:1 (3400 to 3800 MHz)

Power

20 Watts
