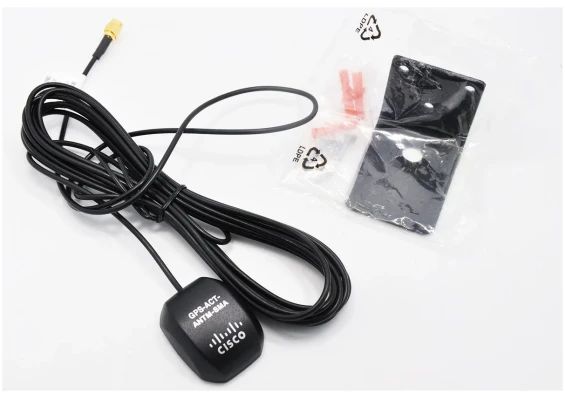

Cisco GPS-ACT-ANTM-SMA= - GPS Antenna

Cisco Part Number: GPS-ACT-ANTM-SMA= is a Cisco 4G LTE indoor active GPS antenna with 17ft cable

Cisco GPS-ACT-ANTM-SMA=: Indoor/Outdoor Active GPS Antenna

The Cisco GPS-ACT-ANTM-SMA= is a high-performance active GPS antenna designed for both indoor and outdoor applications. It provides reliable GPS signal reception for Cisco Integrated Services Routers (ISRs) and Enhanced High-Speed WAN Interface Cards (EHWICs), ensuring accurate location tracking and timing synchronization.

Key Features

• Wide Frequency Range: Operates between 1574.42 MHz and 1576.42 MHz, suitable for GPS applications.
• High Gain: Offers a maximum peak gain of 4 dBi, enhancing signal reception quality.
• Low Noise Figure: Features a typical noise figure of 1.5 dB at 25°C, ensuring clear signal amplification.
• Robust Design: Built to withstand harsh environments with an operating temperature range of –40° to 85°C and shock resistance up to 50G.
• Versatile Mounting Options: Includes a 17-foot (5.18 meters) cable and supports both bracket and magnetic mounting for flexible installation.
• Standard Connector: Equipped with an SMA male connector, compatible with various Cisco devices.

Technical Specifications

Installation Guidelines

• Ensure the antenna has a clear view of the sky for optimal GPS signal reception.
• Avoid placing the antenna near large metal objects or sources of RF interference.
• For indoor installations, position the antenna near a window to maximize signal strength.
• Use the provided bracket and screws for secure wall mounting, or utilize the magnetic base for temporary setups.

The Cisco GPS-ACT-ANTM-SMA= antenna is an essential component for organizations requiring precise GPS data for network synchronization and location-based services. Its durable construction and flexible installation options make it suitable for a wide range of deployment scenarios.
