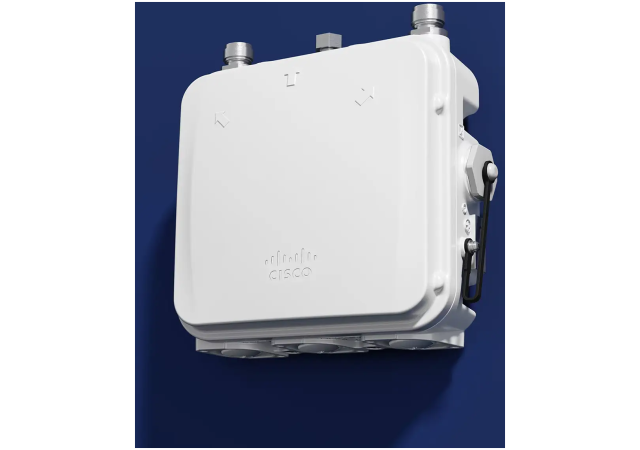

Cisco Part Number: IW9165DH-E-AP is a Cisco Industrial Wireless Access Point 9165D, 11ax 6E, 2 RF ports, E domain, AP software
The Cisco Catalyst IW9165DH is part of the Catalyst IW9165 Series, which includes rugged and heavy-duty industrial wireless access points designed for mission-critical applications and reliable wireless connectivity in industrial environments.
Key Features of IW9165DH:
- 1x 100M/1000M/2.5G Multigigabit Ethernet (RJ45)/M12 X-code autosensing PoE+ in (802.3af/at), Cisco UPOE in
- 1x 100M/1000M/1G (RJ45)
- Dual-radio architecture
- 5-GHz 2x2 radio: 20, 40, and 80 MHz channels
- 5/6-GHz 2x2 radio: 20, 40, 80, and 160 MHz channels (6 GHz availability subject to country approvals)
- External antenna—2 x N-type
- Integrated antenna—Built-in directional antennas
- Peak gain 15 dBi, internal antenna, dual polarization, azimuth beamwidth 30 deg, elevation beamwidth 30 deg, frequency: 4900 to 5925 MHz
- BLE antenna gain: 5.5 dBi max, internal antenna, linear polarization, omnidirectional
- 1x TNC GNSS antenna port
- Management console port (RJ45)
- Dual power input—PoE-in 802.3af, 802.3at (PoE+), and 24-48VDC
- Dual mounting options—Pole and wall mount
- IP67, heavy-duty design
- Multicolor system LED
- Reset button
Power and Interfaces:
- Supports 802.3af (PoE), 802.3at (PoE+), and DC power input (24 to 48 VDC).
- Includes management console port, multicolor system LED, reset button, and other industrial interfaces.
- The IW9165DH supports directional antennas with peak gain of 15 dBi and BLE antenna gain of 4 dBi.
- It is certified for use with antenna gains up to 15 dBi (5 GHz).
- The device is designed to meet industrial standards for shock, vibration, temperature, and electromagnetic compatibility.
For detailed specifications, regulatory domain support, and software versions, please refer to the Cisco Catalyst IW9165 Series Data Sheet.
