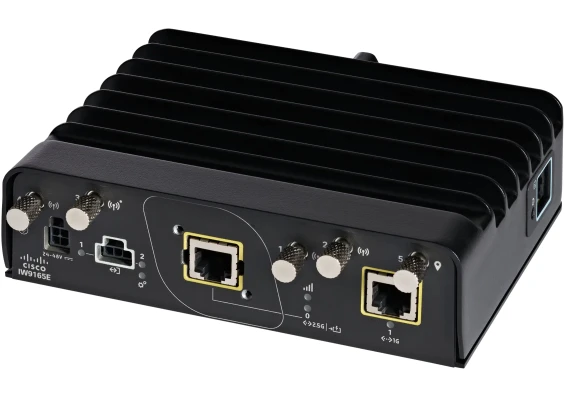

Cisco Part Number: IW9165E-E-AP is a Cisco Industrial Wireless 9165E Access Point, 11ax 6E, 4 RF ports, E domain, AP software
The Cisco Catalyst IW9165E Rugged Access Point and Wireless Client is a highly versatile industrial‑grade wireless device engineered to deliver ultra‑reliable connectivity in even the most demanding environments. Designed for integration with moving vehicles, machines, and fixed industrial assets, the IW9165E extends high‑performance wireless access where traditional cabling isn’t feasible or cost‑effective. Built on advanced Wi‑Fi 6/6E and Cisco Ultra‑Reliable Wireless Backhaul (URWB) technologies, the IW9165E supports multiple operating modes and flexible deployment models to serve mission‑critical applications.
Key Capabilities
- Multi‑mode Operation: Switch between Wi‑Fi AP, Workgroup Bridge (WGB), Universal WGB (uWGB), or URWB modes with a simple software update — no hardware changes needed.
- Dual‑Technology Support: Simultaneous support for high‑bandwidth Wi‑Fi 6/6E and ultra‑reliable URWB on a single platform enhances connectivity options.
- Compact Rugged Design: IP30‑rated enclosure engineered for harsh industrial settings, mounting flexibility, and low power consumption.
Wireless Features
- Wi‑Fi 6/6E Support: Advanced 802.11ax standard for increased throughput, capacity, and spectrum efficiency, including support for the 6 GHz band where permitted.
- Dual 2×2 Radios: Independent radios supporting 5 GHz and 5/6 GHz frequency bands with multiple channel widths for flexible deployment.
- Ultra‑Reliable Wireless Backhaul (URWB): Provides <10 ms latency, zero packet loss, and seamless handoffs — ideal for moving assets or high‑availability applications.
- Workgroup Bridge (WGB/uWGB): Enables the IW9165E to act as a Wi‑Fi client bridging wired devices into existing Cisco or third‑party wireless infrastructures.
Industrial‑Grade Hardware
- Rugged Construction: Designed to withstand industrial temperature and vibration requirements, supporting deployment on vehicles and in machine cabins.
- External Antennas: Use of external antennas enhances coverage and performance in challenging RF environments.
- Multigigabit Ethernet: Includes one autosensing RJ‑45 port supporting up to 2.5 Gbps PoE and one 1 Gbps RJ‑45 port for flexible network connectivity.
- GPIO & LEDs: General‑purpose I/O and multicolor status LEDs simplify monitoring and external controls.
- GNSS Support: Built‑in Global Navigation Satellite System for precise location tracking of mobile assets.
Deployment & Integration
- Flexible Mounting: Compact form factor and DIN‑rail options make it ideal for installation inside cabinets or on mobile platforms.
- Low Power Consumption: Efficient power design supports DC input or PoE (802.3af/at, Cisco UPOE) for a wide range of installations.
- Industrial Use Cases: Perfect for Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), onboard rail deployments, and remote industrial Wi‑Fi extensions.
- Security Foundation: Built on Cisco Trust Anchor technologies for secure boot, image signing, and hardware integrity assurance.
Why Choose IW9165E?
The Cisco Catalyst IW9165E combines rugged hardware with cutting‑edge wireless technologies to deliver unparalleled connectivity for mission‑critical industrial applications. Its ability to support multiple wireless standards and operational modes makes it a future‑proof choice for organisations looking to modernise industrial networks, connect mobile assets, and extend reliable wireless access deep into factory floors and outdoor environments.
