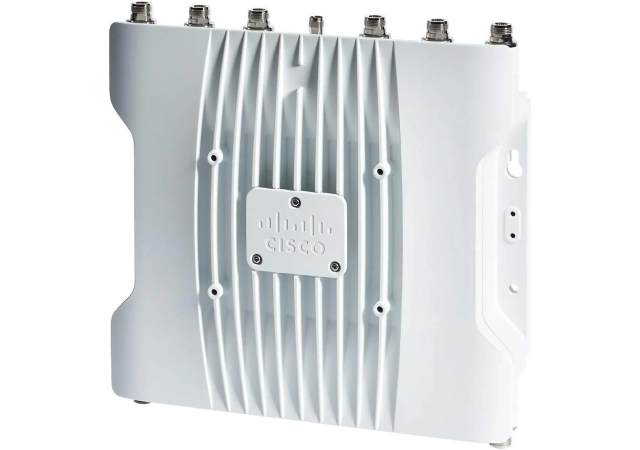

Cisco Catalyst IW9167EH-E-HZ - Heavy Duty Access Point

The IW9167EH-E-HZ is a model of the Cisco Catalyst IW9167E Heavy Duty Access Point designed specifically for deployment in hazardous locations worldwide. It includes all the capabilities and features of the IW9167E Heavy Duty Access Point with additional certifications and hardened ports to meet hazardous location requirements. This model supports Wi-Fi 6, Wi-Fi 6E, and Ultra-Reliable Wireless Backhaul (URWB) technologies, enabling high performance and reliable wireless connectivity in regulated explosive environments.

Key features and specifications of the IW9167EH-E-HZ include:

• Certified for hazardous locations with UL, ATEX, IECEx, and UKEx certifications.
• Supports Class I Division 2 (C1D2), Zone 2/Zone 22 hazardous location standards.
• Equipped with hardened ports suitable for hazardous environments.
• Multi-radio with 4 × 4 spatial streams.
• External antennas with 6-GHz hardware support.
• Onboard GNSS, Bluetooth Low Energy (BLE), and SFP+ port.
• Operating temperature range from -50° to 75°C.
• Permanent M25 converter for hazardous location compliance.
• Compliance with various environmental, electromagnetic compatibility, safety, and industrial standards such as IEC 60068 series, FCC, EN standards, and rail certifications.
• Radio approvals include FCC Part 15.247, 15.407, and Part 90Y specific to IW9167E and IW9167E-HZ models.
• The device operates in frequency bands including 2402–2480 MHz, 5180–5850 MHz, and 5860–5930 MHz with specified maximum transmitted power levels.
• The product carries the CE Mark for use in the European Community and EFTA countries, with some frequency restrictions and licensing requirements for outdoor use in certain regions.

This model is part of the Cisco Catalyst IW9167 Heavy Duty Series, which is designed for mission-critical wireless connectivity in outdoor and industrial settings, offering enhanced speed, security, and reliability even in extreme conditions.

Ordering information includes part numbers such as IW9167EH-x-AP for the standard Wi-Fi AP software version, IW9167EH-x-URWB for the URWB software version, IW9167EH-x-WGB for the WGB software version, and IW9167EH-x-HZ for the hazardous locations variant.

For detailed technical reference documents, installation guides, and data sheets, Cisco provides comprehensive resources on their website.

This series is suitable for mission-critical, time-sensitive wireless applications requiring high bandwidth, reliability, and seamless handoffs in challenging industrial and outdoor environments
