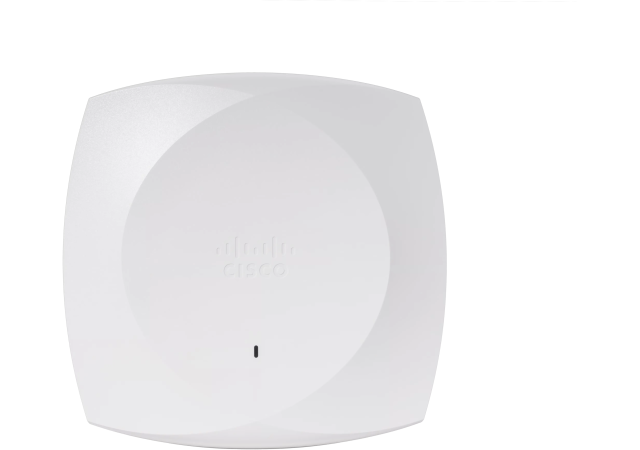

Cisco Part Number: CW9174I-CFG is a Cisco Wireless 9174I Access Point, Wi-Fi 7, Configurable
The Cisco Wireless CW9174I-CFG is part of the Cisco Wireless CW9174 Series Access Points, which are mid-tier Wi-Fi 7 access points featuring a penta radio architecture and full Wi-Fi 7 capabilities based on the 802.11be amendment.
Key features and specifications include:
- Product ID: CW9174I (Internal Antenna model)
- Scale: Supports up to 768 clients (256 clients per radio)
- Serving Radios:
- 2.4 GHz (Slot 0), 2x2:2 spatial streams
- 5 GHz (Slot 1), 4x4:4 spatial streams
- 6 GHz (Slot 3), 4x4:4 spatial streams (or alternatively 2.4 GHz 4x4:4 and 5 GHz 4x4:4 in dual-radio mode)
- IoT Capabilities: Dedicated 2.4 GHz IoT radio and application hosting capabilities
- Scanning Radio: Included for advanced RF visibility
- Wi-Fi 7 Features: 4K QAM, 320 MHz channel width, Multi-Link Operation, Preamble Puncturing, Multi Resource Units, Compressed Block Ack with 512 MPDUs, UL Triggered OFDMA
- Wi-Fi 6 Features: MU-MIMO, OFDMA, BSS Coloring, TWT
- LAN Port: PoE-IN 5 Gigabit multigigabit port
- Ports: mGig, Console, USB, DC 54V
- Antenna: Omnidirectional integrated antenna for CW9174I
- Dimensions: 8.9 x 8.9 x 2.5 inches (22.6 x 22.6 x 6.3 cm)
- Weight: 3.36 lb (1.52 kg)
- USB: 9W output
- SSIDs: Supports 16 SSIDs per band (2.4 GHz, 5 GHz, and 6 GHz)
- Mean Time Between Failures (MTBF): Approximately 2.4 million hours at 25°C
- Environmental Operating Conditions:
- Temperature: 32° to 122°F (0° to 50°C)
- Humidity: 10% to 90% noncondensing
- Altitude: Tested up to 9843 ft (3000 m)
- Antenna Gain:
- 2.4 GHz: 5 dBi
- 5 GHz: 5 dBi
- 6 GHz: 6 dBi
- IoT: 4 dBi
The CW9174I-CFG supports deployment globally with a single SKU, compatible with Cisco Wireless LAN Controllers and Meraki Cloud-based deployments. It supports the Cisco Catalyst wireless stack, including Cisco Catalyst Center, Cisco Spaces, and Identity Services Engine for security.
This model is designed for moderate to high-density deployments, delivering Wi-Fi 7 performance with advanced features and robust IoT support.
For more detailed technical specifications and deployment guidance, please refer to the Cisco Wireless CW9174 Series Access Point Deployment Guide
