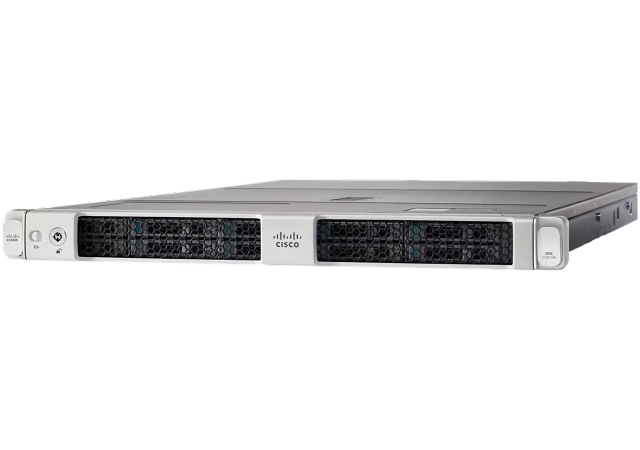

Cisco FMC1800-K9 - Secure Firewall Management Center 1800 Appliance

Cisco Part Number: FMC1800-K9 is a Cisco Secure Firewall Management Center 1800 Appliance

The Cisco FMC1800-K9 is a hardware appliance model within the Cisco Secure Firewall Management Center (FMC) x800 Series. Here are key details about the FMC1800-K9:

• Form Factor: 1RU rack unit.
• Management Interfaces: Two 10Gb SFP ports and two built-in 10Gb RJ45 ports supporting 100 Mbps, 1 Gbps, and 10 Gbps speeds. The primary management port is eth0, with eth1, eth2, and eth3 available as secondary management or event ports.
• USB Ports: Two USB 3.0 Type A ports.
• VGA Port: One 3-row 15-pin DB-15 connector, enabled by default.
• SFP Ports: Two fixed SFP+ ports supporting SFP-10G-SR and SFP-10G-LR modules.
• Network Interfaces: 2 x 10 Gbps RJ45 onboard and 2 x 10 Gbps SFP+.
• Memory: Two 32-GB DDR5-5600-MHz DIMMs (internal, not field replaceable).
• Chassis Dimensions: 1.7" x 16.9" x 30" (4.3 x 42.9 x 76.2 cm).
• Weight: 32.2 lb (16.6 kg).
• Cooling: Eight fans for front-to-rear cooling (internal component only; not field replaceable).
• Power Supply: Two 1200-W AC power supplies, hot-swappable and redundant as 1+1.
• Operating Temperature: 50 to 95°F (10 to 35°C), with derating above 3117 ft (950 m).
• Compliance: Meets various regulatory, safety, environmental, and EMC standards including CE Markings, UL 60950-1/62368-1, and others.

The FMC1800-K9 is designed to serve as a centralized administrative hub for managing Cisco Secure Firewalls, providing unified policy management, threat detection, and response capabilities. It supports managing up to 1500 Cisco Secure firewalls from a single console, enabling comprehensive security management including intrusion prevention, URL filtering, and advanced malware protection.

This appliance is part of the Cisco Secure Firewall Management Center x800 Series, which also includes FMC2800-K9 and FMC4800-K9 models with higher capacities and performance specifications.

Performance - Cisco Secure Firewall Management Center x800 series
