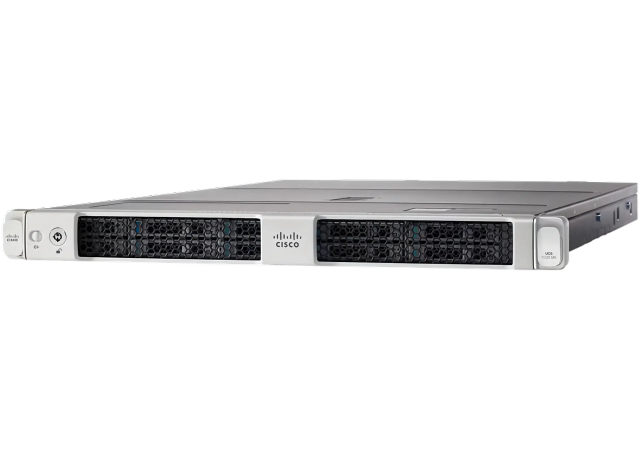

Cisco FMC2800-K9 - Secure Firewall Management Center 2800 Appliance

Cisco Part Number: FMC2800-K9 is a Cisco Secure Firewall Management Center 2800 Appliance

The Cisco FMC2800-K9 is a hardware appliance model within the Cisco Secure Firewall Management Center (FMC) x800 series. It serves as a centralized administrative hub for managing Cisco Secure Firewalls, providing unified management for firewall policies, intrusion prevention, URL filtering, and advanced malware protection.

Key Features and Capabilities:

• Manages up to 300 Cisco Secure firewalls from a single console.
• Provides visibility and analytics by discovering users, applications, and devices through passive network traffic analysis.
• Incorporates Cisco Talos threat intelligence feeds for up-to-date protection.
• Supports integration with Cisco and third-party technologies via APIs.
• Enables dynamic policy control with cloud platforms like AWS, Azure, and Google Cloud.

Hardware Specifications for FMC2800-K9:

• Form Factor: 1RU rack-mountable appliance.
• Management Interfaces: Two 10Gb SFP ports and two built-in 10Gb RJ45 ports supporting 100 Mbps, 1 Gbps, and 10 Gbps; primary management port is eth0.
• Memory: Six 16-GB DDR5-5600-MHz DIMMs.
• Network Interfaces: 2 x 10 Gbps RJ45 onboard and 2 x 10 Gbps SFP+ ports.
• Storage: Four 600-GB 10-K SAS HDDs, RAID 5, hot-swappable.
• Power Supply: Two 1200-W AC power supplies, hot-swappable and redundant (1+1).
• Cooling: Eight fans for front-to-rear cooling (internal component, not field-replaceable).
• Dimensions: Approximately 1.7" x 16.9" x 30" (4.3 x 42.9 x 76.2 cm).
• Weight: About 34.1 lb (16.8 kg).
• Operating Temperature: 50 to 95°F (10 to 35°C).
• Compliance: Meets various regulatory, safety, and EMC standards.

Ordering Information:

• The FMC2800-K9 is listed as the Cisco Secure Firewall Management Center 2800 Appliance.
• It does not require separate management licenses; licenses are required for managed devices.
• Compatible with Firepower 3100, 4100, 4200 Series, and Secure Firewall 9300 devices.

This appliance is designed for medium to large-scale deployments requiring robust firewall management and security analytics capabilities.

For detailed hardware installation, specifications, and ordering guidance, please refer to the Cisco Secure Firewall Management Center x800 Series Data Sheet and the Cisco Network Security Ordering Guide

Performance - Cisco Secure Firewall Management Center x800 series
