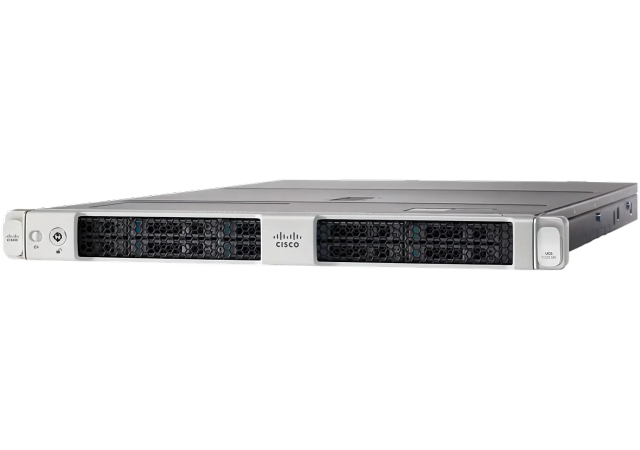

Cisco FMC4800-K9 - Secure Firewall Management Center 2800 Appliance

Cisco Part Number: FMC4800-K9 is a Cisco Secure Firewall Management Center 4800 Appliance

The Cisco FMC4800-K9 is a hardware appliance model within the Cisco Secure Firewall Management Center (FMC) x800 Series. Here are its key details:

Product Description:

• Cisco Secure Firewall Management Center 4800 Appliance (FMC4800-K9).

Hardware Specifications:

• Form factor: 1RU
• Management interfaces: Two 10/25Gb SFP ports; Two built-in 10Gb RJ45 ports supporting 100 Mbps, 1 Gbps, and 10 Gbps; primary management port is eth0.
• USB ports: Two USB 3.0 Type A
• VGA port: One 3-row 15-pin DB-15 connector
• Supported SFP+: SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S
• Network interfaces: 2 x 10 Gbps RJ45 onboard, 2 x 10/25 Gbps SFP+
• Memory: Twelve 32-GB DDR5-5600-MHz DIMMs (internal, not field replaceable)
• Weight: 36.0 lb (17.0 kg)
• Cooling: Eight fans for front-to-rear cooling (internal component, not field replaceable)
• Power supply: Two 1200-W AC power supplies, hot-swappable and redundant as 1+1
• Operating temperature: 50 to 95°F (10 to 35°C)
• Humidity: 8 to 90% noncondensing
• Altitude: 0 to 10,000 ft operating
• Acoustic noise: Sound power level 5.8 Bels; sound pressure level 43 dBa at 73°F (23°C).

Performance and Capacity:

• Maximum number of sensors managed:  up to 1500 sensors
• Maximum IPS events: Up to 800 million
• Network interfaces: 2 x 10 Gbps RJ45 onboard, 2 x 10/25 Gbps SFP+ (order SFPs separately)
• Power: Two 1050-W AC power supplies, hot swappable and redundant as 1+1
• Secure boot supported
• Supports high availability .

Compliance and Safety:

• Complies with CE Markings per directives 2014/30/EU and 2014/35/EU
• Safety standards include UL 60950-1/62368-1, CAN/CSA-C22.2 No. 60950-1/62368-1, IEC/EN 60950-1/62368-1, AS/NZS 62368.1, GB 4943.1-2022, CNS 15598-1:2020
• EMC emissions and immunity standards compliant .

Ordering Information:

• The FMC4800-K9 is listed as the Cisco Secure Firewall Management Center 4800 Appliance.
• Compatible with Firepower 3100, 4100, 4200 Series, and Secure Firewall 9300 devices.
• No separate management licenses required for physical appliances like FMC4800-K9.

This appliance serves as a centralized management platform for Cisco Secure Firewalls, providing unified policy management, threat detection, analytics, and integration capabilities.

Summary:

• The FMC4800-K9 is a high-performance, 1RU hardware appliance designed for managing large-scale Cisco Secure Firewall deployments.
• It offers robust hardware specifications, high availability, and compliance with multiple safety and regulatory standards.
• It is part of the Cisco Secure Firewall Management Center x800 Series, alongside FMC1800 and FMC2800 models.
