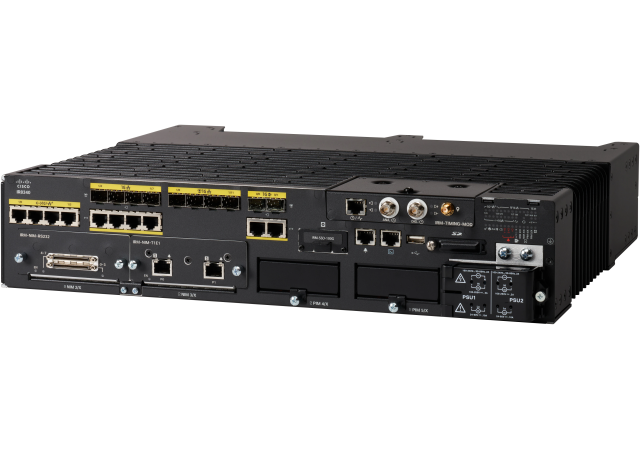

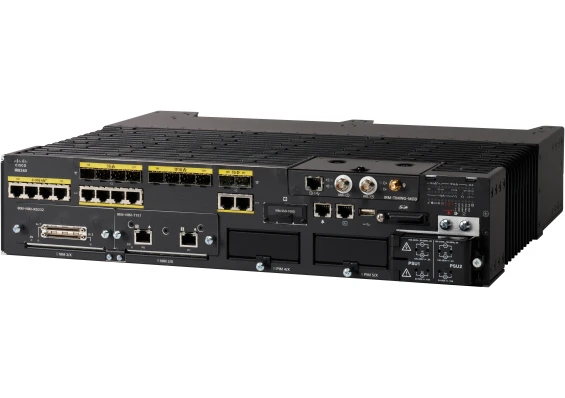

Cisco Part Number: IR8340-K9 is a Cisco Catalyst IR8340 Rugged Router
The Cisco Catalyst IR8340-K9 is an industrial-grade rugged router that integrates routing, switching, and security functionalities in a single platform. Key features and specifications include:
- Hardware and Ports:
- Two Pluggable Interface Module (PIM) slots and two single-wide IRM-NIM slots.
- 12 onboard LAN ports and two WAN ports.
- LAN ports include 4 x 10/100/1000Base-T PoE/PoE+/UPoE ports, 4 x 100/1000 SFP LAN ports, and 4 x 1-G Combo LAN ports.
- WAN ports include 2 x 1-G Combo WAN ports.
- Support for 5G and 4G LTE PIMs.
- Support for T1/E1 Network Interface Modules (NIM) and an 8-port Asynchronous/Synchronous RS232 NIM.
- Alarm ports: 2 IN and 1 OUT (RJ45).
- Power and Environmental:
- Power supply options include 150W or 250W PSU, with low-voltage DC and high-voltage AC/DC options.
- Operating temperature range from -40°C to +60°C.
- Relative humidity 5 to 95% noncondensing.
- Operating altitude up to 10,000 ft (3048 m).
- Performance and Storage:
- Intel x86 CPU with 8 GB cache memory and 8 CPU cores.
- 8 GB DRAM and integrated 8 GB eMMC flash memory.
- Additional storage options include SD card, mSATA (100 GB), and USB 2.0 storage.
- Security and Synchronization:
- Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI).
- Timing module support for IRIG-B (in/out), GNSS, TOD/1PPS, IEEE 1588 v2 (PTP), SyncE, and telecom PTP profiles (G.8265.1 and G.8275.1).
- Network-Advantage license required to enable all timing features.
- Frequency and time synchronization capabilities on WAN and LAN ports.
- Physical Dimensions and Weight:
- Dimensions: 3.5 x 17.25 x 15 inches (88.9 x 438.2 x 381 mm).
- Weight: 24 lbs (10.9 kg) with one power supply; 28 lbs (12.7 kg) fully configured.
- Additional Features:
- Supports mSATA module and timing module slots.
- Console port and USB port available.
- Supports PoE, PoE+, and UPoE (up to 60W) on LAN ports 1-4.
The IR8340-K9 is designed for industrial environments requiring rugged, high-performance routing with integrated security and timing synchronization capabilities. It replaces the Cisco CGR2010 router as per Cisco's product lifecycle announcements.
