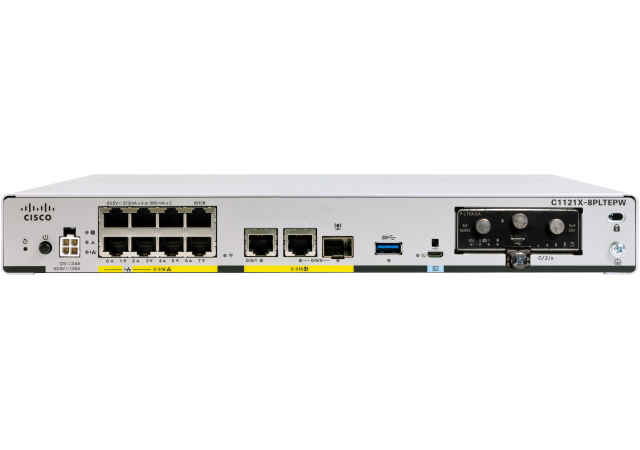

Cisco Part Number: C1121X-8PLTEPWE
Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.
| Brand | Cisco |
|---|---|
| Product type | Router |
| Product Family | ISR |
| Transport Protocols | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| IPsec throughput | N/A |
| IPv4 forwarding throughput | N/A |
| Management Protocols | SNMP, RMON, CLI, TR-069 |
| VoIP Protocols | N/A |
| Encryption Algorithms | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| RAM | 8 GB |
| Flash | 8 GB |
| Interfaces | WAN: 1 x 1000Base-T/1000Base-X – RJ-45/SFP ¦ LAN: 4 x 1000Base-T – RJ-45 ¦ LAN: 2 x 1000Base-T (PoE) – RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) – RJ-45 ¦ USB 3.0: 1 x console |
| Expansion Slots | N/A |
| Included Accessories | N/A |
| Power Supply | External power adapter |
| Width | N/A |
| Depth | N/A |
| Height | N/A |
| Weight | N/A |
| MTBF | N/A |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Warranty | N/A |
