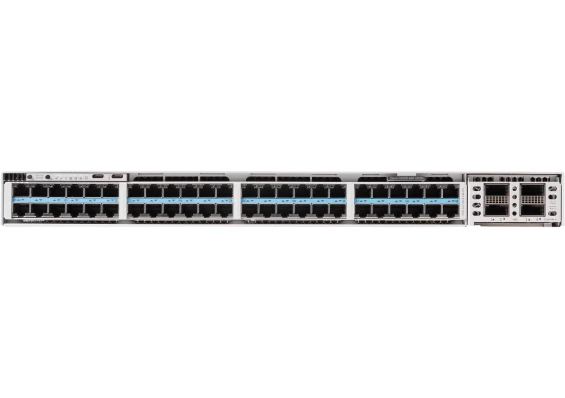

Cisco Part Number: C9350-48HX is a Cisco C9350 48-port 10G-mGig with 90W UPOE+ switch
The Cisco Catalyst 9350 Series sets a new benchmark for enterprise and smart building networks, delivering unmatched performance, scalability, and power efficiency at the access layer.
Key Features
- High-performance multigigabit access
Up to 48 ports of 1/2.5/5/10 Gbps, ensuring seamless support for Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7, IoT, and bandwidth-intensive applications.
- Full UPOE+ on every port
90W Universal Power over Ethernet Plus (UPOE+) across all ports, powering next-generation devices and smart building infrastructure without compromise.
- Built on Cisco Silicon One
Powered by the new Cisco Silicon One A100/L ASICs with an advanced x86-based CPU, enabling programmability, real-time telemetry, and on-box application hosting.
- Scalable stacking
StackWise-1.6T technology supports up to 8 switches in a single stack, scaling to 448 multigigabit and 384 UPOE+ ports for dense, high-throughput deployments.
Ideal Use Cases
- Large enterprise campuses
- Smart buildings and IoT-heavy environments
- High-density Wi-Fi access deployments
- Power-hungry device ecosystems
The Cisco Catalyst 9350 Series is built to deliver the speed, power, and intelligence required for the future of enterprise networking.
C9350-48HX use cases:
- Cisco C9350-48HX is optimized for enterprise access layer deployments requiring high-throughput multigigabit Ethernet and scalable power delivery.
- Designed for dense access environments with multigigabit interfaces supporting Wi-Fi 6/6E/7 and up to 90W UPOE+ per port for powering smart building systems, IP surveillance, and IT/OT endpoints.
C9350-48HX highlights:
- Cisco C9350-48HX is powered by dual Silicon One A100 ASICs, delivering 1.3 Tbps of throughput per ASIC for superior performance and future-ready infrastructure.
- Cisco C9350-48HX provides 90W on all ports through UPOE+ (IEEE 802.3bt Type 4), with a total PoE budget of 4320W.
- Cisco C9350-48HX supports 10 Mbps to 10 Gbps (10M/100M/1G/2.5G/5G/10G) downlinks; 10 Mbps is full-duplex only.
- Cisco C9350-48HX features scalable StackWise-1.6 T technology, enabling up to 1.6 Tbps of stack bandwidth and supporting as many as 448 multigigabit and 384 UPOE+ ports in an eight-switch stack.
- Cisco C9350-48HX supports up to 400G of aggregate uplink bandwidth, ensuring ample throughput for bandwidth-intensive enterprise applications.
