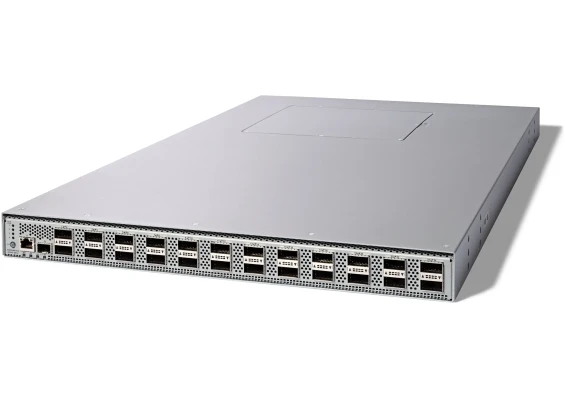

Cisco N9324C-SE1U= - 24p 100G Smart Switch

Cisco Part Number: N9324C-SE1U= is a Cisco N9300 Series, 24p 100G Smart Switch w/ 800G DPU service capacity spare (excludes power supplies and fans)

This model unifies data center networking and security.

• 24 100G ports
• 800G services throughput
• AMD DPUs
• Silicon One E100 ASIC
• Ideal for cloud-edge, zone-based segmentation, and Data Center Interconnect (DCI)

The Cisco N9324C-SE1U= (spare) is a 1-rack unit (1 RU) smart switch designed for high-performance data center networking. Key features and specifications include:

• Ports: 24 x 100G Ethernet QSFP28 ports.
• ASIC: Cisco Silicon One E100 ASIC for high-speed connectivity.
• DPUs: Four DPUs for software-defined stateful services, enabling advanced networking features.
• Deployment: Suitable as a Top of Rack (ToR) device supporting VXLAN-EVPN, BGP fabrics, and Multisite deployments.
• Port Speeds and Breakouts: Supported port speeds include 40G and 100G, with breakout options of 4 x 10G, 4 x 25G, and 2 x 50G.
• Management Ports: Includes RJ-45 or SFP management ports and a USB 3.0 port.
• Dimensions: Approximately 17.3 inches wide, 30 inches deep, and 1.72 inches high.
• Weight: About 36.8 lbs (16.69 kg).
• Power: Uses 1400W AC power supplies with port-side intake; typically two power supplies for redundancy.
• Environmental Specs: Operating temperature from 0 to 40°C, humidity 8 to 80%, and altitude up to 10,000 feet.
• Regulatory Compliance: Meets various safety and EMC standards including CE Markings, UL, IEC, and RoHS compliance.
• Lifecycle Assessment: Typical annual energy consumption is approximately 6,832.8 kWh, with a product lifespan assumed at 5 years.

For hardware installation and configuration, Cisco provides detailed guides and software images that bundle NX-OS and Hypershield management software.
