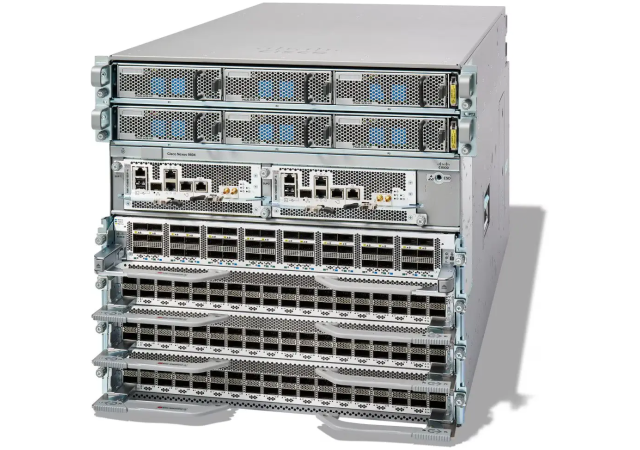

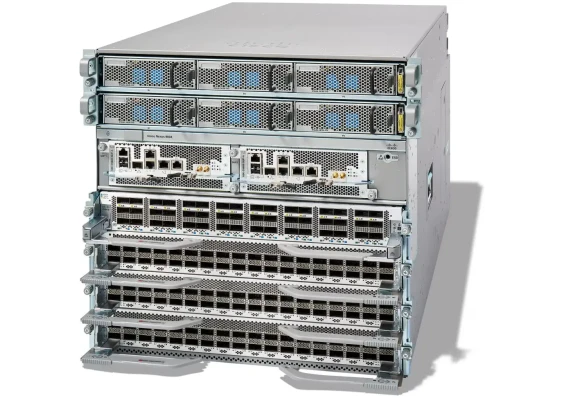

Cisco N9K-C9804 - Nexus 9800 4-slot chassis

Cisco Part Number: N9K-C9804 is a Cisco Nexus 9800 4-slot chassis

The Cisco Nexus 9804 (N9K-C9804) is a 10-RU modular switch chassis that supports up to 4 line cards, along with two supervisors, 8 fabric modules, 4 fan trays, and 2 power trays. It is part of the Cisco Nexus 9800 Series modular platform designed for high-performance data center networking.

Key features and components of the N9K-C9804 include:

• Chassis Size: 10 rack units (RU)
• Line Card Slots: Supports up to 4 line cards
• Supervisors: Supports two supervisor modules
• Fabric Modules: Supports 8 fabric modules
• Fan Trays: Supports 4 fan trays
• Power Trays: Supports 2 power trays

Supported line cards for the N9K-C9804 include:

• N9K-X9836DM-A: 36-port 400G line card with line-rate MACsec on all ports
• N9K-X98900CD-A: 14-port 400G and 34-port 100G line card with line-rate MACsec on 16 of the 100G ports

Additional hardware components for the N9K-C9804 chassis include fabric modules (N9K-C9804-FM-A), fan trays (N9K-C9804-FAN-A), and power supplies such as the NXK-HV6.3KW20A-A and NXK-HV6.3KW30A-A.

The Cisco Nexus 9804 is designed to deliver high bandwidth and performance with distributed forwarding across multiple field replaceable units (FRUs), making it suitable for data center and hybrid-cloud environments.

For detailed hardware installation guidance, Cisco provides the Cisco Nexus 9804 NX-OS Mode Switch Hardware Installation Guide.

This chassis is supported in Cisco NX-OS Release 10.4(1)F and later, and it is compatible with Cisco Data Center Networking licenses, including Premier, Advantage, and Essentials, with additional licenses required for features like MACsec.
