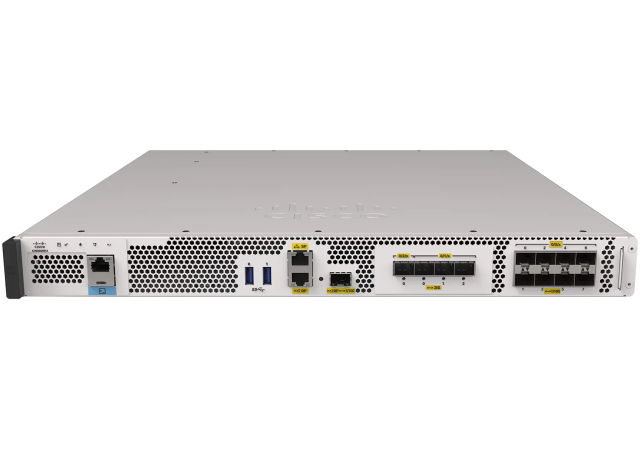

Cisco CW9800H1 - Wireless Controller

Cisco Part Number: CW9800H1  is a Cisco Catalyst CW9800H1 Wireless Controller

Product Overview:

• The CW9800H1 is part of the Cisco Catalyst 9800 Series Wireless LAN Controllers designed for large campus deployments requiring fast wireless connections.
• It supports up to 6000 access points and 64,000 clients.
• Maximum throughput is up to 100 Gbps using 1/10/25 Gbps uplinks.
• The controller is built on a fully programmable multicore network processor, improving performance by up to 36% and reducing power consumption by up to 40% compared to the Catalyst 9800-80.
• It features a 1RU (one rack unit) form factor for flexible deployment.
• The CW9800H1 offers 4 x 25 Gbps uplinks, differentiating it from the CW9800H2, which has 2 x 40 Gbps uplinks.
• It includes both 1 Gbps RJ-45 and 1/10 Gbps Small Form-Factor Pluggable (SFP) High Availability (HA) ports.
• Supports seamless software updates with zero downtime, Stateful Switchover (SSO) with 1:1 active standby and N+1 redundancy.
• Security features include Cisco Advanced Wireless Intrusion Prevention System (aWIPS), Secure Boot, runtime defenses, image signing, integrity verification, and hardware authenticity.
• Runs on Cisco IOS XE operating system with open standards-based programmable APIs and model-driven telemetry for automation.

Physical Dimensions:

• Width: 17.5 inches (44.45 cm)
• Depth: 19.87 inches (50.47 cm)
• Height: 1.73 inches (4.39 cm)
• Weight: 20.5 lb (9.3 kg)

Ordering Information:

• Product ID: CW9800H1
• Accessories include power supplies such as the Cisco Catalyst Wireless Controller 750W AC Power Supply (PWR-CH1-750ACR) and 950W DC Power Supply (PWR-CH1-950WDCR).

Additional Notes:

• The CW9800H1 supports line-rate encryption with hardware offload to avoid performance degradation.
• It is engineered for high throughput demands, including support for 6 GHz wireless technology.
• The controller is designed for high availability and secure wireless infrastructure.

This summary provides key features and specifications of the Cisco Catalyst CW9800H1 Wireless Controller for large-scale wireless deployments
