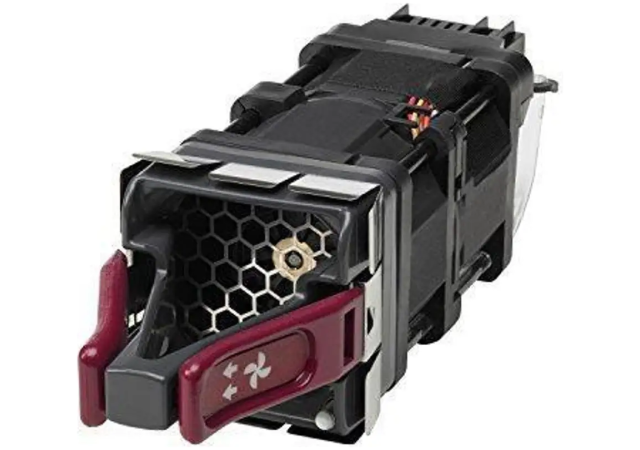

Cisco NXA-SFAN-35CFM-PI - Single Fan Module

Cisco Part Number: NXA-SFAN-35CFM-PI is a Cisco Nexus single fan, 35CFM, port-side intake airflow

The NXA-SFAN-35CFM-PI is a fan module with port-side intake airflow, identified by burgundy coloring. It provides 35 cubic feet per minute (CFM) airflow. This fan module is used in various Cisco Nexus switches, including models such as the 9332D-GX2B, 93400LD-H1, and 93108TC-FX3, among others. The quantity of these fans varies by switch model, for example, six fans for the 9332D-H2R and 9332D-GX2B switches.

Key details about the NXA-SFAN-35CFM-PI fan module include:

• Airflow Direction: Port-side intake (burgundy coloring)
• Airflow Volume: 35 CFM
• Compatible Switches: Cisco Nexus 9332D-GX2B, 93400LD-H1, 93108TC-FX3, 9332D-H2R, and others
• Quantity per Switch: Typically 6 fans for certain models like 9332D-GX2B and 9332D-H2R
• Weight: Approximately 0.26 lbs (0.1 kg)
• Use Case: These fans are part of the cooling system and must be used with power supplies that have matching airflow direction to prevent overheating.

This fan module is part of the cooling system for Cisco Nexus 9000 Series switches and must be used with other components that have matching airflow direction to avoid overheating issues.

For example, the Cisco Nexus 9332D-GX2B switch uses six NXA-SFAN-35CFM-PI fans with port-side intake airflow
