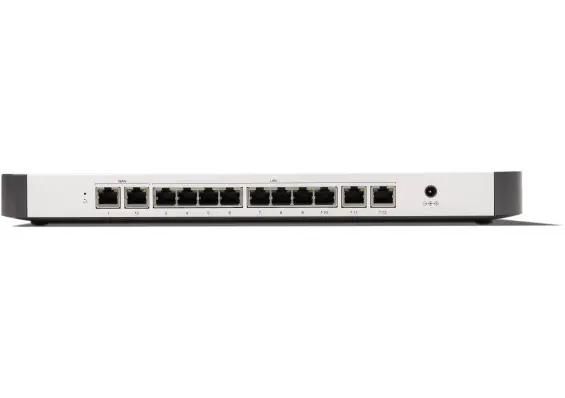

Cisco Meraki Part Number: C8121-W-G2-MX i a Cisco C8121-W-G2 Cloud Managed Secure Router
Cisco C8121-W-G2-MX Cloud-Managed Security Appliance
The Cisco C8121-W-G2-MX is a powerful cloud-managed security appliance designed to deliver reliable, secure connectivity for small branch offices and distributed business environments. Combining advanced network security, software-defined WAN (SD-WAN) capabilities and integrated Wi-Fi 6, it provides a flexible networking solution for organisations seeking simplified deployment and centralised management.
Managed through the Cisco Meraki Dashboard, the C8121-W-G2-MX enables administrators to configure, monitor and troubleshoot network infrastructure remotely, reducing the complexity of managing multiple locations.
Key Features and Benefits
- Integrated Wi-Fi 6: Dual-band wireless connectivity using 2.4 GHz and 5 GHz radios, with 2x2 MU-MIMO technology and a maximum aggregate data rate of up to 1.5 Gbps.
- Advanced network security: Stateful Layer 3 and Layer 7 firewall protection, intrusion detection and prevention, content filtering, and Advanced Malware Protection (AMP), subject to the appropriate licensing.
- SD-WAN and VPN: Meraki AutoVPN, IPsec VPN and intelligent traffic management help provide secure connectivity between branch offices and corporate networks.
- WAN resilience: Dual dedicated 2.5 Gigabit Multi-Gigabit Ethernet WAN ports support flexible uplink configurations, WAN link balancing and automatic failover.
- High-performance LAN connectivity: Ten Gigabit Ethernet LAN ports connect wired devices, including computers, IP phones, cameras and wireless access points.
- Power over Ethernet: Three LAN ports provide up to 45W each for compatible PoE-powered devices, helping reduce the need for separate power adapters.
- Centralised management: Cloud-based administration, automatic firmware upgrades, traffic analytics and remote troubleshooting simplify ongoing network operations.
Performance and Deployment
The C8121-W-G2-MX delivers firewall throughput of up to 2 Gbps and maximum VPN throughput of up to 1.2 Gbps. It is recommended for small branch deployments supporting up to 200 devices.
Its compact design supports desktop or wall mounting, making it suitable for offices and other space-constrained environments. With integrated wireless networking, comprehensive security features and centralised cloud management, the Cisco C8121-W-G2-MX offers an effective solution for modern business connectivity.
Technical Specifications
- Wireless standard: Wi-Fi 6 (802.11ax)
- WAN interfaces: 2 x 2.5 GbE RJ-45
- LAN interfaces: 10 x 1 GbE RJ-45
- Power supply: 250W DC
- Dimensions: 348 x 203 x 34 mm
- Mounting options: Desktop or wall mount
