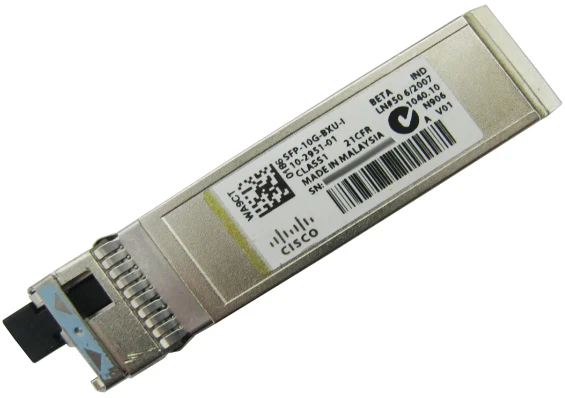

Cisco SFP-10G-BXU-I= - SFP Transceiver

Cisco Part Number: SFP-10G-BXU-I= Spare  is a Cisco 10GBASE-BX10-U Bidirectional for 10km

Cisco SFP+ modules provide an array of features and advantages:

• They boast the industry's most compact 10G form factor, ensuring optimal density per chassis.
• These modules are hot-swappable, meaning they can be inserted or replaced in an Ethernet SFP+ port on a Cisco switch without requiring a shutdown.
• They support a "pay-as-you-populate" model, allowing for investment protection and seamless technology migration.
• With digital optical monitoring capability, users benefit from robust diagnostic capabilities.
• They offer optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.
• The Cisco quality Identification (ID) feature enables Cisco platforms to discern whether the module has undergone certification and testing by Cisco, ensuring quality and reliability.

Cisco SFP-10G-BXD-I and SFP-10G-BXU-I for 10Km (single-fiber bidirectional applications)

The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.

A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.

The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices, as depicted in Figure 3. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. Note in Figure 3 the presence of a Wavelength-Division Multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths. This module also supports CPRI datarate options 3, 4, 5, 6, 7, 7a, 8.^*

The SFP-10G-BXD-I and SFP-10G-BXU-I SFPs also support Digital Optical Monitoring (DOM) functions according to the industry-standard SFF-8472 Multisource Agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
