Cisco Part Number: AIR-PWRINJ-60RGD1=

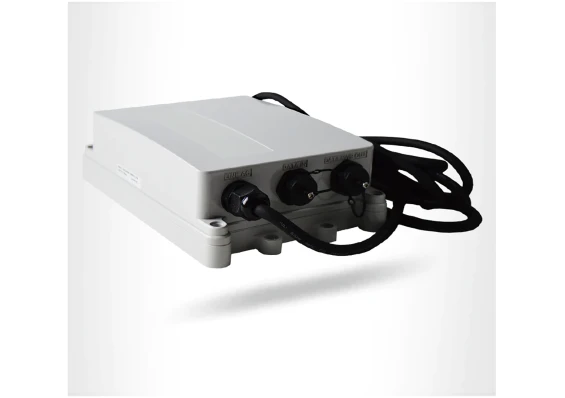

Cisco AIR-PWRINJ-60RGD1= — Outdoor PoE Adapter (60 W)
The Cisco AIR-PWRINJ-60RGD1= is an outdoor-rated Power-over-Ethernet injector engineered to deliver up to 60 W of DC power alongside data over a single Ethernet run — simplifying deployment of high-powered outdoor access points such as the Aironet 1560 series.
Key benefits
- Reliable outdoor power delivery for high-performance APs — up to 60 W output to support advanced radios and radios with auxiliary functions.
- Simplifies installations: combines 55 V DC power with data on one shielded outdoor Ethernet cable to avoid separate power cabling.
- Rugged, pole- or wall-mountable enclosure with surge protection for exposed deployments.
- Works with standard AC mains (120 V / 230 V input) for global compatibility.
Technical highlights
- Maximum output power: 60 W (max output current ≈ 2 A; nominal 55 V DC output).
- One Ethernet data+power port; rated to deliver PoE over all four pairs for long outdoor runs (typical 100 m data+power distance).
- Certified to common safety and EMC standards (CE, FCC, UL listings and surge/ESD protections listed by vendors).
- Compact footprint (~8.4" × 5.9" × 2.8", ~1.35 kg / 2.98 lb) for easy mounting.
Ideal for installers deploying Cisco Aironet 1560-series outdoor APs where reliable, weather-hardened PoE is required — the AIR-PWRINJ-60RGD1= reduces cabling complexity while protecting equipment in harsh environments.
