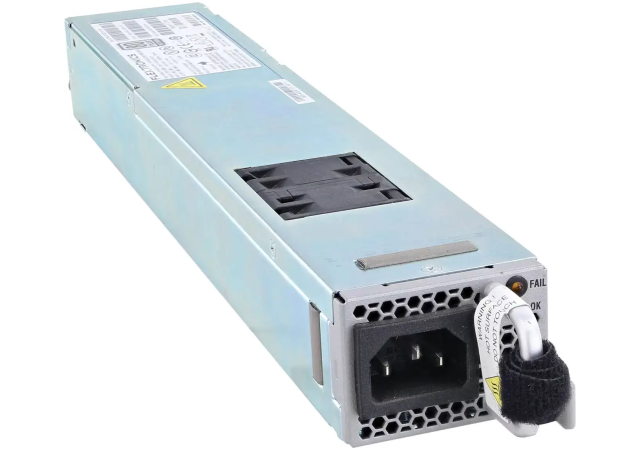

Cisco NXA-PAC-1400W-PI - Power Module

Cisco Part Number: NXA-PAC-1400W-PI is a Cisco 1400W AC power module with port-side intake

The NXA-PAC-1400W-PI is a Cisco Nexus 9000 Series 1400W AC power supply with port-side intake airflow. It is used as a power module for Nexus 9000 switches and is available both as a standard unit and as a spare. This power supply is designed to be hot-swappable and supports port-side intake airflow, which means it draws air from the port side of the switch for cooling.

Here are key points about the NXA-PAC-1400W-PI:

• Input voltage range: 100 VAC to 127 VAC and 200 VAC to 240 VAC
• Input frequency: 50 to 60 Hz
• Efficiency: 90% or greater (20 to 100% load)
• Output power: 1,000 W/36 W at 100-127 VAC, 1,400 W/36 W at 200-240 VAC
• Redundancy modes: 1+1
• RoHS compliant
• Hot swappable

This power supply is listed in the ordering information for Cisco Nexus 9000 Series switches such as the Nexus 9364C-H1 and Nexus 93400LD-H1 models, among others.

If you need further details on installation or specifications, these are typically found in the hardware installation guides for the specific Nexus 9000 switch models.
