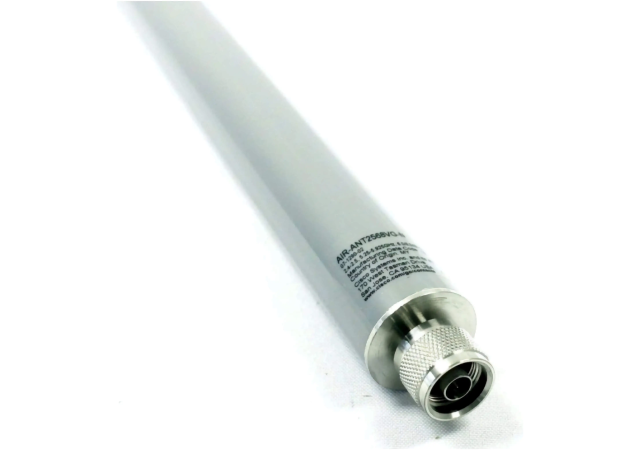

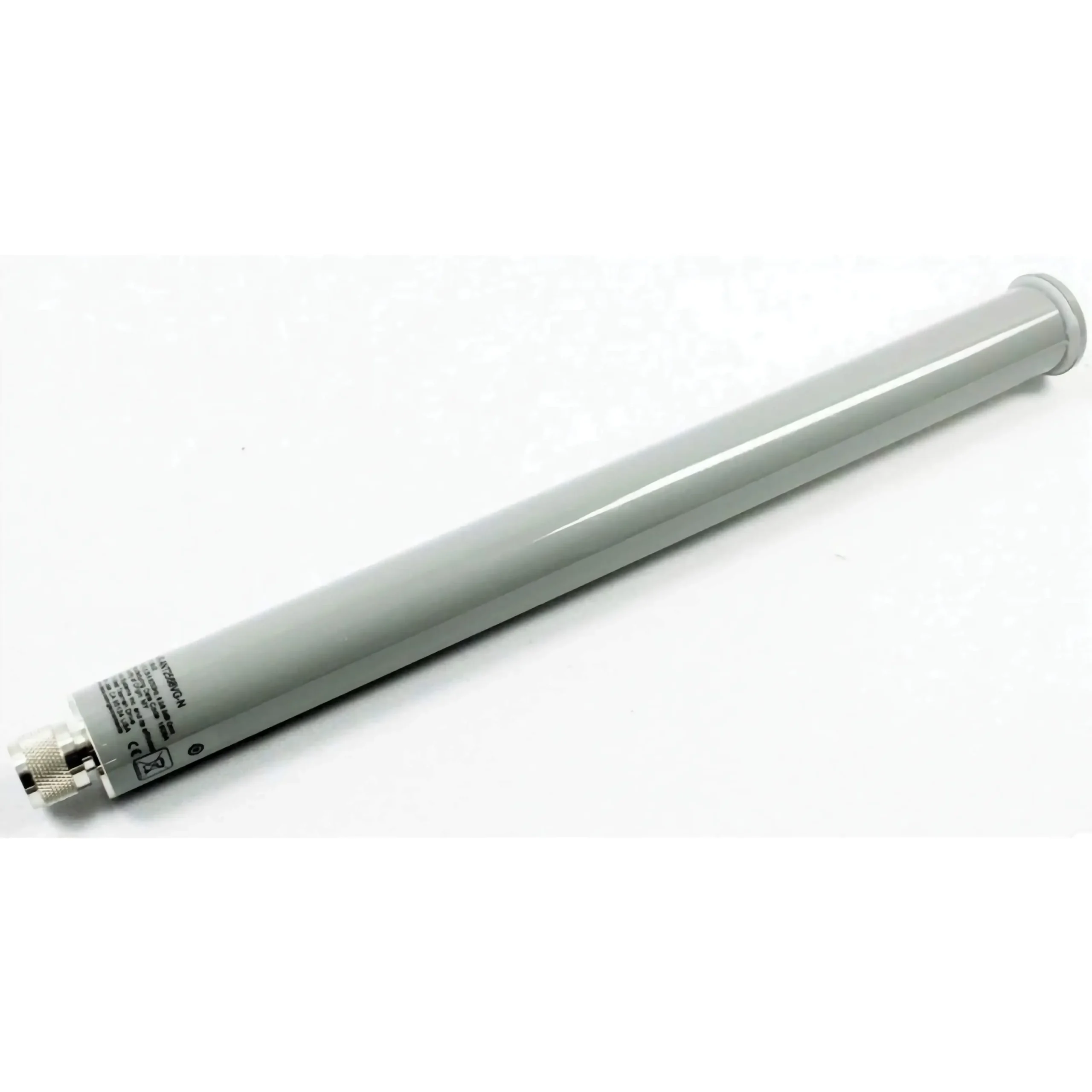

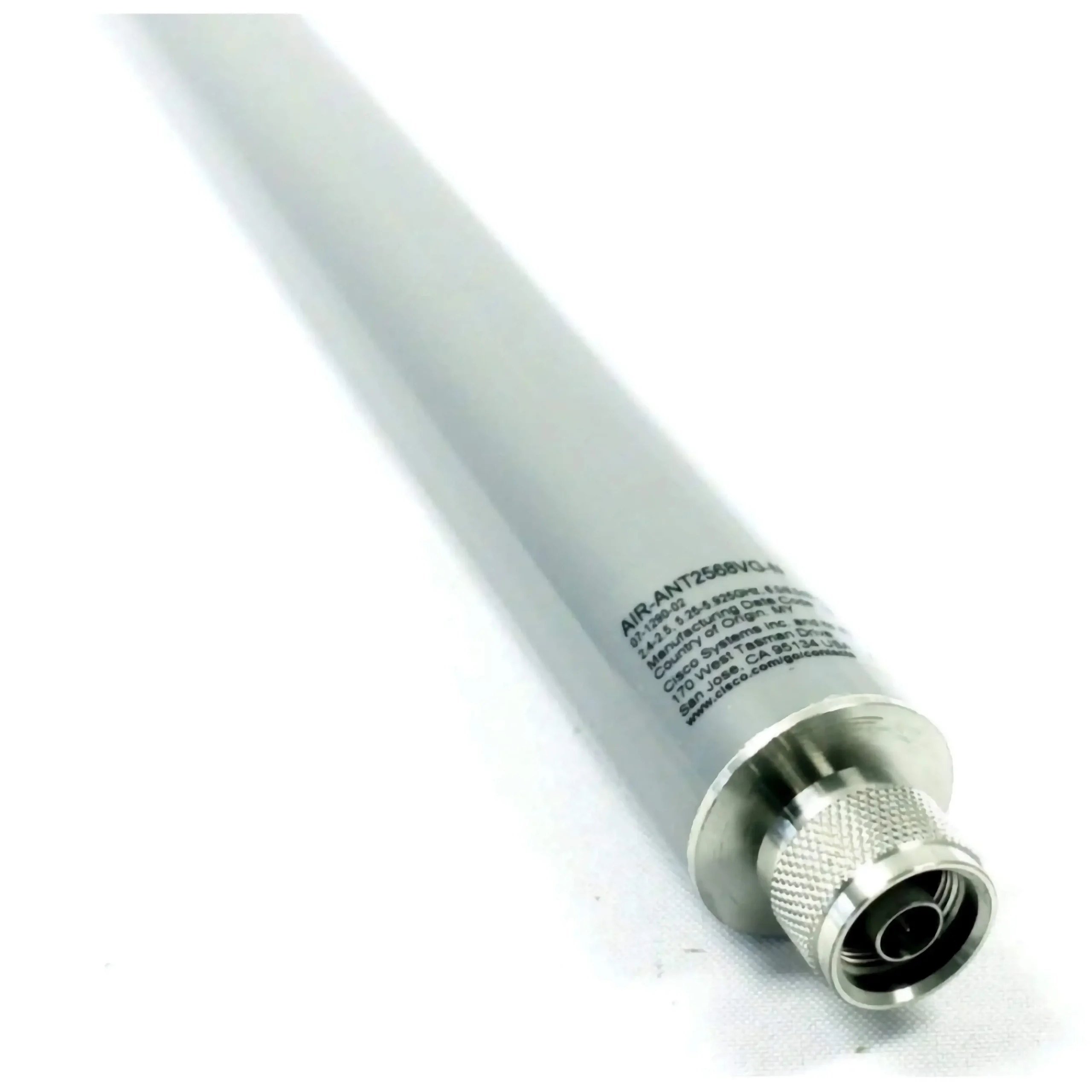

Cisco part number: AIR-ANT2568VG-NS= is a Cisco 2.4GHz 6dBi/ 5GHz 8dBi Dual Band Omni Antenna N Connector, spare
The Cisco AIR-ANT2568VG-NS= is a high-performance omnidirectional antenna designed to extend the coverage and reliability of wireless networks in both indoor and outdoor environments. Optimized for use with Cisco Aironet access points, this rugged antenna supports dual-band operation and is ideal for high-density deployments requiring 360° horizontal coverage.
| Frequency Range | 2.4–2.5 GHz / 5.15–5.85 GHz |
|---|---|
| Gain | 6 dBi (2.4 GHz) / 8 dBi (5 GHz) |
| Polarization | Vertical |
| Connector Type | N-Style Plug |
| Dimensions | 11.0 in. x 1.3 in. (279 mm x 33 mm) |
| Weight | 0.75 lb (0.34 kg) |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Mounting Options | Wall or mast mount (hardware included) |
This antenna is ideal for outdoor campus networks, warehouse coverage, manufacturing facilities, and public venues where robust, reliable, and wide-reaching Wi-Fi is essential.
Fully compatible with Cisco Aironet Series access points supporting external antennas.
