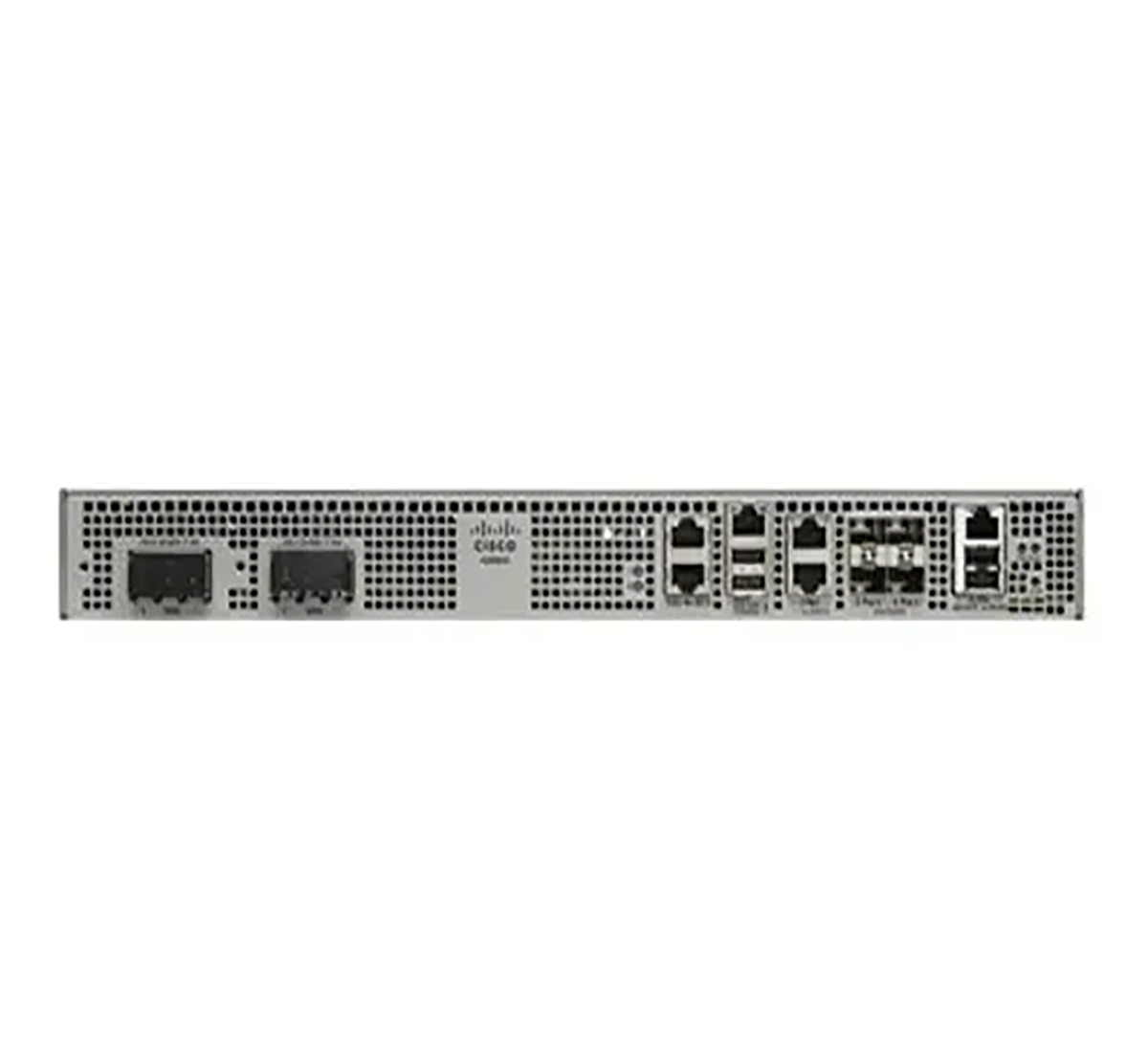

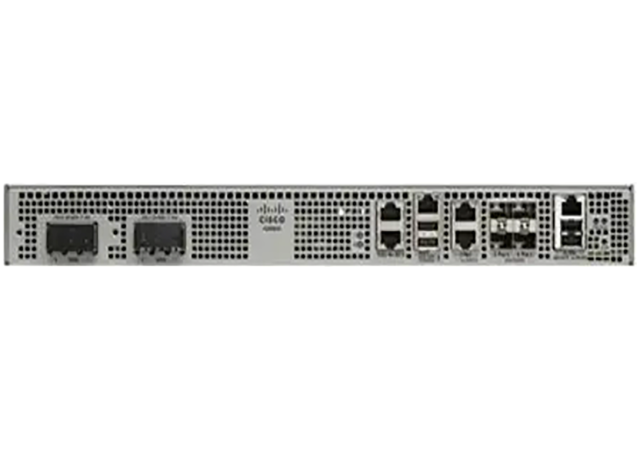

Cisco Part Number: ASR-920-4SZ-D is a Cisco ASR920 Series - 2GE and 4-10GE - DC model

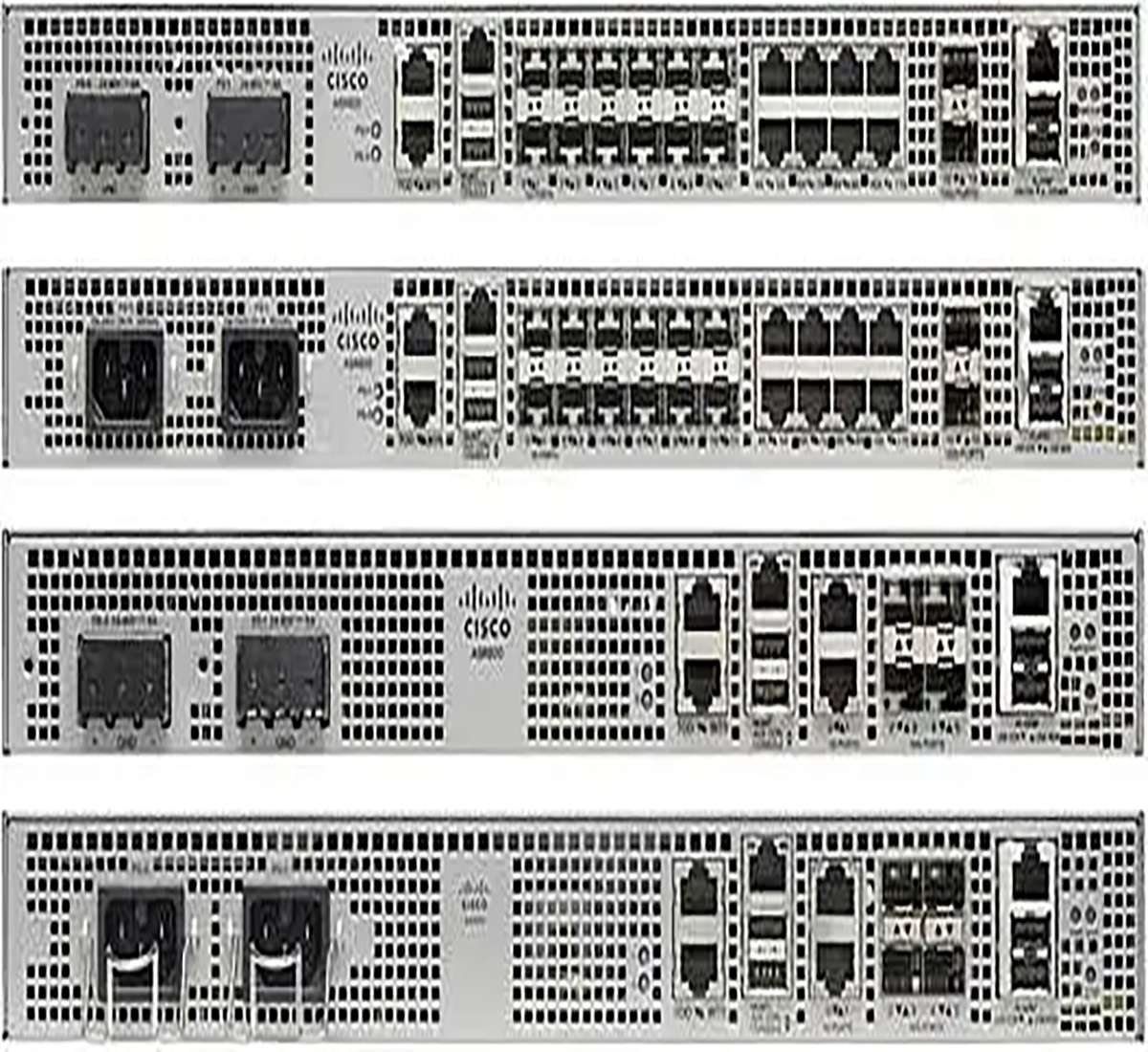

The Cisco ASR 920 Series Aggregation Services Router (ASR) stands as a versatile converged access platform tailored for the efficient provision of both wired and wireless services at an economical rate. These routers, characterized by their resilience to extreme temperatures, high throughput capacity, compact form factor, and low power consumption, are specifically engineered for mobile backhaul operations and business applications. Within the compact design of the Cisco ASR 920 Router lies an expansive and adaptable suite of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services, offering scalability and versatility. Moreover, it empowers service providers to implement Multiprotocol Label Switching (MPLS)-based VPN services directly from the access layer. Equipped with essential Carrier Ethernet functionalities, the Cisco ASR 920 Series streamlines network management, facilitating the delivery of premium services accompanied by enhanced service-level agreements (SLAs). With an optional "pay-as-you-grow" feature and service activation model, the Cisco ASR 920 Series epitomizes flexibility and cost-effectiveness, catering to evolving business needs.
Cisco ASR-920-12CZ Router Specifications
| Specification | ASR-920-12CZ-A/ASR-920-12CZ-D |
|---|---|
| Dimension Width x Depth x Height | 17.5 x 9.25 x 1.75 inches |
| Weight | ASR-920-4SZ-A: 3.50 kg |
| ASR-920-4SZ-D: 3.22 kg | |
| Rack Unit | One RU |
| Airflow | Front to back |
| Cable access | Front cable access |
| System throughput | 42 Gbps |
| Power Supply | |
| Modularity | None |
| Redundant | Yes |
| AC | Yes |
| Power Specification | 105 W |
| DC | Yes |
| Power Specification | 105 W |
| Operating Temperature | –40º C to 70º C |
| Alarms | 4 alarm dry contact inputs (normally open) |
| LED indicators for critical, major and minor alarms | |
| TDM Support | None |
| Mounting option | Front or rear rail 19 inches or 23 inches |
| ETSI 300 mm cabinet | |
| Wall Mount (with only side mount option). | |
| Port Configuration | 2x1G and 4x10G/1G ports |
| Port Numbering | 2x1G Copper – Port [0:1] |
| 4x10G – Port [2-5] | |
| Combo Ports | No combo ports |
| Copper Port LEDs | Link/Activity/Duplex LED indication |
| Temperature Sensors | Three temperature sensors |
| BITS/ToD | External ports for BITS/TOD |
