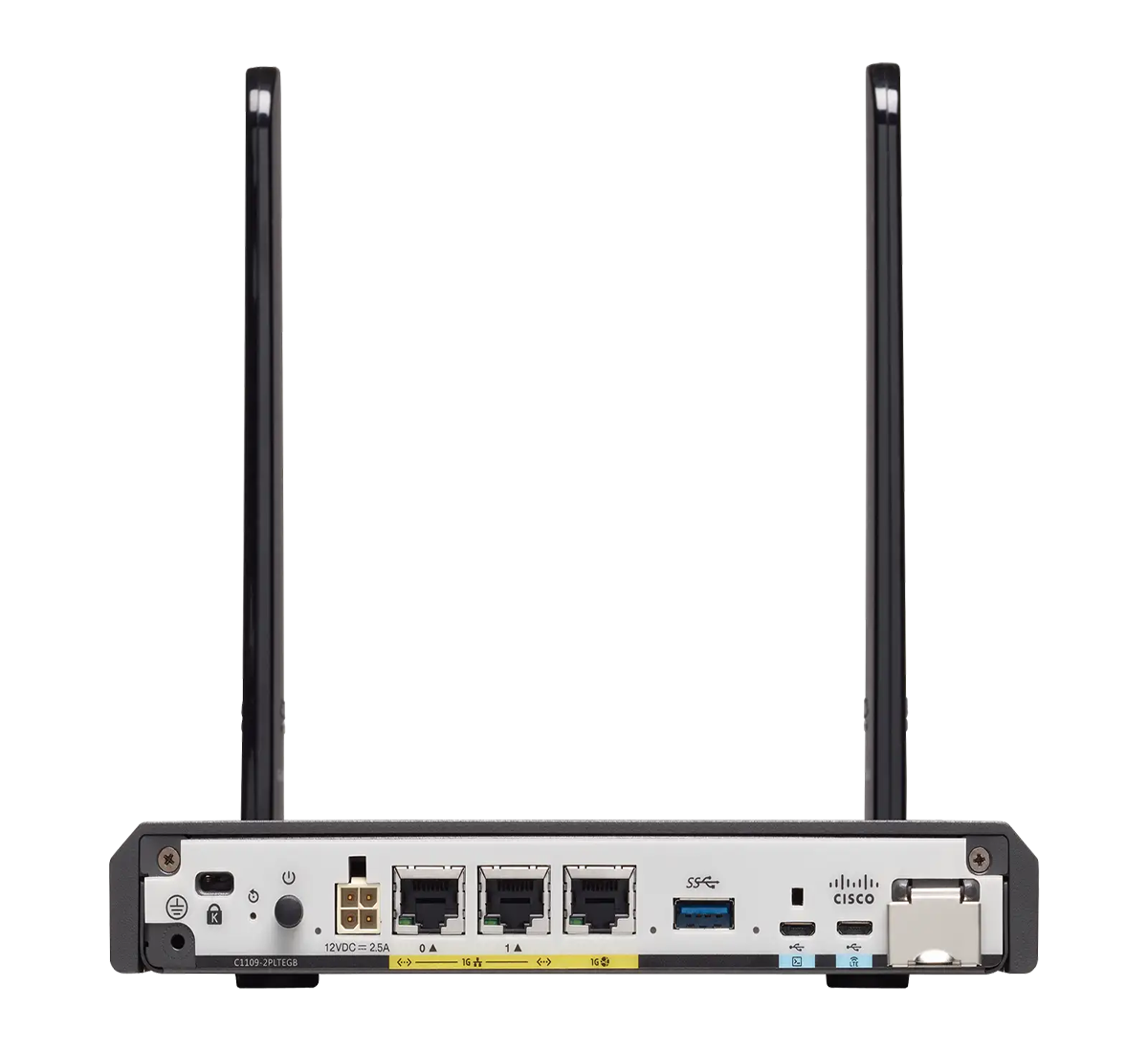

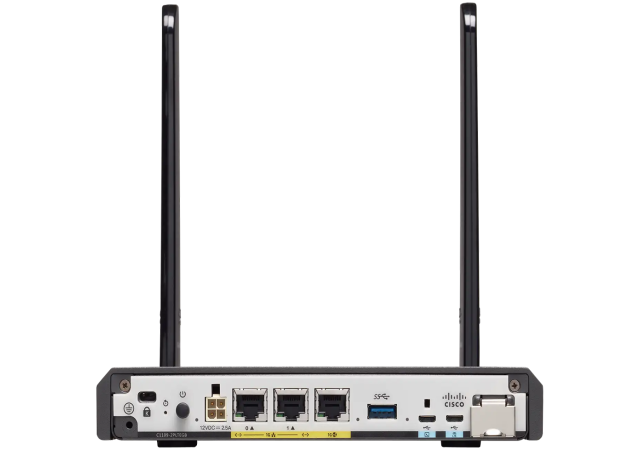

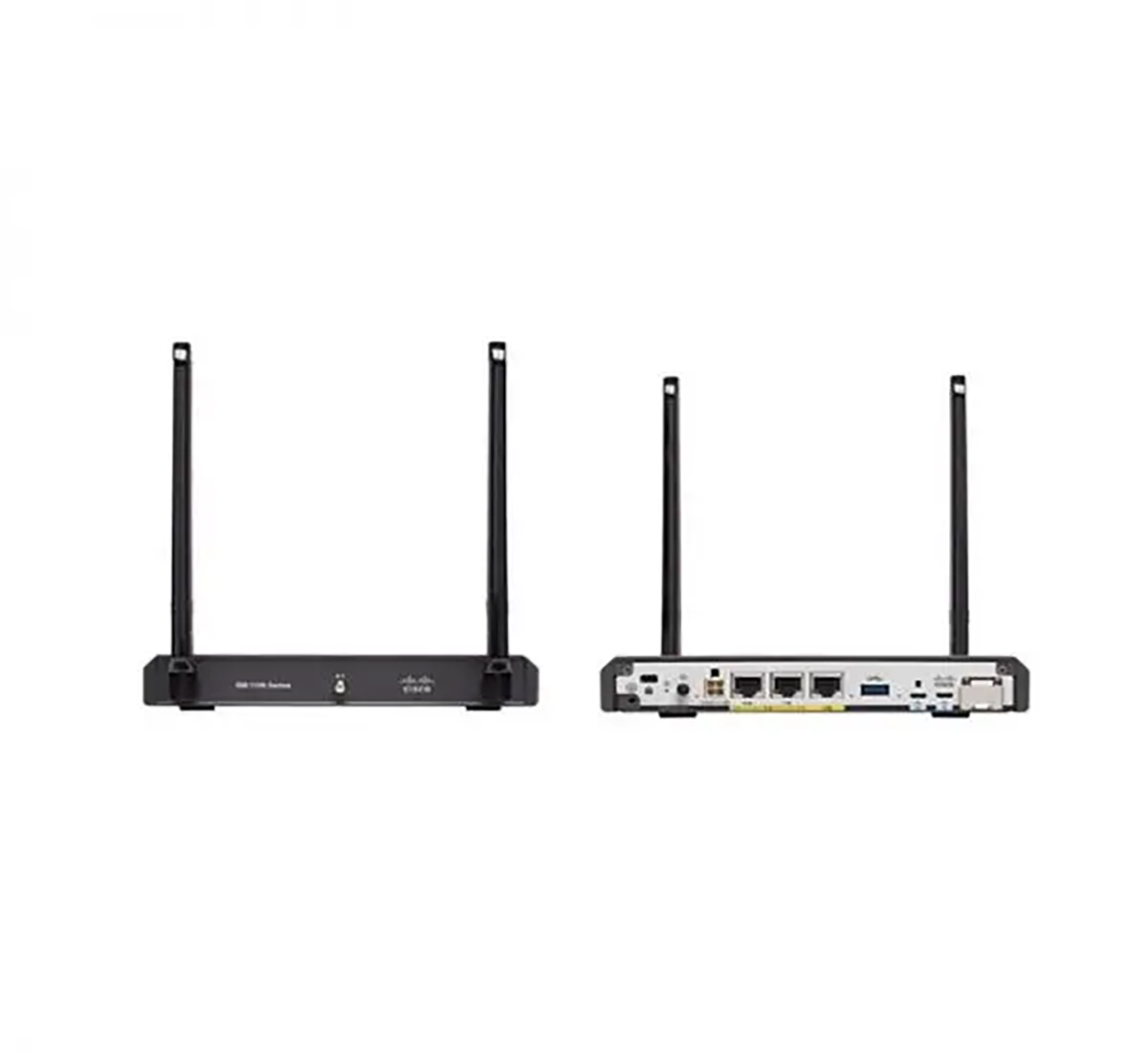

Cisco Part Number: C1109-2PLTEGB is a Cisco ISR 1109 M2M 2 Ports GE Ethernet and LTE Europe
The Cisco 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has continually evolved to meet the dynamic needs of our valued customers. Designed for flexibility and efficiency, the ISR 1000 Series integrates routing, switching, Wi-Fi, built-in security, and connectivity options like DSL and LTE uplinks into a single, compact, and high-performing device. Whether opting for the traditional Cisco IOS® XE or the controller-managed Cisco IOS XE SD-WAN software, deploying your network across all Cisco ISR 1000 Series routers is swift and dependable. Embracing a straightforward and adaptable pay-as-you-grow approach, you acquire network capacity precisely when required.
Key Highlights:
● Robust hardware complemented by feature-rich software ensures top-notch performance for small-office routers, delivering encrypted throughput of up to 800 Mbps in IMIX scenarios.
● Stay ahead with cutting-edge LTE uplink technologies, featuring dual-carrier support, carrier aggregation, and forthcoming 5G support.
● Tailored network management solutions cater to diverse needs, spanning from local WebUI support to cloud-hosted and on-premises SD-WAN controllers.
● Embrace the future with Wi-Fi 6-ready wireless connectivity seamlessly integrated into a compact, fanless, all-in-one unit.
● Access advanced security functionalities directly onboard, including Enterprise Firewall with Application Awareness, IPS/IDS, Advanced Malware Protection, URL filtering, and Cisco Umbrella® Secure Internet Gateway (SIG) for Secure Access Service Edge (SASE) capabilities.
There are two WAN interface combinations in the Cisco 110x models: the 1101 and 1109.
WAN interface combinations for the Cisco 110x ISRs:
|
WAN interface combination |
Description |
|---|---|
|
1 |
1 copper Ethernet port |
|
9 |
1 copper Ethernet port + hardened platform built for wider temperature range |
Cisco C1109-2PLTEGB specification:
|
Model |
WAN |
Wi-Fi |
LAN switch |
Integrated USB 3.0 console |
Pluggable |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
GE |
GE/SFP combo |
ADSL2/VDSL2+ or G.FAST or G.SHDSL |
LTE Advanced (CAT6) |
LTE Adv. Pro (CAT18) |
802.11ac |
GE |
PoE or PoE+ |
||||
|
C1109-2PLTEGB |
1 |
NA |
NA |
NA |
NA |
NA |
2 |
NA |
NA |
Yes (No AUX) |
NA Same CAT4 technology as P-LTE-GB |
