BRAND: Cisco

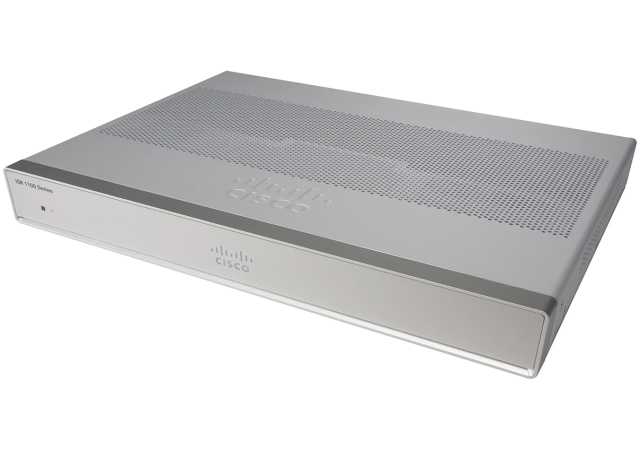

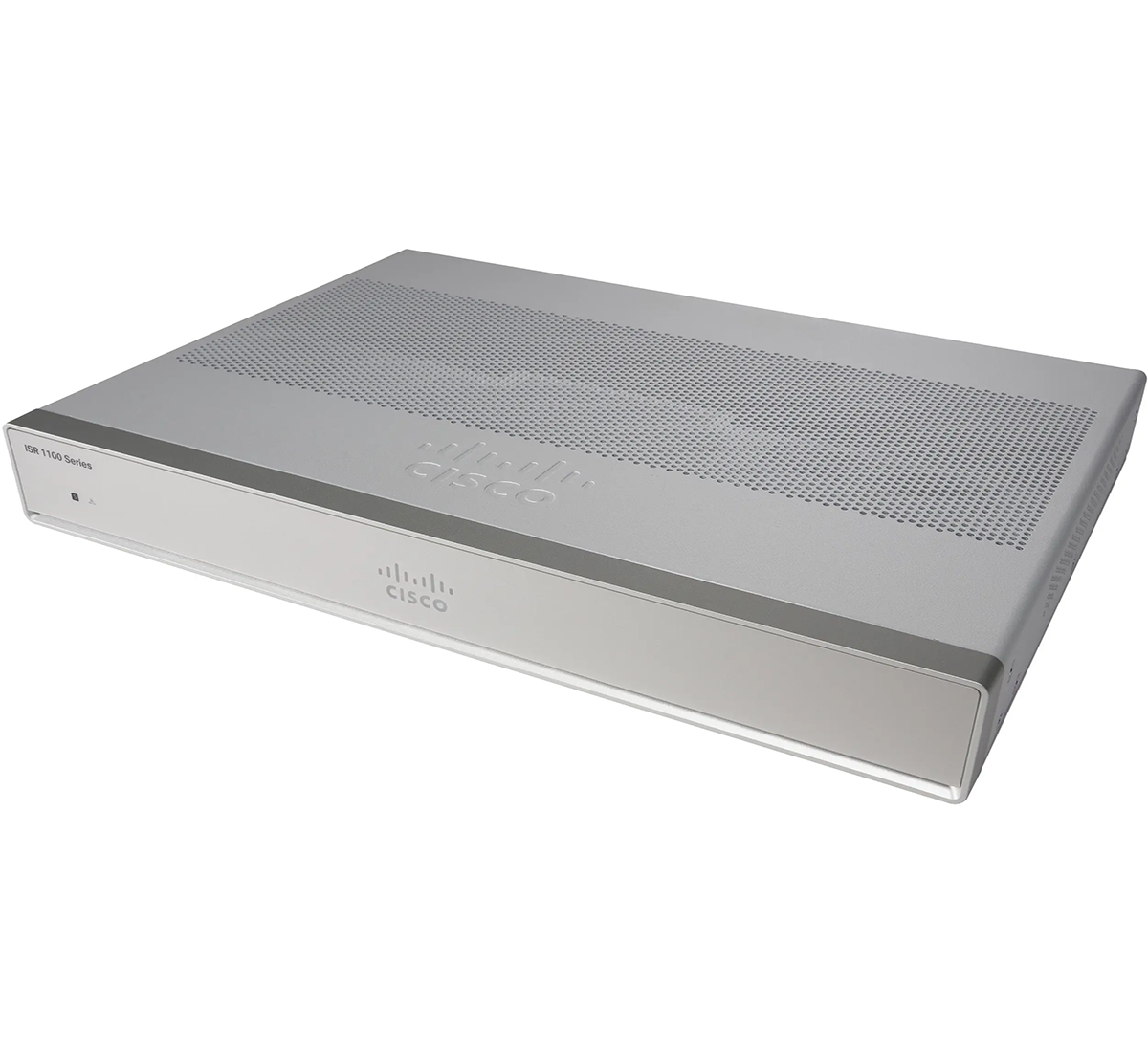

Cisco C1121X-8P - Integrated Services Router

MPN: C1121X-8P
£454.20
£545.04 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Links & Documents

Cisco Part Number: C1121X-8P is a Cisco ISR 1100 8P Dual GE SFP WAN 8GB Router

The Cisco 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has continually evolved to meet the dynamic needs of our valued customers. Designed for flexibility and efficiency, the ISR 1000 Series integrates routing, switching, Wi-Fi, built-in security, and connectivity options like DSL and LTE uplinks into a single, compact, and high-performing device. Whether opting for the traditional Cisco IOS® XE or the controller-managed Cisco IOS XE SD-WAN software, deploying your network across all Cisco ISR 1000 Series routers is swift and dependable. Embracing a straightforward and adaptable pay-as-you-grow approach, you acquire network capacity precisely when required.

Key Highlights:

● Robust hardware complemented by feature-rich software ensures top-notch performance for small-office routers, delivering encrypted throughput of up to 800 Mbps in IMIX scenarios.

● Stay ahead with cutting-edge LTE uplink technologies, featuring dual-carrier support, carrier aggregation, and forthcoming 5G support.

● Tailored network management solutions cater to diverse needs, spanning from local WebUI support to cloud-hosted and on-premises SD-WAN controllers.

● Embrace the future with Wi-Fi 6-ready wireless connectivity seamlessly integrated into a compact, fanless, all-in-one unit.

● Access advanced security functionalities directly onboard, including Enterprise Firewall with Application Awareness, IPS/IDS, Advanced Malware Protection, URL filtering, and Cisco Umbrella® Secure Internet Gateway (SIG) for Secure Access Service Edge (SASE) capabilities.

The Cisco 112x ISR models offer multiple combinations of Wi-Fi, LTE, DSL, and 8-GB DRAM/flash memory on the same device. There are four WAN interface combinations in the C112x platform: 1121, 1126, 1127, and 1128.

WAN interface combinations for the Cisco 112x ISRs:

WAN interface combination

Description

1

1 copper/SFP Ethernet port + 1 copper Ethernet port

6

1 copper/SFP Ethernet port + 1 ADSL2/VDSL2+ port (Annex B/J ISDN)

7

1 copper/SFP Ethernet port + 1 ADSL2/VDSL2+ port (Annex A POTS); M modifier indicates Annex M support

8

1 copper/SFP Ethernet port + 1 G. SHDSL port

Cisco C1121X-8P specification:

Model

WAN

Wi-Fi

LAN switch

Integrated USB 3.0 console

Pluggable

GE

GE/SFP combo

ADSL2/VDSL2+ or G.FAST or G.SHDSL

LTE Advanced (CAT6)

LTE Adv. Pro (CAT18)

802.11ac

GE

PoE or PoE+

C1121X-8P

1

1

NA

NA

NA

NA

8

4

2

Yes

CAT4 LTE Dongle
