Cisco Part Number: C1131X-8PLTEPWE is a Cisco ISR 1100X 8P 8G Dual GE Router Pluggable SMS GPS E Wifi

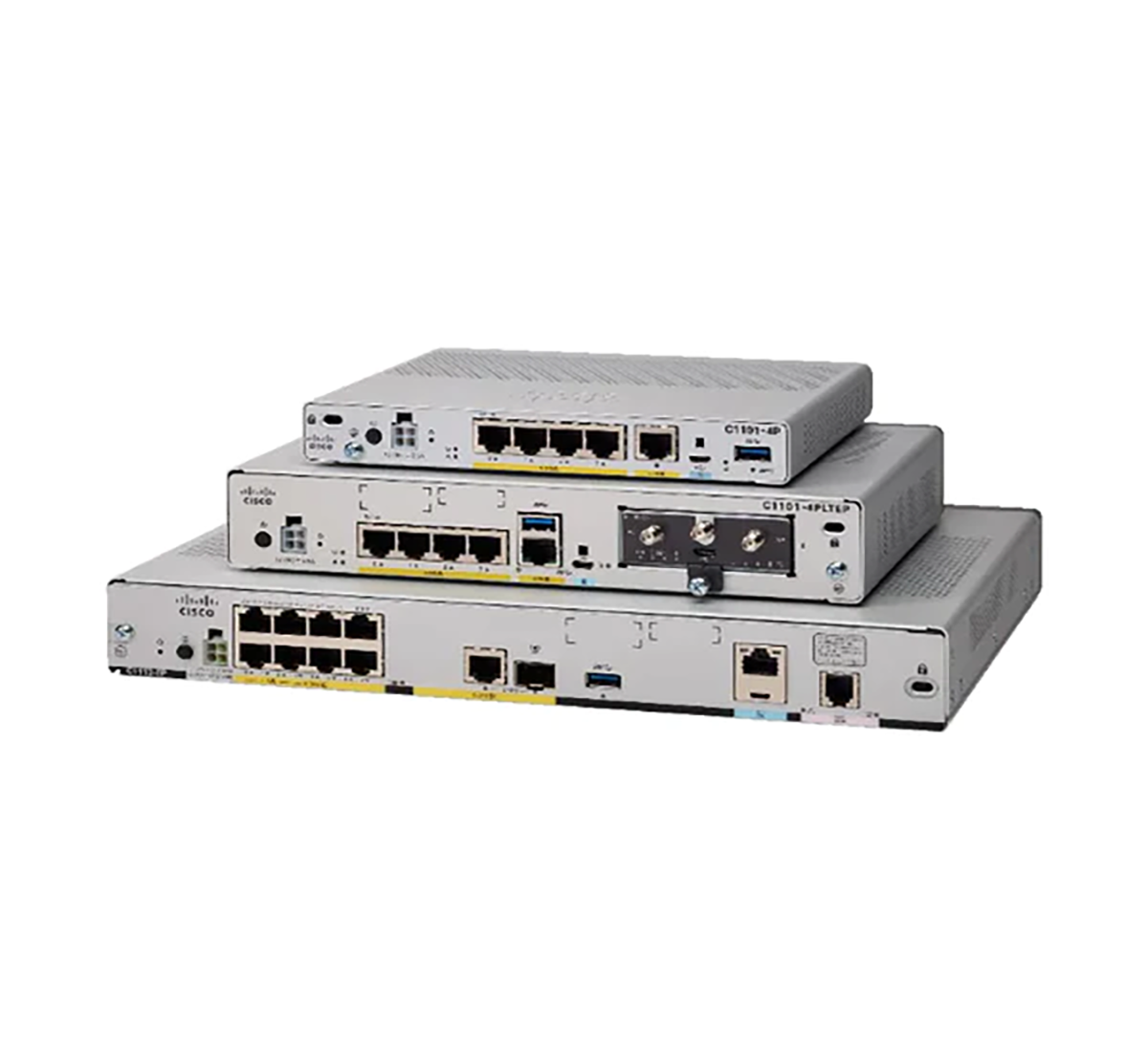

The Cisco 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has continually evolved to meet the dynamic needs of our valued customers. Designed for flexibility and efficiency, the ISR 1000 Series integrates routing, switching, Wi-Fi, built-in security, and connectivity options like DSL and LTE uplinks into a single, compact, and high-performing device. Whether opting for the traditional Cisco IOS® XE or the controller-managed Cisco IOS XE SD-WAN software, deploying your network across all Cisco ISR 1000 Series routers is swift and dependable. Embracing a straightforward and adaptable pay-as-you-grow approach, you acquire network capacity precisely when required.
Key Highlights:
● Robust hardware complemented by feature-rich software ensures top-notch performance for small-office routers, delivering encrypted throughput of up to 800 Mbps in IMIX scenarios.
● Stay ahead with cutting-edge LTE uplink technologies, featuring dual-carrier support, carrier aggregation, and forthcoming 5G support.
● Tailored network management solutions cater to diverse needs, spanning from local WebUI support to cloud-hosted and on-premises SD-WAN controllers.
● Embrace the future with Wi-Fi 6-ready wireless connectivity seamlessly integrated into a compact, fanless, all-in-one unit.
● Access advanced security functionalities directly onboard, including Enterprise Firewall with Application Awareness, IPS/IDS, Advanced Malware Protection, URL filtering, and Cisco Umbrella® Secure Internet Gateway (SIG) for Secure Access Service Edge (SASE) capabilities.
The Cisco 113x ISR models introduced 802.11ax embedded access points to the Cisco ISR 1000 Series. These devices offer 4-GB DRAM/8-GB flash and 8-GB DRAM/16-GB flash options. There is only one WAN interface combination in the 1131 models, with the option for an LTE Pluggable Interface Module (PIM) slot.
WAN interface combinations for the Cisco 113x ISRs:
|
WAN interface combination |
Description |
|---|---|
|
1 |
2 copper/SFP Ethernet ports |
Cisco C1131X-8PLTEPWE specification:
|
Model |
WAN |
Wi-Fi |
LAN switch |
Integrated USB 3.0 console |
Pluggable |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
GE |
GE/SFP combo |
ADSL2/VDSL2+ or G.FAST or G.SHDSL |
LTE Advanced (CAT6) |
LTE Adv. Pro (CAT18) |
802.11ac |
GE |
PoE or PoE+ |
||||
|
C1131X-8PLTEPWE |
1 |
1 |
NA |
1 EMEAR & North America |
NA |
NA |
4 |
2 |
1 |
Yes |
NA |
