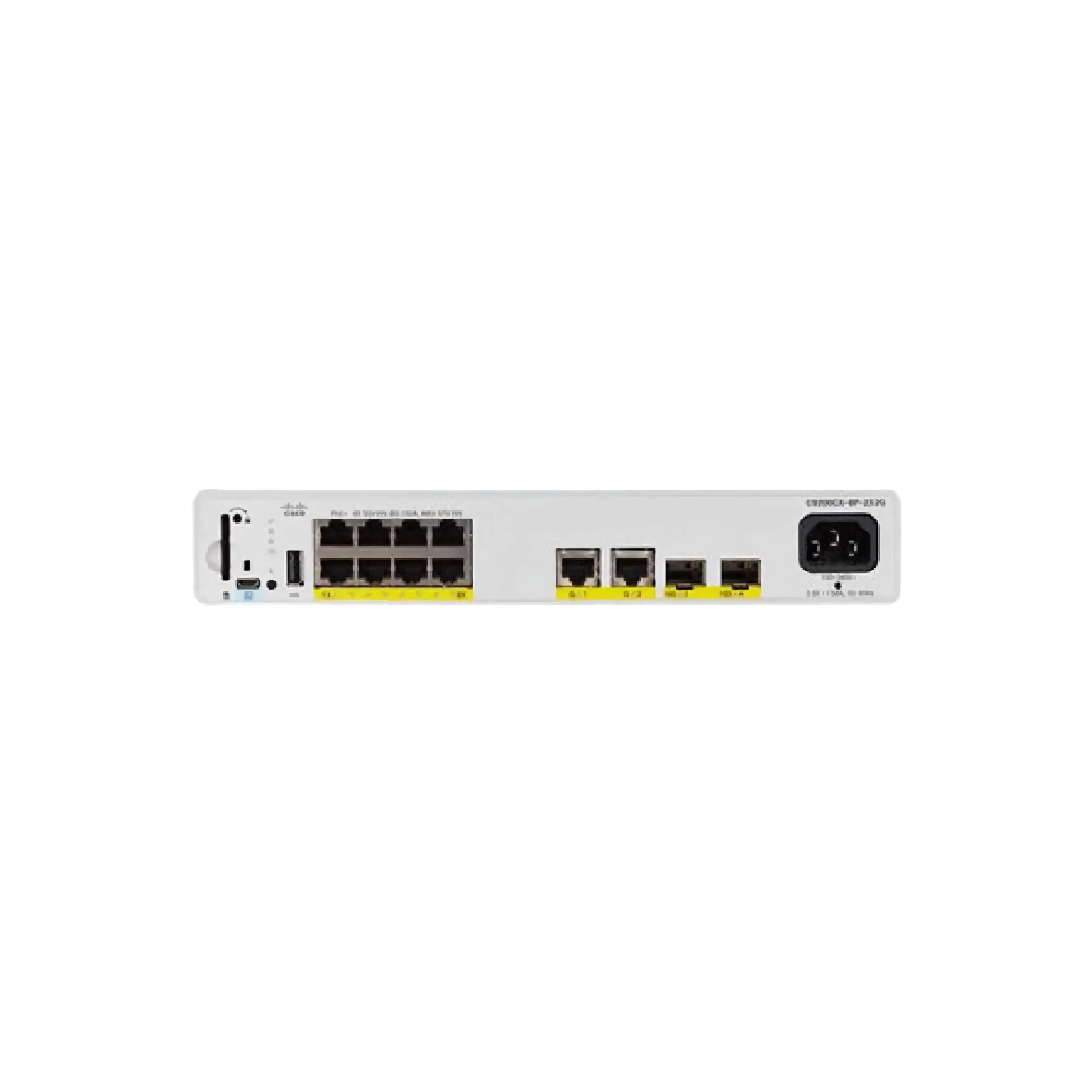

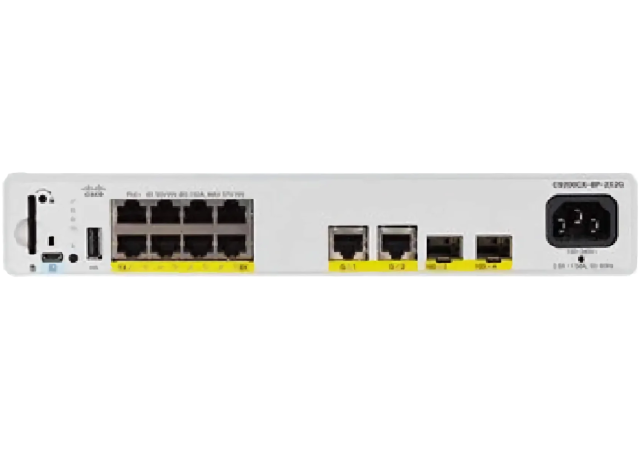

Cisco Part Number: C9200CX-8UXG-2X-E is a Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Essentials
The Cisco Catalyst 9200CX compact switches serve as the cornerstone of Cisco's cutting-edge compact, enterprise-grade access layer solutions. Offering a feature-rich platform similar to other models in the Catalyst 9200 series, these fanless switches are available in diverse configurations, including data-only, Power over Ethernet Plus (PoE+), and 802.3bt Type 3 Class 6 60W UPOE models. Designed to meet the demands of enterprise applications, they boast exceptional table scales (MAC/route/ACL) and buffering capabilities.
The Catalyst 9200CX platform delivers a robust 128 Gbps of switching capacity, complemented by a forwarding performance of up to 95 Mpps. These switches provide nonblocking 1 Gigabit Ethernet (1G) speeds (ranging from 10/100 Mbps to 1 Gbps) over PoE+ capable copper ports. Additionally, they offer nonblocking multigigabit (mGig) speeds (ranging from 10/100 Mbps to 1GB/2.5GB/5GB/10GB) over 802.3bt Type 3 Class 6 60W UPOE copper ports.
Equipped with versatile uplink options, these models support nonblocking 10G Small Form-Factor Pluggable (SFP+) and 1G SFP, catering to diverse campus needs when connecting to aggregation or core devices. Furthermore, users can choose from AC and HVDC power supply options to suit their specific power requirements.
In summary, the Cisco Catalyst 9200CX compact switches offer a high-performance, feature-rich solution for enterprise access layer needs, providing flexibility and scalability in various configurations to meet the demands of modern networking environments.

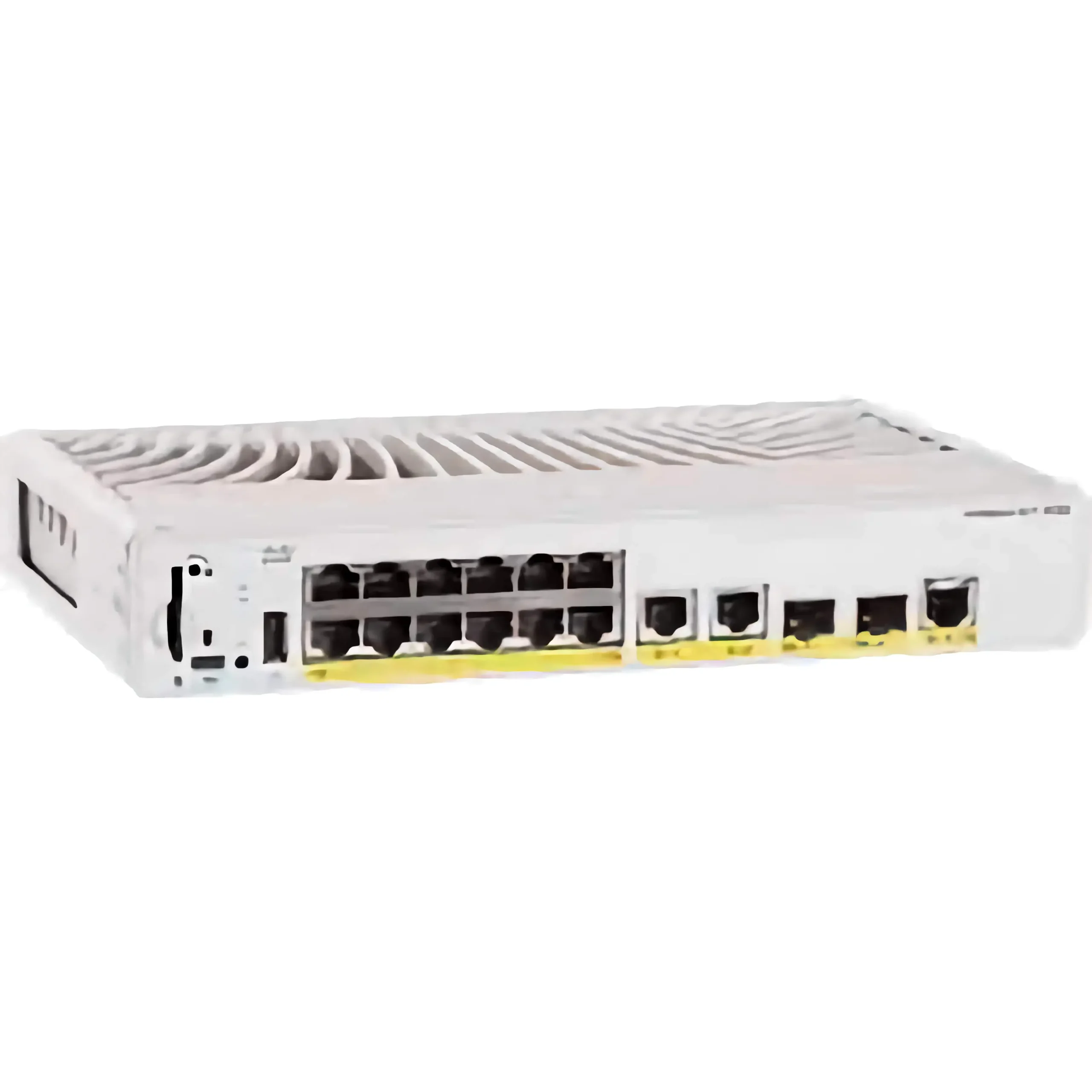

The models within the Cisco Catalyst 9200CX series comprise fixed-configuration switches designed to dissipate heat towards the top, utilizing the switch's integrated heat sink. These switches are built upon the Cisco Unified Access Data Plane 2.0 mini (UADP) architecture, providing investment protection through its flexible and programmable pipelines, while also enabling increased scalability and higher throughput. Operating on the open Cisco IOS XE Lite operating system, the platform supports model-driven programmability, robust security features, and flexible visibility.
Performance specification:
| Description | Switching capacity | Switch capacity with Stacking | Forwarding rate | Forwarding rate with Stacking |
|---|---|---|---|---|
| C9200CX-8UXG-2X-E | 128 Gbps | N/A | 95.23 Mbps | N/A |
Cisco Catalyst 9200CX Series Switch configurations:
| Switch model | Downlinks total 10/100/1000 or PoE+ copper ports | Uplink configuration | Default primary power supply | Fans |
|---|---|---|---|---|
| Compact models | ||||
| C9200CX-12T-2X2G | 12 ports data | 2x 1G copper, 1x 1G CU PD 802.3bt Class 6, 2x 10G SFP+ fixed uplinks | Powered by 802.3bt class 6 PoE Optional auxiliary 80W AC or DC power adaptor |
Fanless |
| C9200CX-12P-2X2G | 12 ports PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W AC internal | Fanless |
| C9200CX-8P-2X2G | 8 ports full PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W AC internal | Fanless |
| C9200CX-8UXG-2X-E | 8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) | 2x 10G SFP+ fixed uplinks | 315W AC internal | Fanless |
| C9200CX-12P-2XGH | 12 ports PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W HVDC/AC internal | Fanless |
| C9200CX-8P-2XGH | 8 ports full PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W HVDC/AC internal | Fanless |
| C9200CX-8UXG-2XH | 8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) | 2x 10G SFP+ fixed uplinks | 315W HVDC/AC internal | Fanles |
