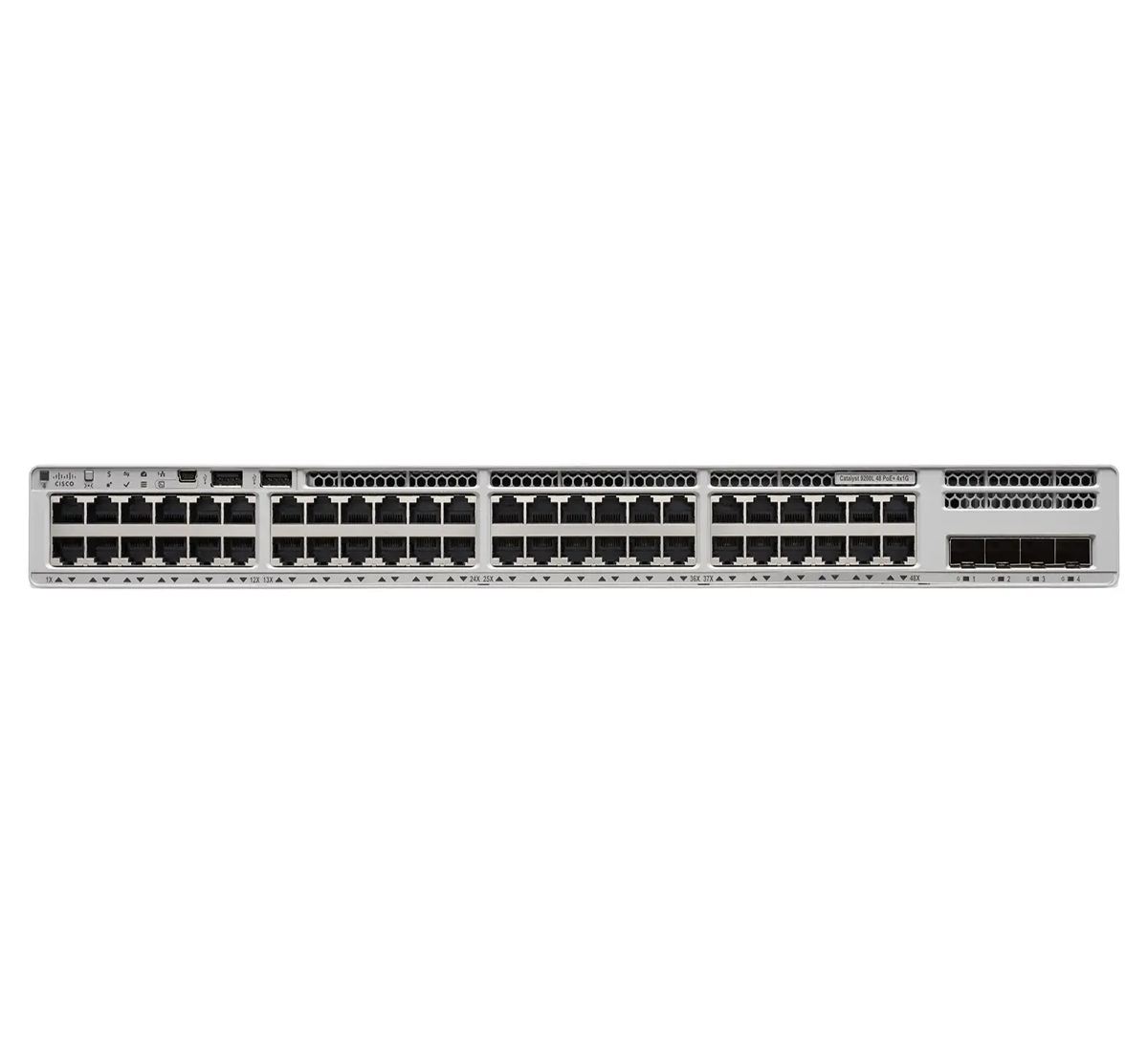

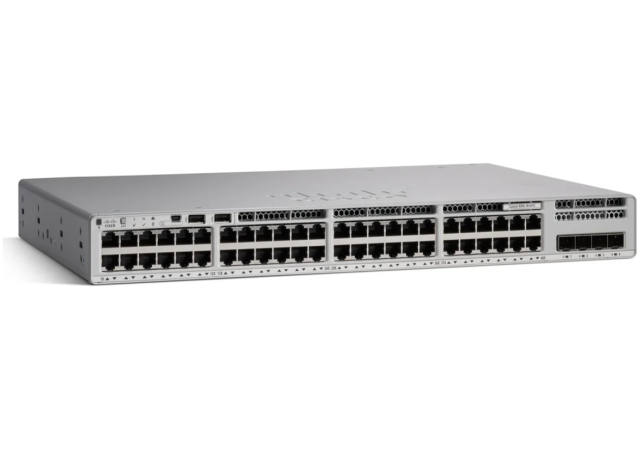

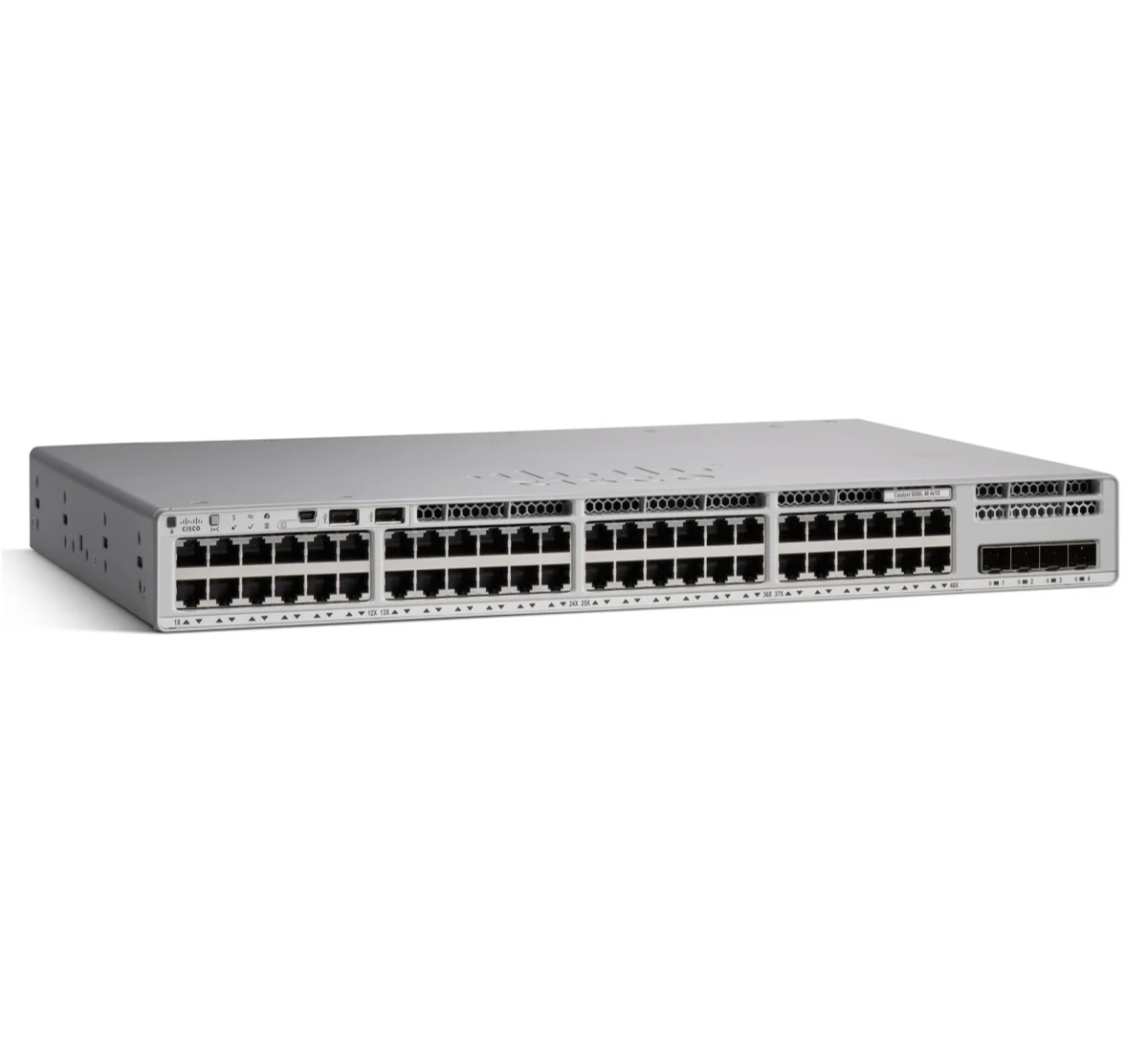

Cisco Part Number: C9200L-48T-4G-E is a Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials
The Cisco Catalyst 9200 Series switches bring the benefits of intent-based networking and Catalyst 9000 innovation to a wider range of deployments. Built on a family legacy, these switches ensure security, constant connectivity, and simplified IT operations.
Catalyst 9200 Series switches, integral to Cisco Digital Network Architecture, streamline operations, enhance IT efficiency, and cut costs. With unmatched intelligence, automation, and human expertise, Cisco stands out in delivering comprehensive solutions at every stage of your intent-based networking journey.
Catalyst 9200 Series switches ensure robust security for hardware, software, and data integrity. With Cisco IOS XE APIs, UADP ASIC technology, and features like PoE+, redundancy, and modular uplinks, these switches offer unparalleled resiliency and a progressive architecture for cost-effective branch-office access. Choose from CLI, Cisco Catalyst Center, or cloud monitoring for flexible management.
Performance specification:
Description | Switching capacity | Switch capacity with Stacking | Forwarding rate | Forwarding rate with Stacking |
---|---|---|---|---|
C9200L-48T-4G-E | 104 Gbps | 184 Gbps | 77.38 Mpps | 137 Mpps |
Cisco Catalyst 9200 Series Switch configurations:
Switch model | Downlinks total 10/100/1000 or PoE+ copper ports | Uplink configuration | Default primary power supply | Fans |
---|---|---|---|---|
Fixed uplink models | ||||
C9200L-24T-4G | 24 ports data | 4x 1G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
C9200L-24P-4G | 24 ports full PoE+ | 4x 1G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
C9200L-48T-4G-E | 48 ports data | 4x 1G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
C9200L-48P-4G | 48 ports full POE+ | 4x 1G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
C9200L-48PL-4G | 48 Ports partial PoE+ | 4X 1G Fixed uplinks | PWR-C5-600WAC | Fixed redundant |
C9200L-24T-4X | 24 ports data | 4x 1/10G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
C9200L-24P-4X | 24 ports full PoE+ | 4x 1/10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
C9200L-48T-4X | 48 ports data | 4x 1/10G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
C9200L-48P-4X | 48 ports full PoE+ | 4x 1/10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
C9200L-48PL-4X | 48 Port partial PoE+ | 4X 1/10G Fixed uplinks | PWR-C5-600WAC | Fixed redundant |
C9200L-24PXG-4X | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 4x 1/10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
C9200L-48PXG-4X | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 4x 1/10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
C9200L-24PXG-2Y | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 2x 1/10/25G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
C9200L-48PXG-2Y | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 2x 1/10/25G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
