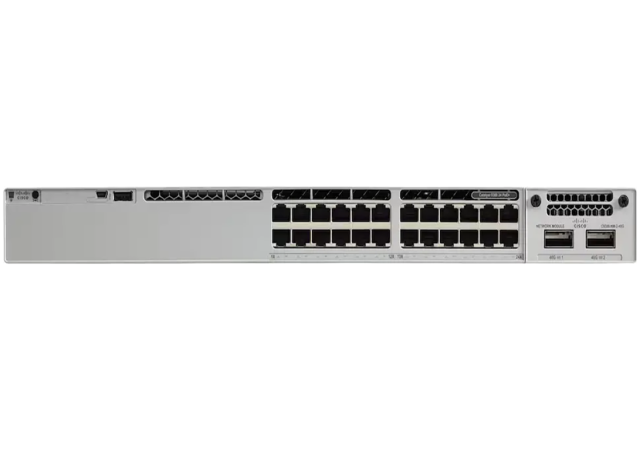

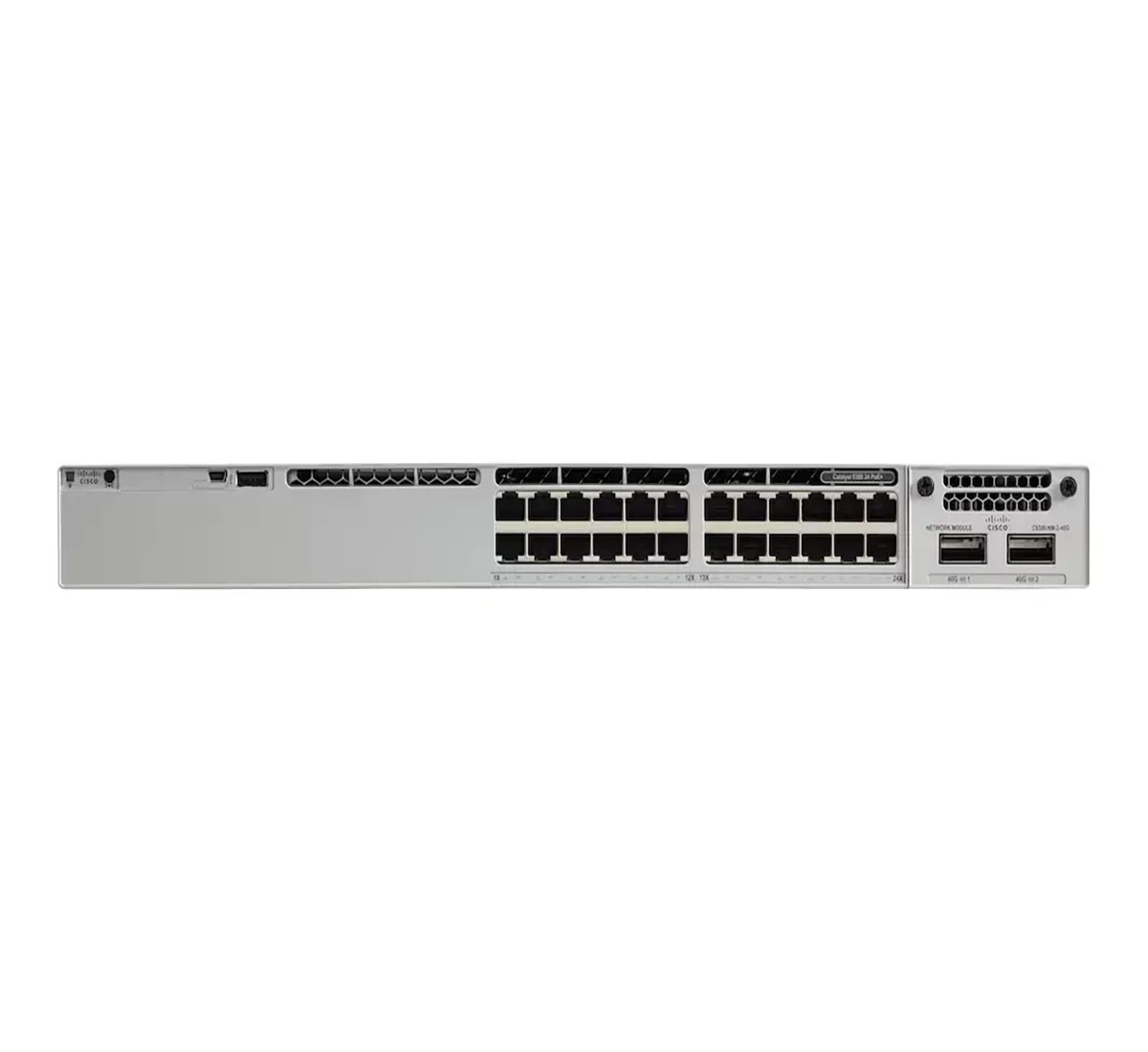

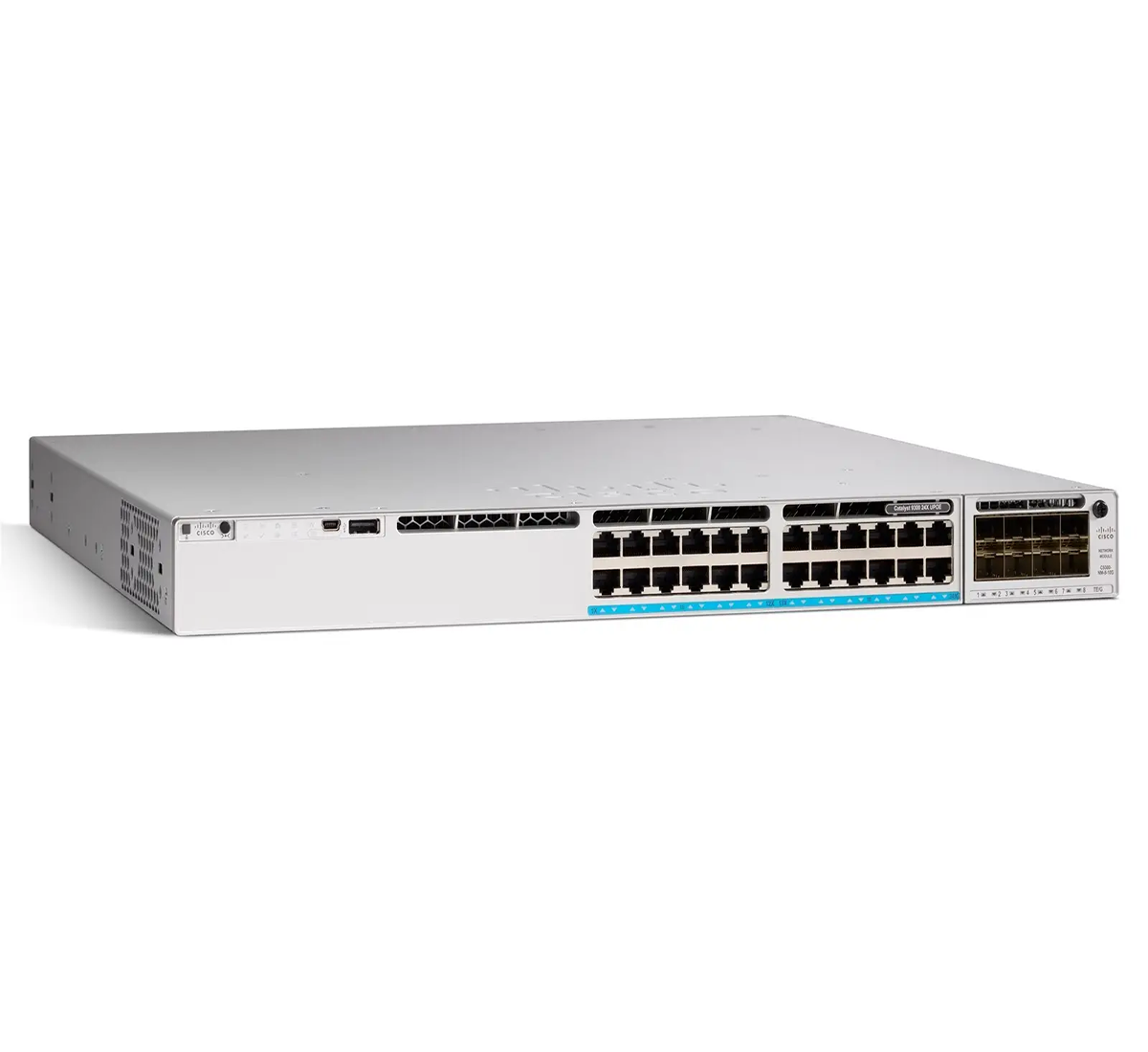

Cisco Part Number: C9300-24UX-A is a Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE, Network Advantage
Cisco's Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.
Key industry-first features:
Cisco Catalyst C9300-24UX switch configuration:
Model |
Total 10/100/1000, Multigigabit copper or SFP Fiber |
Uplink Configuration |
Default AC power supply |
---|---|---|---|
C9300-24UX-A |
24 port Multigigabit Cisco UPOE |
Modular Uplinks |
1100W AC |
Power supply configurations:
Models |
Primary Power Supply |
Default or Upgrade |
Available PoE |
With 350W Secondary PS |
With 715W secondary PS |
With 1100W Secondary PS |
With 1900W Secondary PS |
---|---|---|---|---|---|---|---|
C9300-24UX-A |
PWR-C1-1900WAC-P |
Upgrade |
1360W |
1440W* |
1440W* |
1440W* |
1440W* |
PWR-C1-1100WAC-P |
Default |
560W |
910W |
1275W |
1440W* |
1440W* |
*Limited by port number and port rating (e.g. 24 PoE+ 30W ports = 720W)
Bandwidth specification:
SKU |
Switching capacity |
Switching capacity with stacking |
Forwarding rate |
Forwarding rate with stacking |
---|---|---|---|---|
C9300-24UX-A |
640 Gbps |
1120 Gbps |
476.19 Mpps |
833.33 Mpps |
