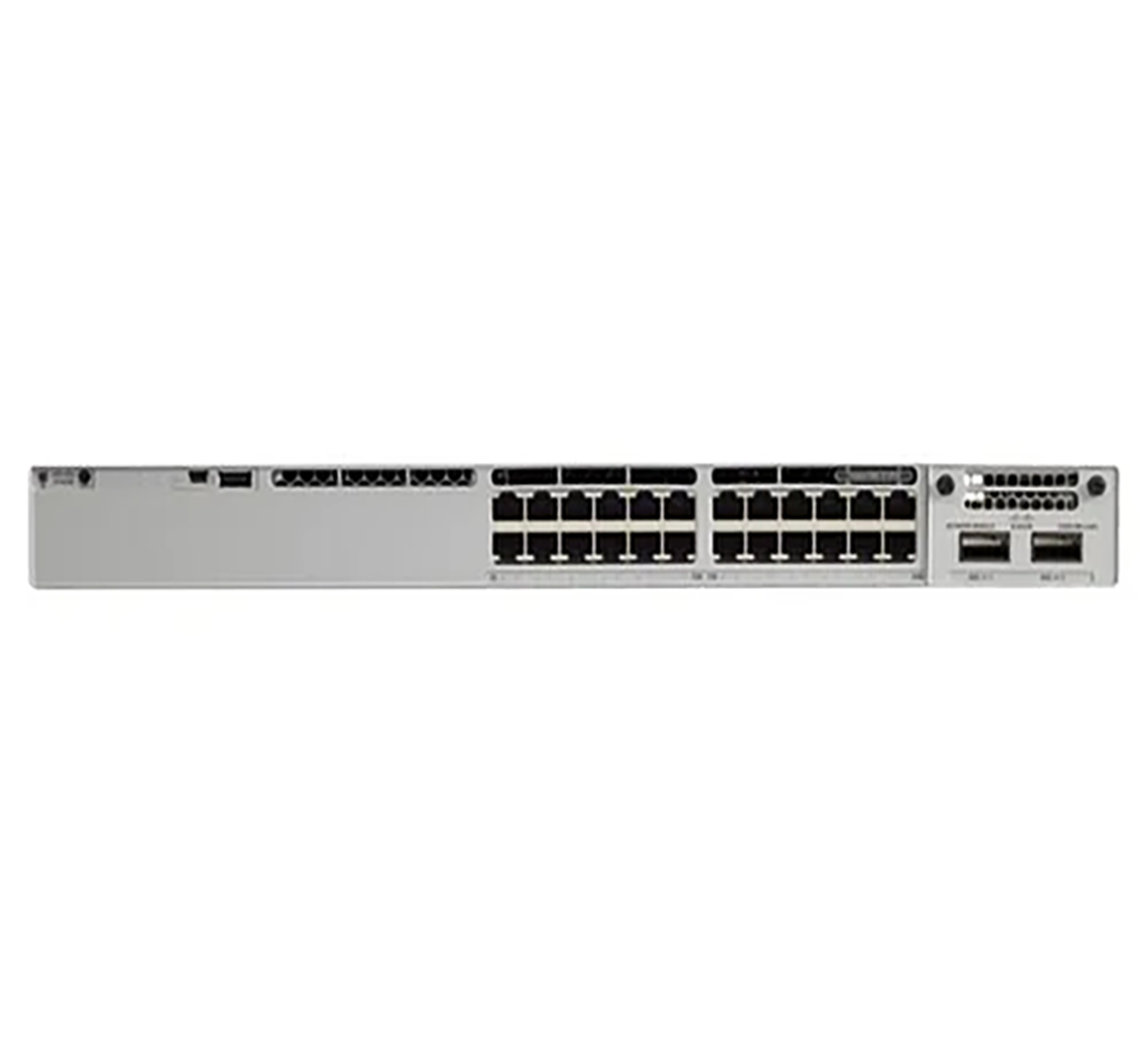

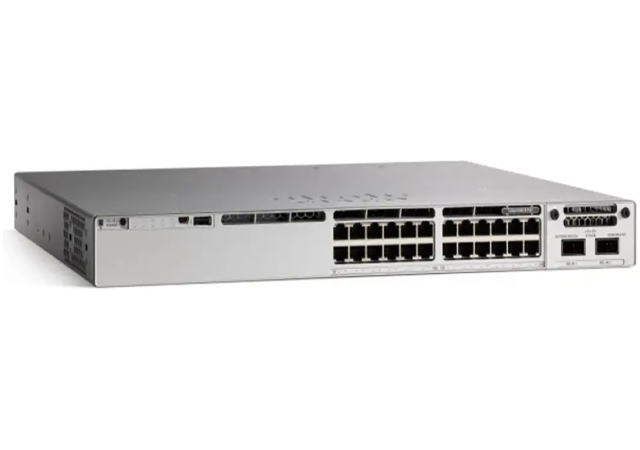

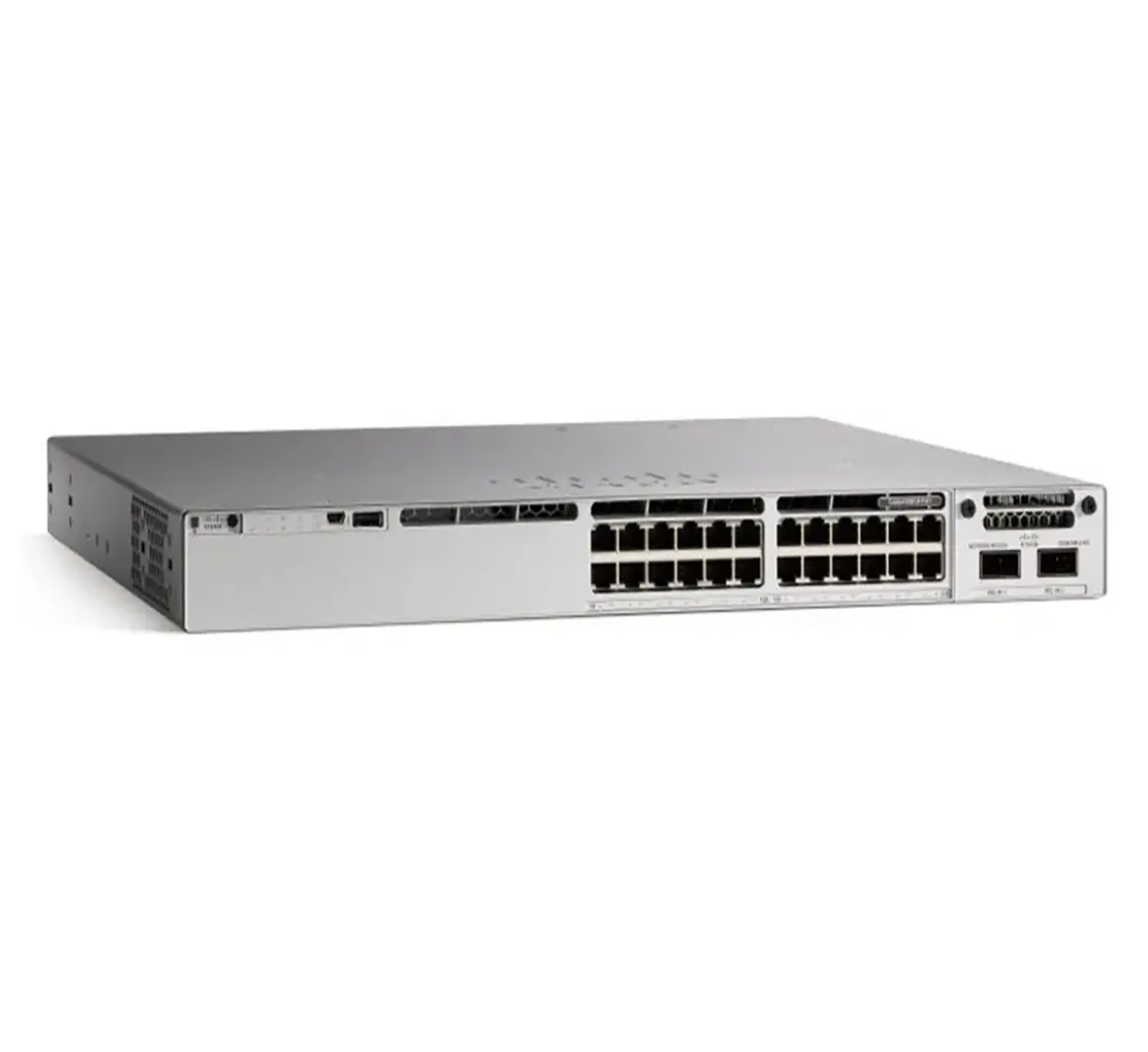

Cisco Catalyst C9300L-24UXG-2Q-E - Access Switch

Brand: Cisco MPN: C9300L-24UXG-2Q-E
Available on request
Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials

£5,742.16

£6,890.59 Incl VAT

Need Help Ordering?

Call 020 3880 8840

Add to Quote
Description
Tech overview

Cisco Part Number: C9300L-24UXG-2Q-E is a Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials

Cisco’s Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.

Key industry-first features:

  • Stacking Bandwidth: Catalyst 9300 offers 1TB stacking bandwidth, the highest-density solution with versatile uplink options.
  • Uplink Variety: Modular uplinks include 100G, 40G, 25G, Multigigabit, 10G, and 1G for flexibility.
  • Mixed Stacking: Enables stacking of Catalyst 9300X with backward compatibility, introducing high-speed fiber to access.
  • Multigigabit Ports: Catalyst 9300X models support 48 standalone and 448 with an 8-member stack, offering the highest Multigigabit ports.
  • UPOE+ Density: Supports up to 36 standalone or 288 ports with an 8-member stack, ensuring high-density UPOE+ for OT/IT needs.
  • Stack Power Compatibility: Catalyst 9300X supports Stack Power with backward compatibility, ensuring power resiliency.
  • 100G IPsec: Utilizing the 2.0Sec UADP ASIC, Catalyst 9300X provides 100G line rate IPsec for enhanced edge connectivity.
  • Secure Tunnel Connectivity: Facilitates secure connections to Internet Gateways, Cloud Service Providers, and Site to Site with speeds up to 100G.
  • Enhanced Application Hosting: Increased capacity, additional RAM, QAT, and 2 x 10G AppGig Ports for hosting multiple performance-savvy Cisco Signed applications.
  • ThousandEyes Enabled: End-to-end visualization from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses).
  • Investment Protection: Catalyst 9300X redundant fans, power supplies, data stack, and StackPower cables are backward compatible with the Catalyst 9300.

Cisco Catalyst C9300L-24UXG-2Q switch configuration:

Model

Total 10/100/1000, Multigigabit copper or SFP Fiber

Uplink Configuration

Default AC power supply

C9300L-24UXG-2Q-E

24 port Cisco UPOE, 8 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M)

2x 40G fixed uplinks

1100W AC



Power supply configurations:

Model

Primary power supply

Default or Upgrade

Available PoE power

With 350W Secondary PS

With 715W Secondary PS

With 1100W Secondary PS

C9300L-24UXG-2Q-E

PWR-C1-1100WAC-P

Default

722W

1072W

1440W

1440W*

*Limited by port number and port rating (e.g. 24 PoE+ 30W ports = 720W)



Bandwidth specification:

SKU

Switching capacity

Switching capacity with stacking

Forwarding rate

Forwarding rate with stacking

C9300L-24UXG-2Q-E

352 Gbps

672 Gbps

261.90 Mpps

500.00 Mpps
