BRAND: Cisco

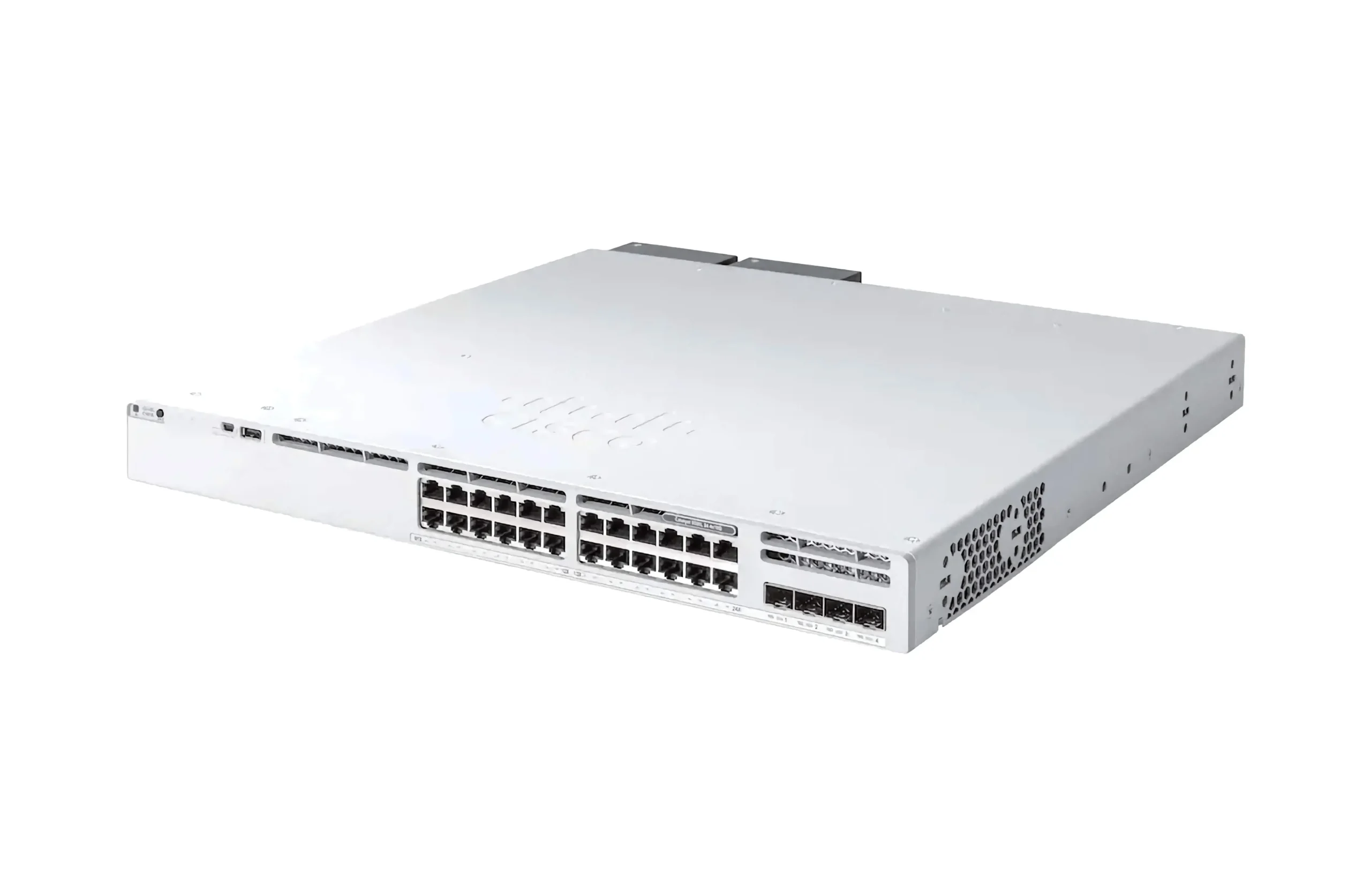

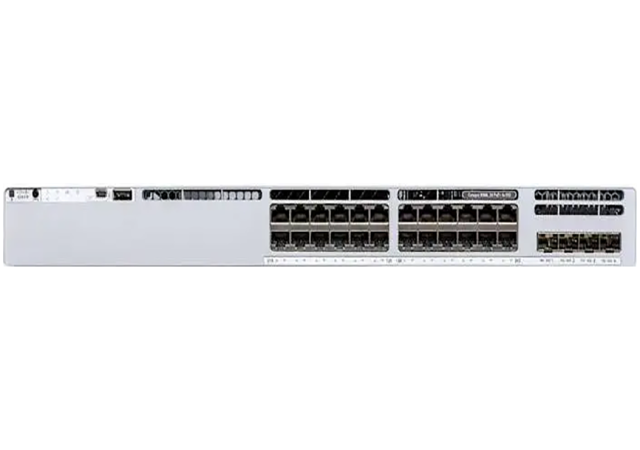

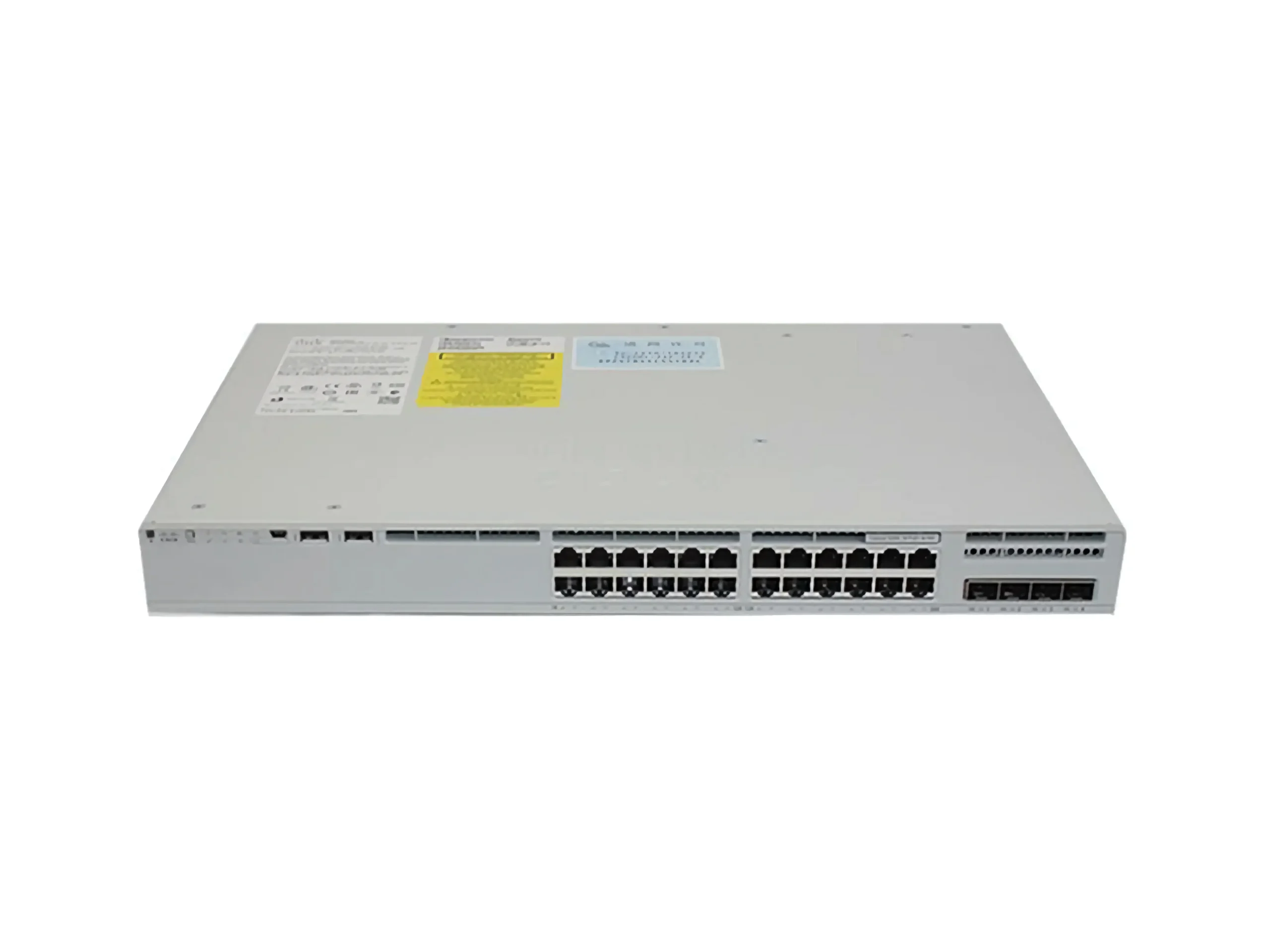

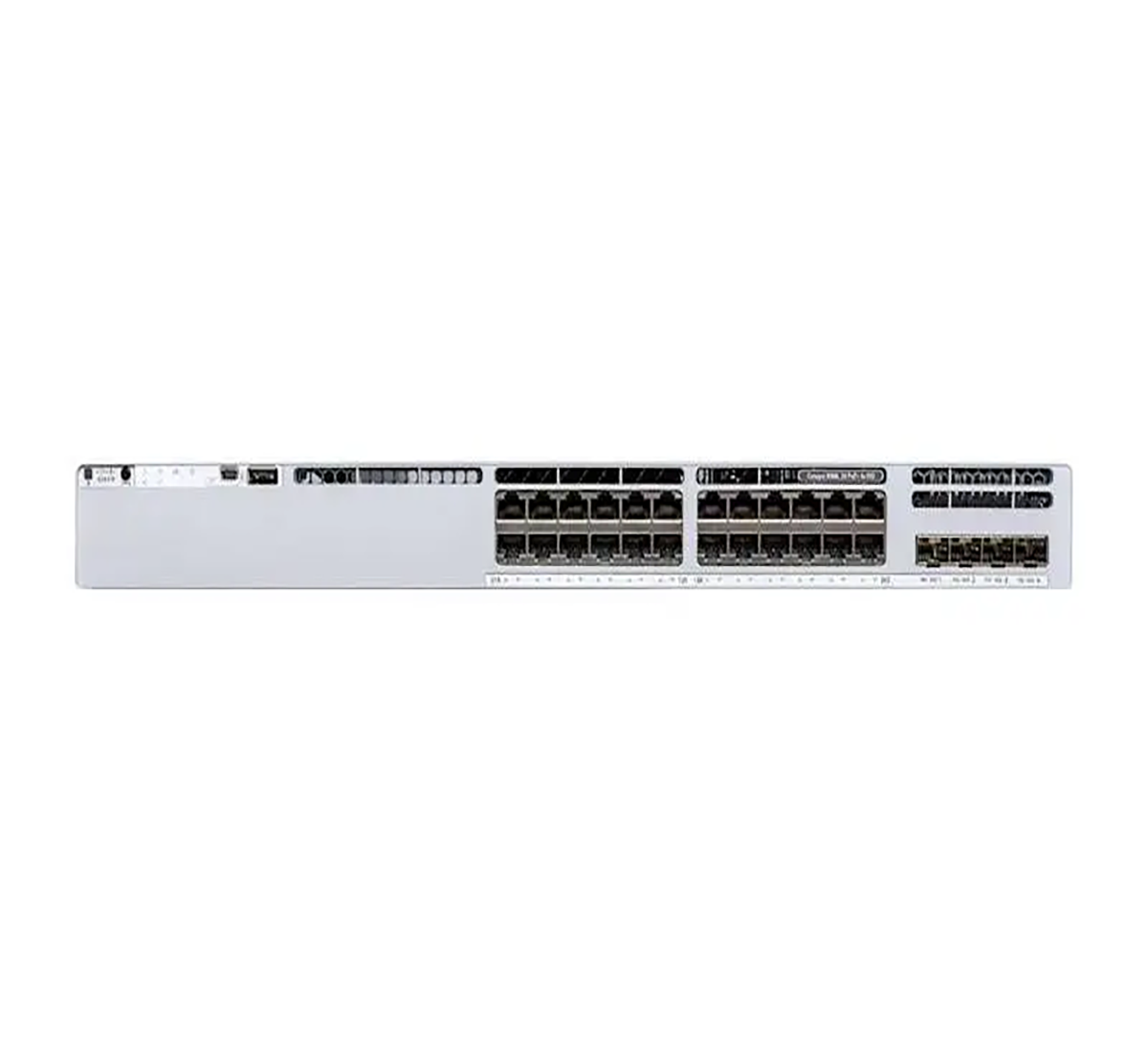

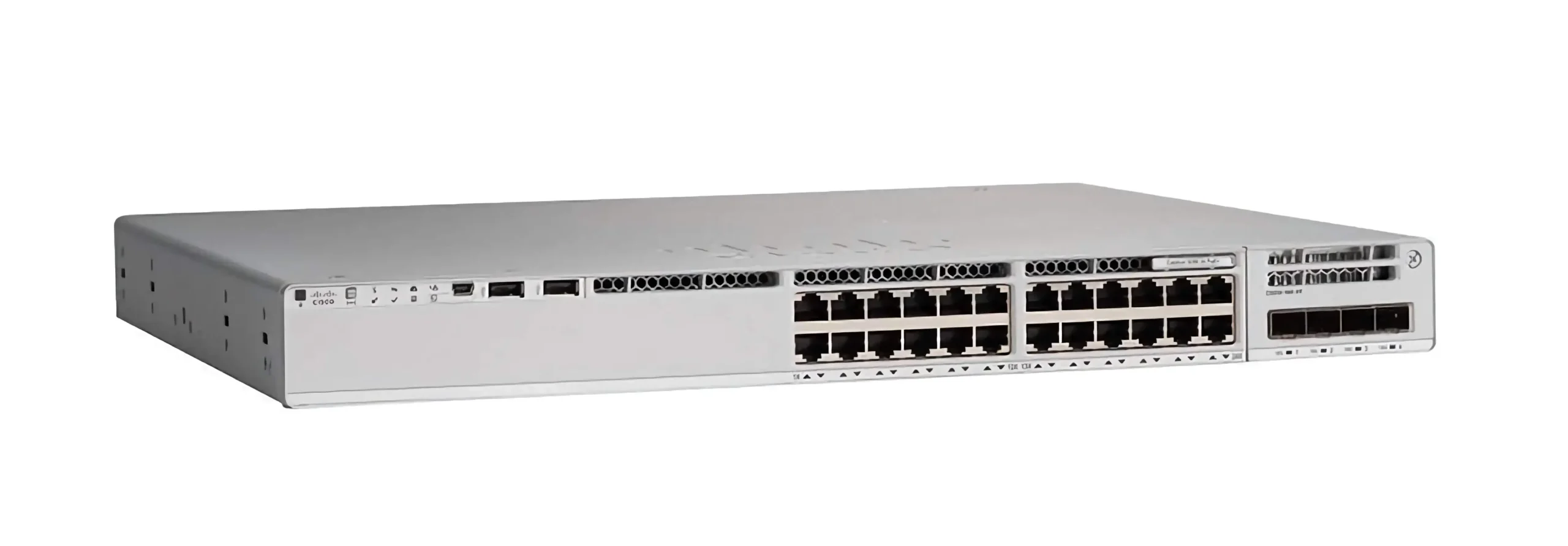

Cisco Catalyst C9300LM-24U-4Y-A - Access Switch

MPN: C9300LM-24U-4Y-A
£4,139.17
£4,967.00 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Links & Documents

Cisco Part Number: C9300LM-24U-4Y-A is a Catalyst 9300 mini 24-port 1G UPOE, 4x 25G uplinks, Network Advantage

Cisco's Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.

Key industry-first features:

  • Stacking Bandwidth: Catalyst 9300 offers 1TB stacking bandwidth, the highest-density solution with versatile uplink options.
  • Uplink Variety: Modular uplinks include 100G, 40G, 25G, Multigigabit, 10G, and 1G for flexibility.
  • Mixed Stacking: Enables stacking of Catalyst 9300X with backward compatibility, introducing high-speed fiber to access.
  • Multigigabit Ports: Catalyst 9300X models support 48 standalone and 448 with an 8-member stack, offering the highest Multigigabit ports.
  • UPOE+ Density: Supports up to 36 standalone or 288 ports with an 8-member stack, ensuring high-density UPOE+ for OT/IT needs.
  • Stack Power Compatibility: Catalyst 9300X supports Stack Power with backward compatibility, ensuring power resiliency.
  • 100G IPsec: Utilizing the 2.0Sec UADP ASIC, Catalyst 9300X provides 100G line rate IPsec for enhanced edge connectivity.
  • Secure Tunnel Connectivity: Facilitates secure connections to Internet Gateways, Cloud Service Providers, and Site to Site with speeds up to 100G.
  • Enhanced Application Hosting: Increased capacity, additional RAM, QAT, and 2 x 10G AppGig Ports for hosting multiple performance-savvy Cisco Signed applications.
  • ThousandEyes Enabled: End-to-end visualization from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses).
  • Investment Protection: Catalyst 9300X redundant fans, power supplies, data stack, and StackPower cables are backward compatible with the Catalyst 9300.

Cisco Catalyst C9300LM-24U-4Y switch configuration:

Model

Total 10/100/1000, Multigigabit copper or SFP Fiber

Uplink Configuration

Default AC power supply

C9300LM-24U-4Y-A

24 port 1G (1G/100M/10M) with Cisco UPOE

4x25G fixed uplinks

600W AC



Power supply configurations:

Model

Primary power supply

Default or Upgrade

Available PoE power

With 600W AC Secondary PS

With 715W DC Secondary PS

With 1000W AC Secondary PS

C9300LM-24U-4Y-A

PWR-C6-1KWAC

Upgrade

820W

1420W

1440W*

1440W*

PWR-C6-600WAC

Default

420W

1020W

1135W

1420W



Bandwidth specification:

SKU

Switching capacity

Switching capacity with stacking

Forwarding rate

Forwarding rate with stacking

C9300LM-24U-4Y-A

248 Gbps

568 Gbps

184.51 Mpps

422.59 Mpps
