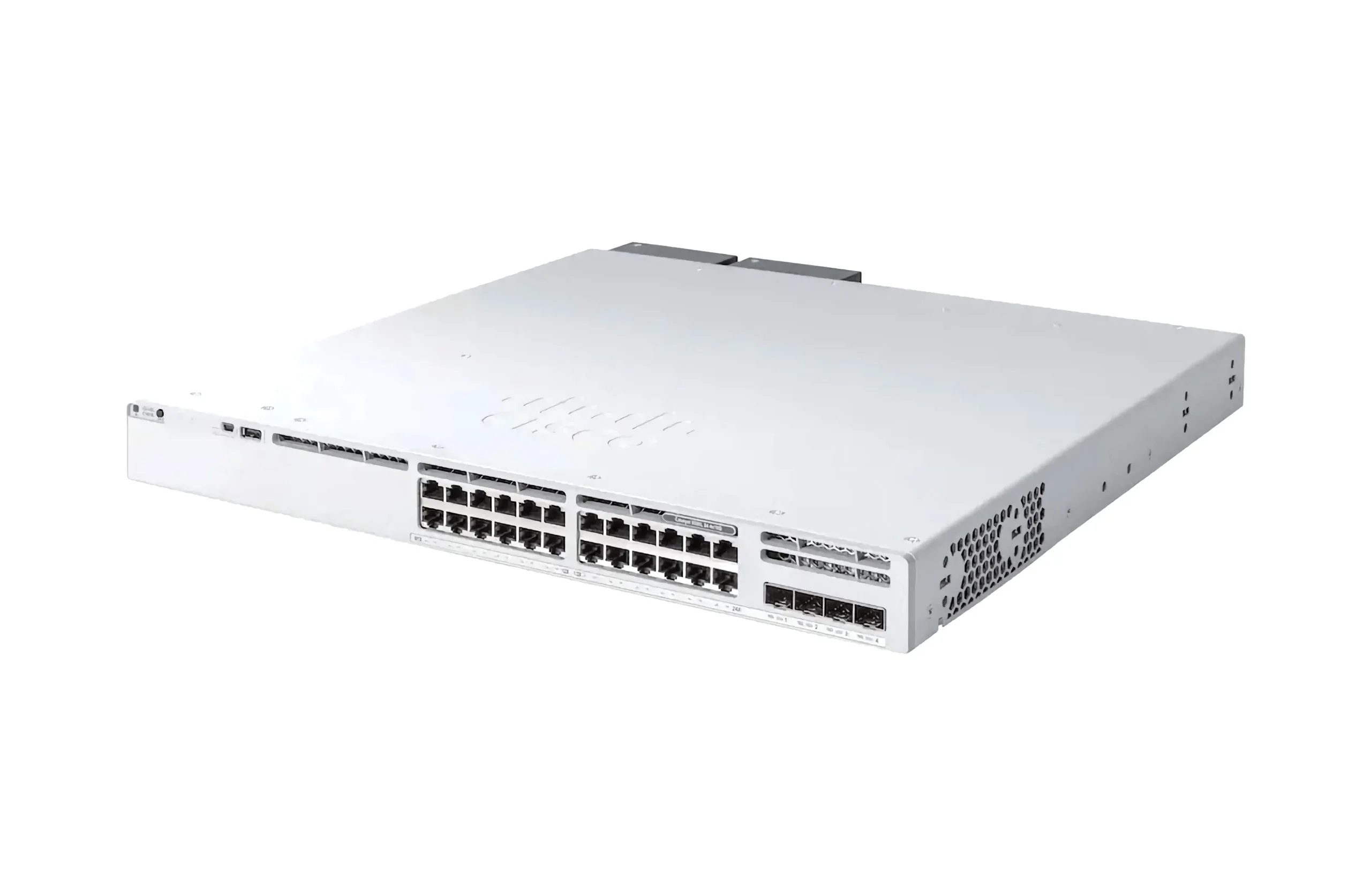

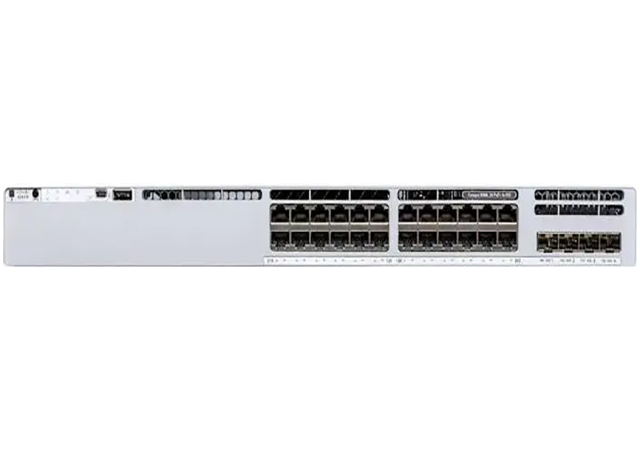

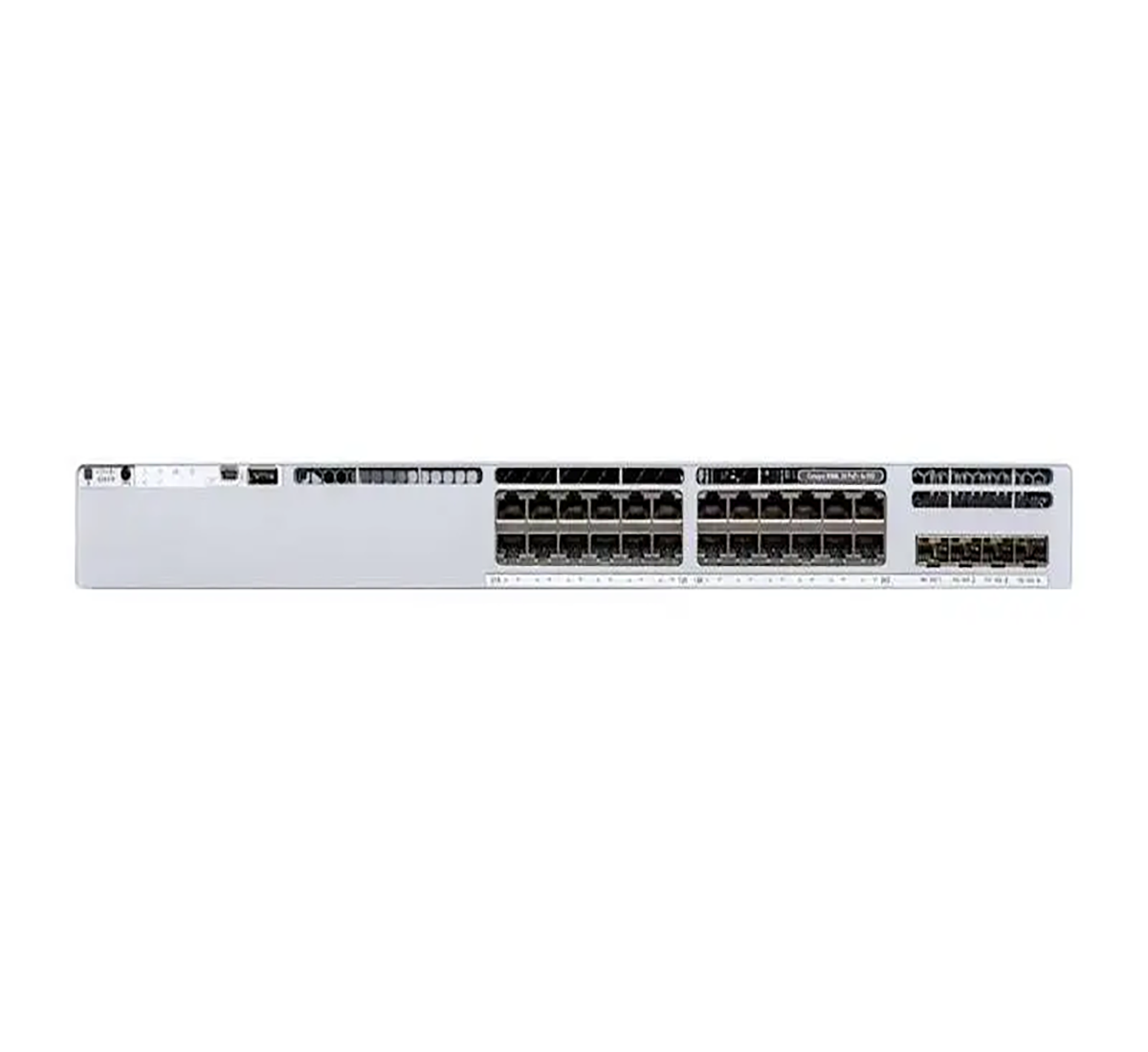

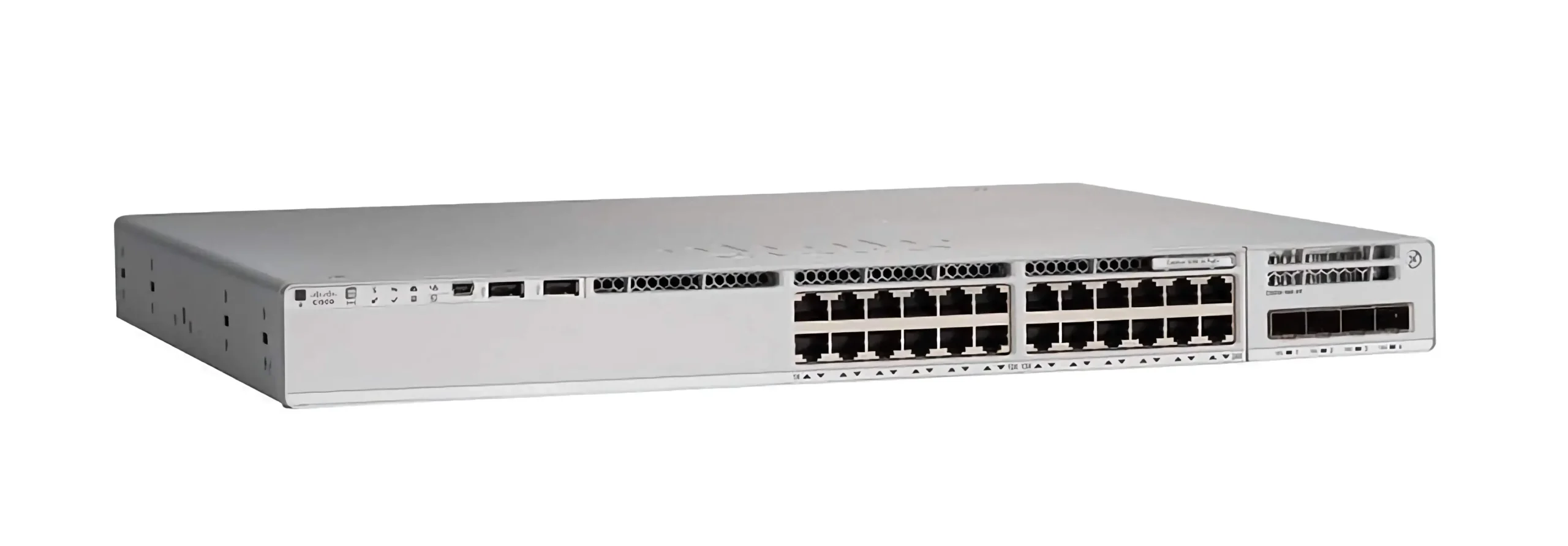

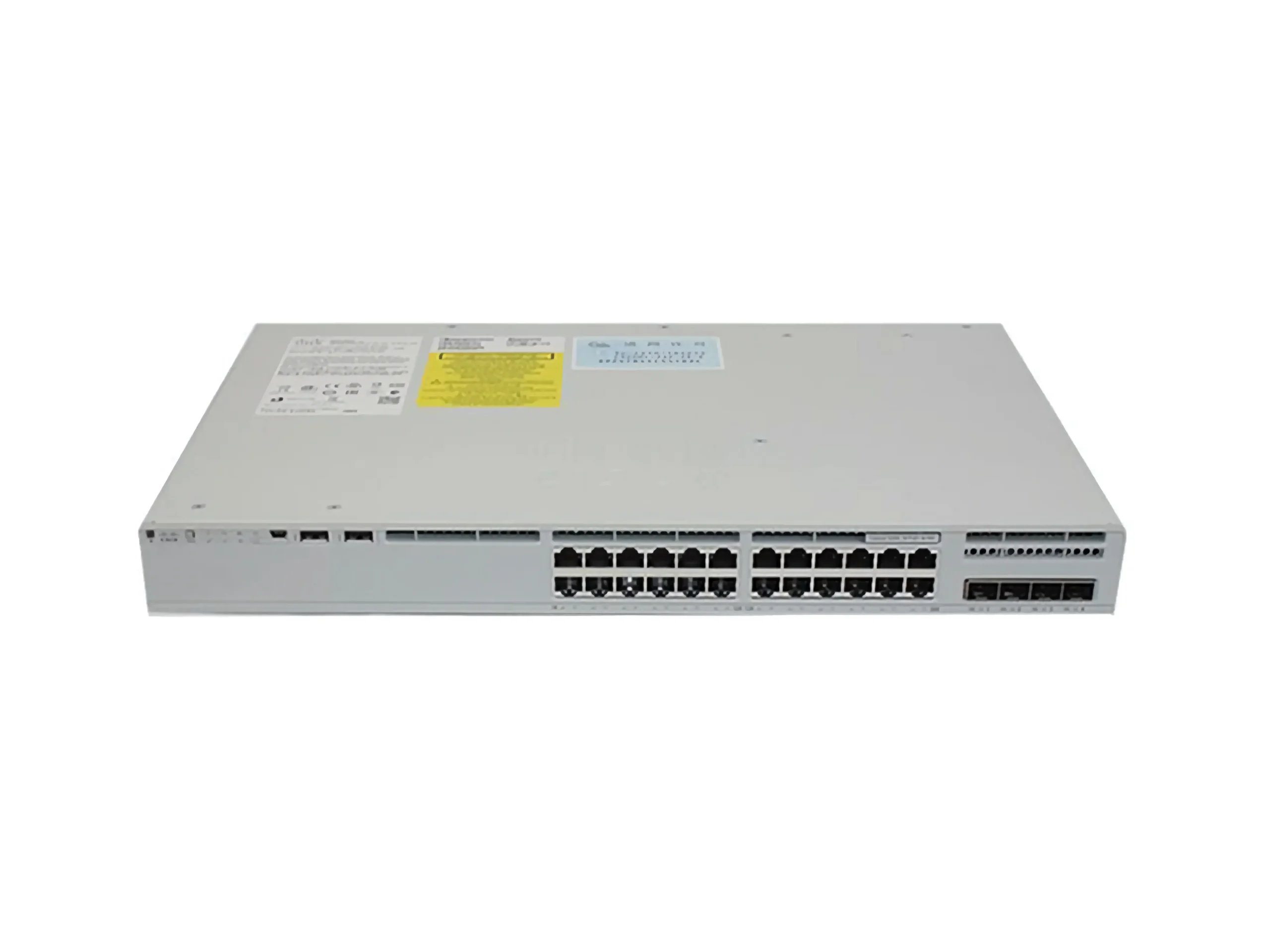

Cisco Part Number: C9300LM-24U-4Y-E is a Catalyst 9300 mini 24-port 1G UPOE, 4x 25G uplinks, Network Essentials
Cisco's Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.
Key industry-first features:
Cisco Catalyst C9300LM-24U-4Y switch configuration:
Model |
Total 10/100/1000, Multigigabit copper or SFP Fiber |
Uplink Configuration |
Default AC power supply |
---|---|---|---|
C9300LM-24U-4Y-E |
24 port 1G (1G/100M/10M) with Cisco UPOE |
4x25G fixed uplinks |
600W AC |
Power supply configurations:
Model |
Primary power supply |
Default or Upgrade |
Available PoE power |
With 600W AC Secondary PS |
With 715W DC Secondary PS |
With 1000W AC Secondary PS |
---|---|---|---|---|---|---|
C9300LM-24U-4Y-E |
PWR-C6-1KWAC |
Upgrade |
820W |
1420W |
1440W* |
1440W* |
PWR-C6-600WAC |
Default |
420W |
1020W |
1135W |
1420W |
* Limited by port number and port rating (e.g. 24 UPOE 60W ports = 1440W)
Bandwidth specification:
SKU |
Switching capacity |
Switching capacity with stacking |
Forwarding rate |
Forwarding rate with stacking |
---|---|---|---|---|
C9300LM-24U-4Y-E |
248 Gbps |
568 Gbps |
184.51 Mpps |
422.59 Mpps |
