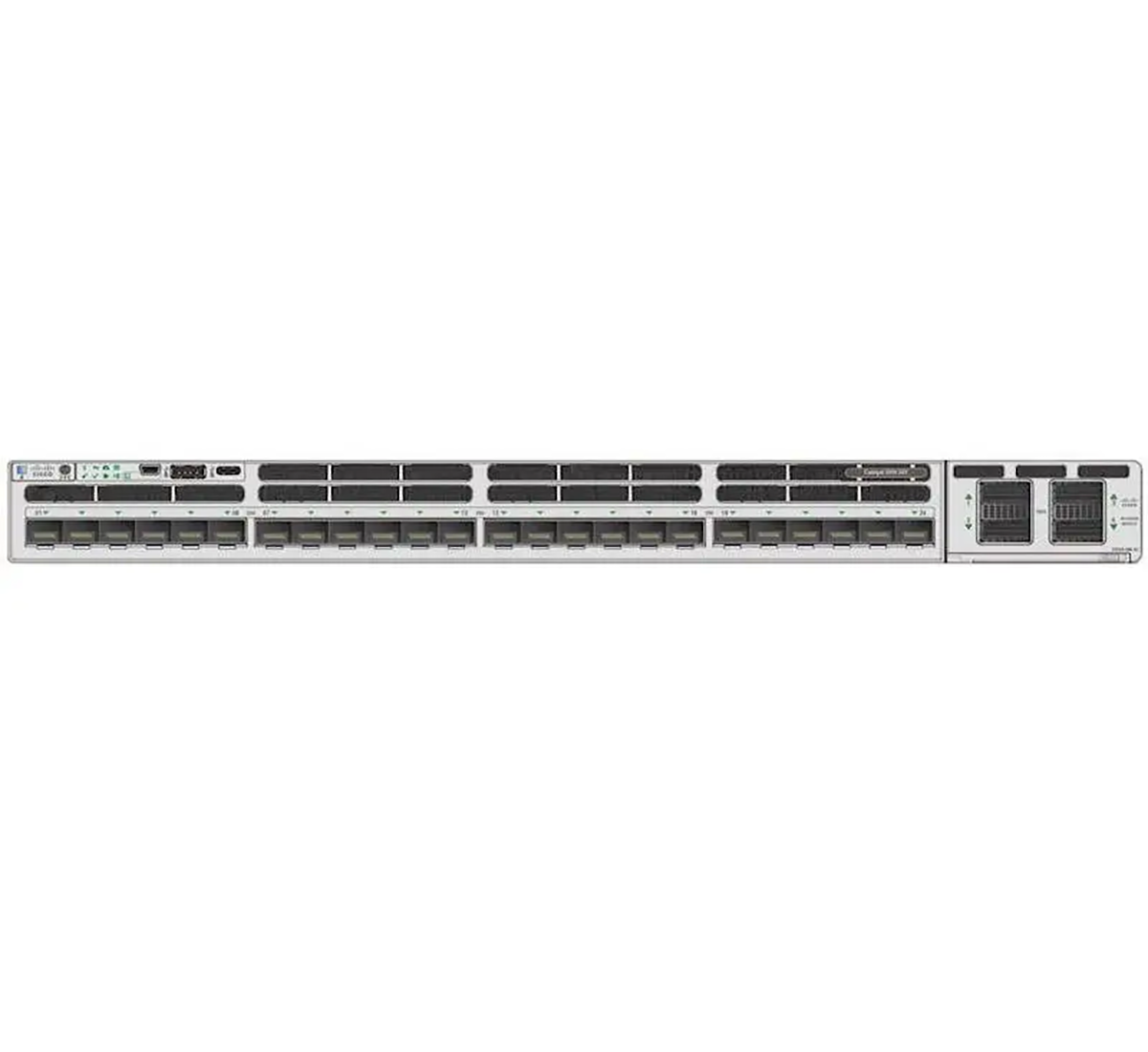

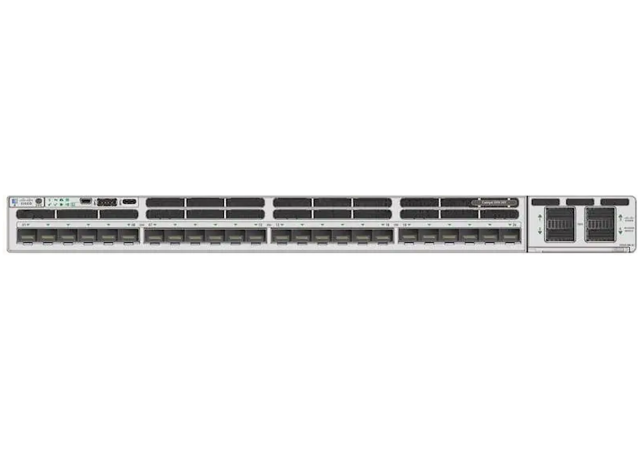

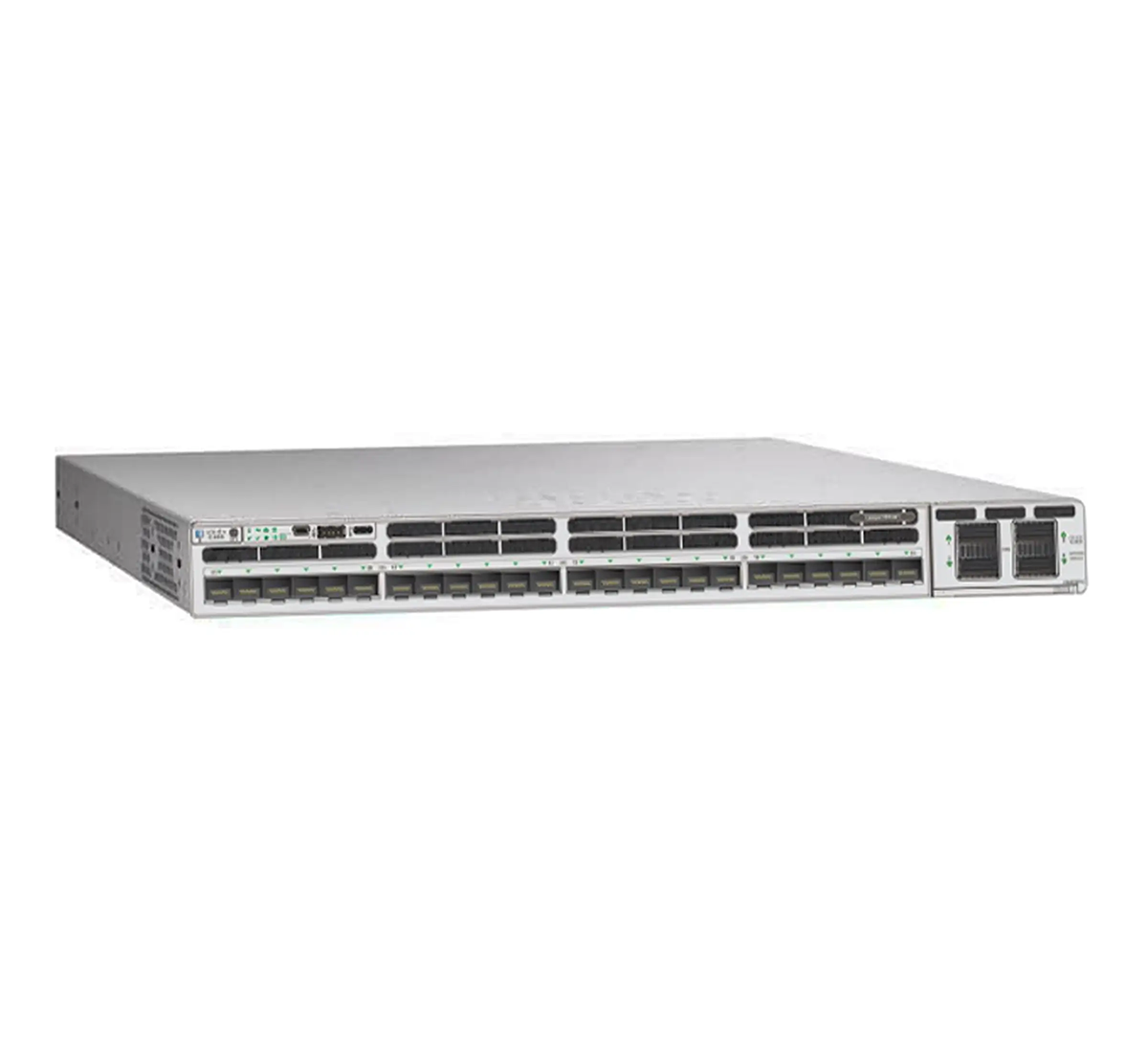

Cisco Part Number: C9300X-24Y-E is a Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials
Cisco’s Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.
Key industry-first features:
- Stacking Bandwidth: Catalyst 9300 offers 1TB stacking bandwidth, the highest-density solution with versatile uplink options.
- Uplink Variety: Modular uplinks include 100G, 40G, 25G, Multigigabit, 10G, and 1G for flexibility.

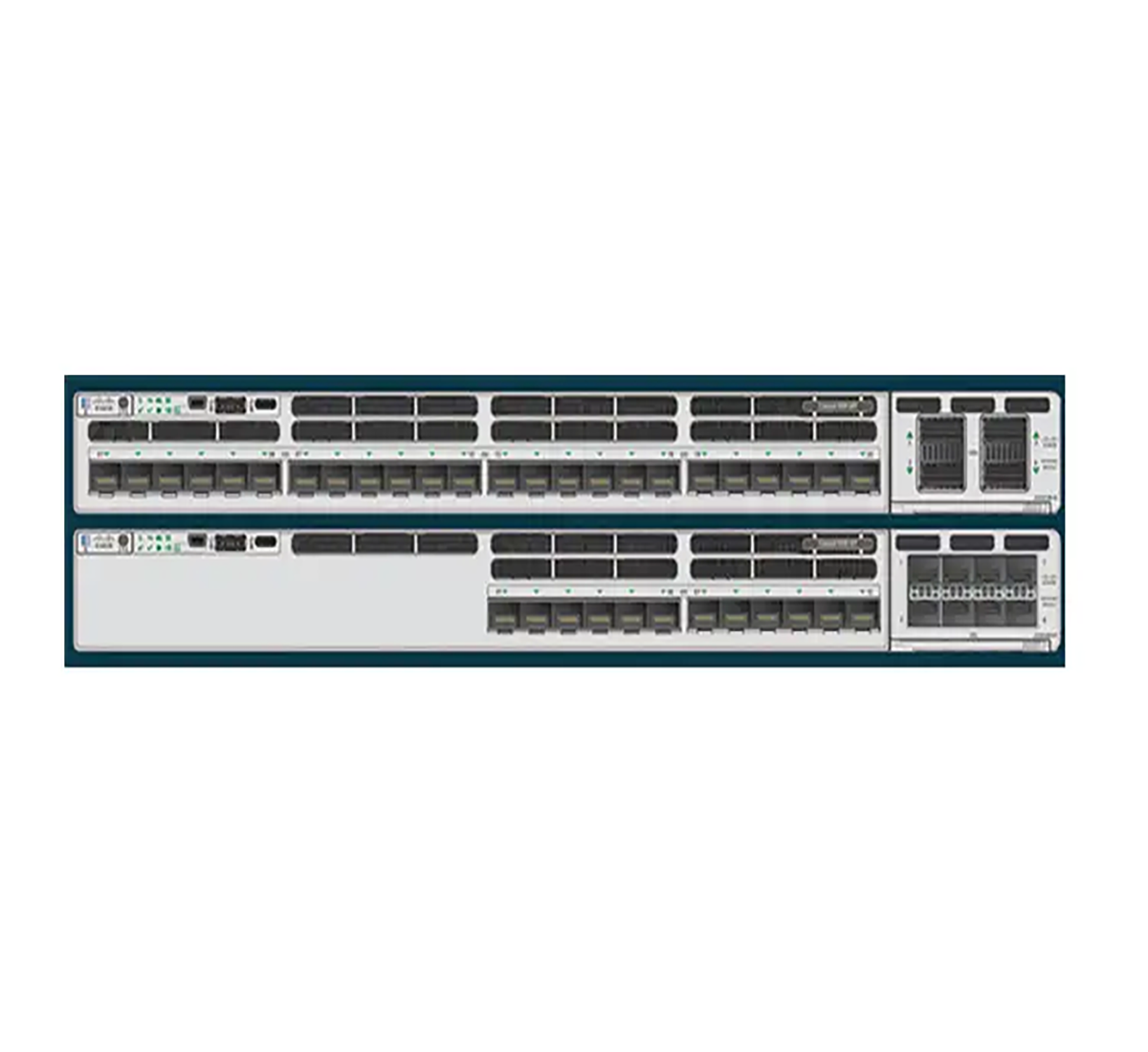

- Mixed Stacking: Enables stacking of Catalyst 9300X with backward compatibility, introducing high-speed fiber to access.
- Multigigabit Ports: Catalyst 9300X models support 48 standalone and 448 with an 8-member stack, offering the highest Multigigabit ports.
- UPOE+ Density: Supports up to 36 standalone or 288 ports with an 8-member stack, ensuring high-density UPOE+ for OT/IT needs.
- Stack Power Compatibility: Catalyst 9300X supports Stack Power with backward compatibility, ensuring power resiliency.
- 100G IPsec: Utilizing the 2.0Sec UADP ASIC, Catalyst 9300X provides 100G line rate IPsec for enhanced edge connectivity.
- Secure Tunnel Connectivity: Facilitates secure connections to Internet Gateways, Cloud Service Providers, and Site to Site with speeds up to 100G.
- Enhanced Application Hosting: Increased capacity, additional RAM, QAT, and 2 x 10G AppGig Ports for hosting multiple performance-savvy Cisco Signed applications.
- ThousandEyes Enabled: End-to-end visualization from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses).
- Investment Protection: Catalyst 9300X redundant fans, power supplies, data stack, and StackPower cables are backward compatible with the Catalyst 9300.
Cisco Catalyst C9300X-24Y switch configuration:
Model |
Total 10/100/1000, Multigigabit copper or SFP Fiber |
Uplink Configuration |
Default AC power supply |
C9300X-24Y-E |
24 port 25G/10G/1G SFP28 |
Modular Uplinks |
715W AC |
Power supply configurations:
Models |
Primary Power Supply |
Default or Upgrade |
Available PoE |
With 350W Secondary PS |
With 715W secondary PS |
With 1100W Secondary PS |
With 1900W Secondary PS |
C9300X-24Y-E |
PWR-C1-715WAC-P |
Default |
No POE |
No POE |
No POE |
No POE |
No POE |
Bandwidth specification:
SKU |
Switching capacity |
Switching capacity with stacking |
Forwarding rate |
Forwarding rate with stacking |
C9300X-24Y-E |
2,000 Gbps |
3,000 Gbps |
1488 Mpps |
2232 Mpps |
