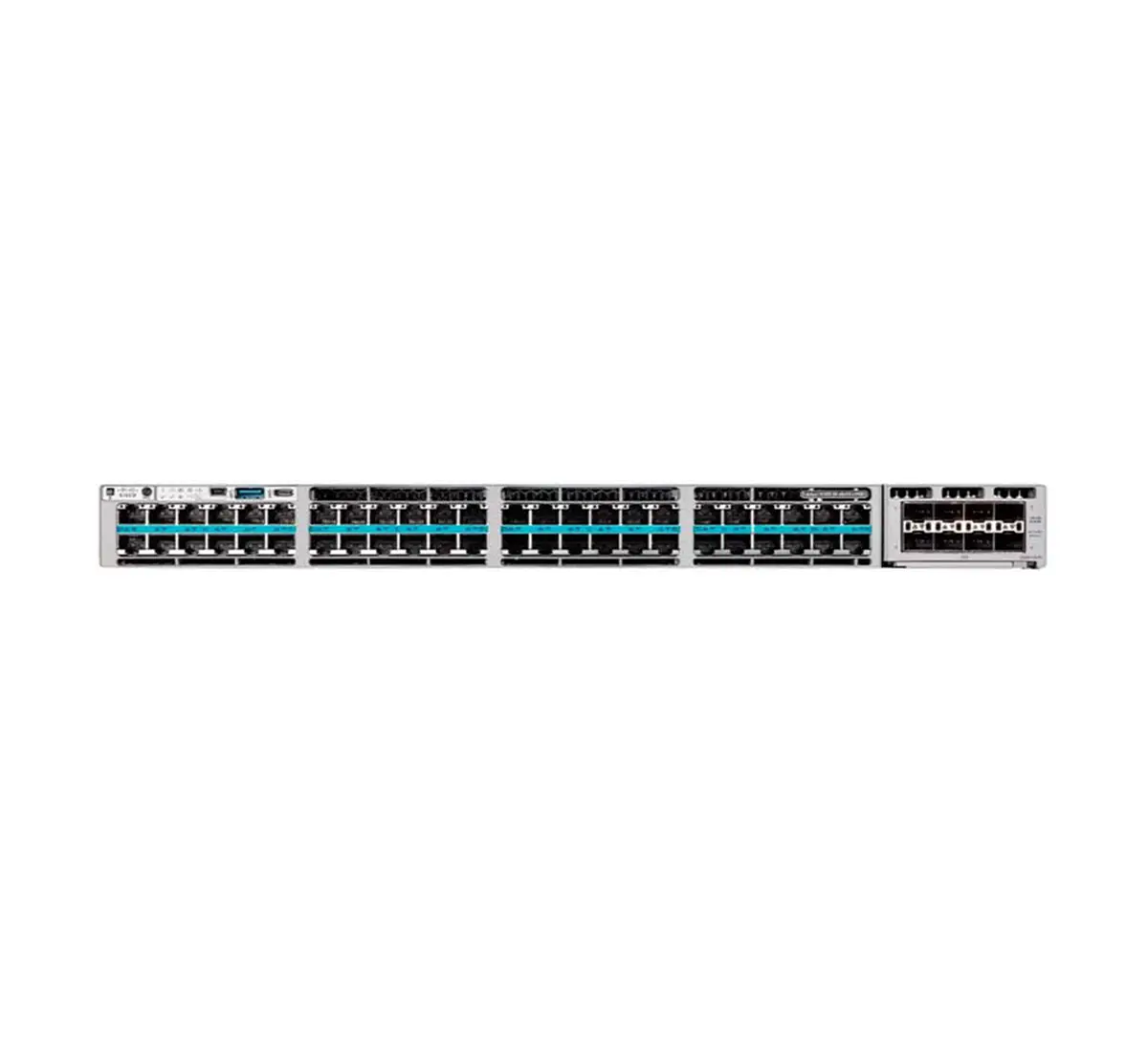

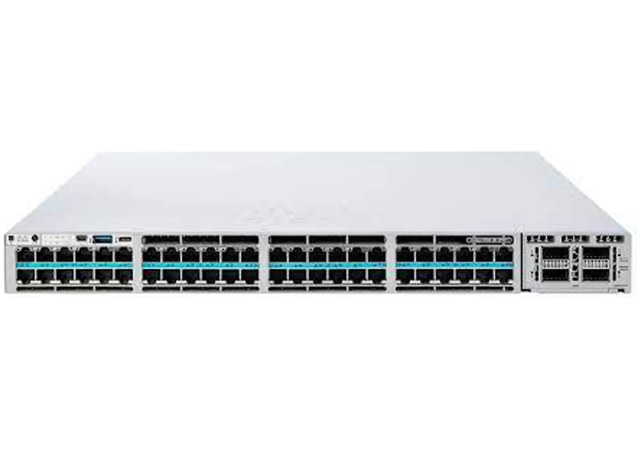

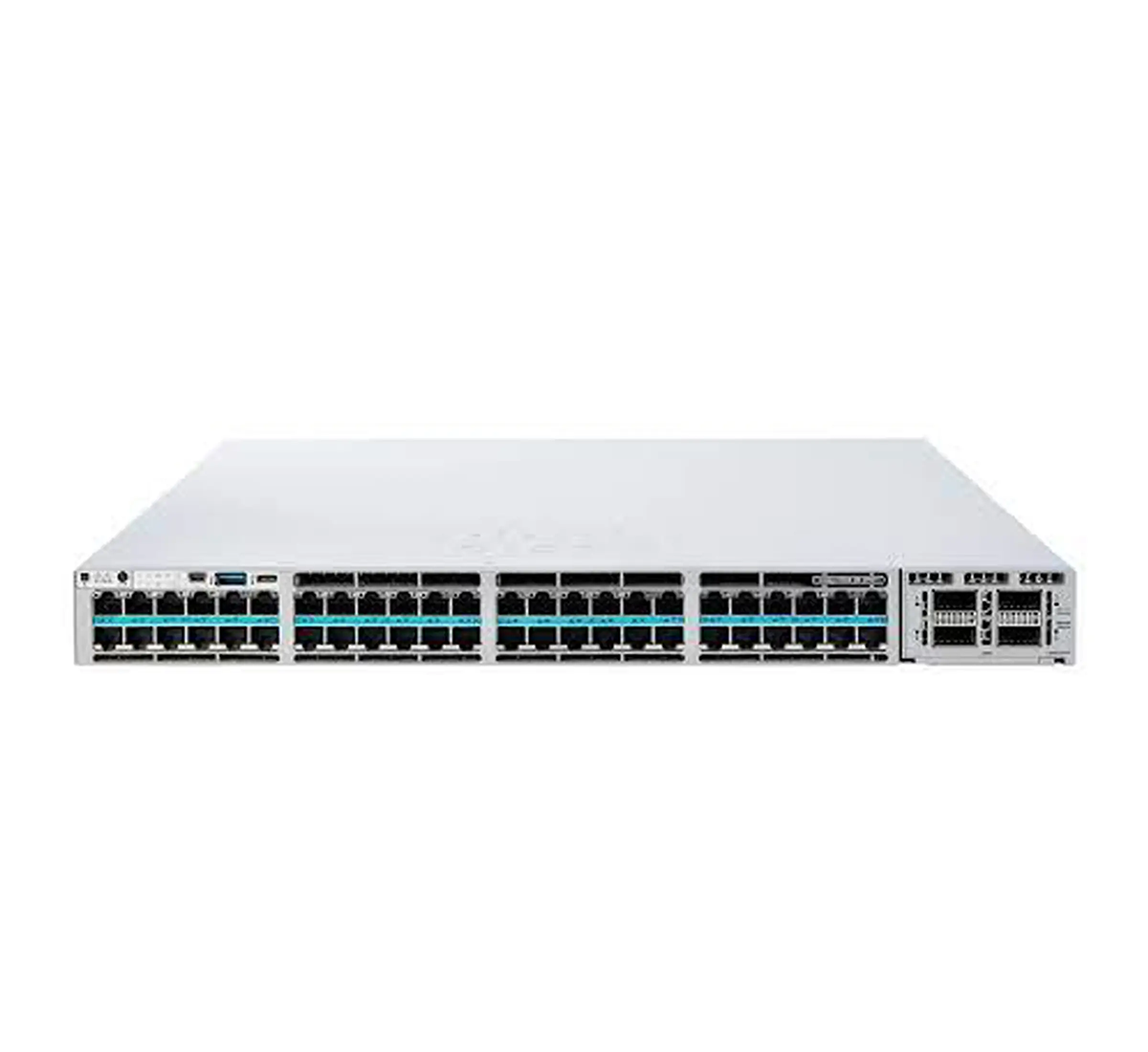

Name: Cisco C9300X-48TX-E
Brand: Cisco
SKU: IM#CE24344
Availability: InStock

Cisco Part Number: C9300X-48TX-E is a Catalyst 9300 48-port 10G/mGig with modular uplink, data only, Network Essentials

Cisco's Catalyst 9300 Series switches, a flagship in the Catalyst 9000 family, redefine enterprise access switching for a hybrid world. Designed to adapt to diverse workplaces, varied endpoints, and decentralized applications, the Catalyst 9300 Series, now featuring the latest Catalyst 9300X models, pioneers ongoing innovation. This evolution enables a reimagination of connections, a reinforcement of security, and a redefinition of the experience for both expansive and compact hybrid workforces.

Key industry-first features:

Stacking Bandwidth: Catalyst 9300 offers 1TB stacking bandwidth, the highest-density solution with versatile uplink options.
Uplink Variety: Modular uplinks include 100G, 40G, 25G, Multigigabit, 10G, and 1G for flexibility.
Mixed Stacking: Enables stacking of Catalyst 9300X with backward compatibility, introducing high-speed fiber to access.
Multigigabit Ports: Catalyst 9300X models support 48 standalone and 448 with an 8-member stack, offering the highest Multigigabit ports.
UPOE+ Density: Supports up to 36 standalone or 288 ports with an 8-member stack, ensuring high-density UPOE+ for OT/IT needs.
Stack Power Compatibility: Catalyst 9300X supports Stack Power with backward compatibility, ensuring power resiliency.
100G IPsec: Utilizing the 2.0Sec UADP ASIC, Catalyst 9300X provides 100G line rate IPsec for enhanced edge connectivity.
Secure Tunnel Connectivity: Facilitates secure connections to Internet Gateways, Cloud Service Providers, and Site to Site with speeds up to 100G.
Enhanced Application Hosting: Increased capacity, additional RAM, QAT, and 2 x 10G AppGig Ports for hosting multiple performance-savvy Cisco Signed applications.
ThousandEyes Enabled: End-to-end visualization from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses).
Investment Protection: Catalyst 9300X redundant fans, power supplies, data stack, and StackPower cables are backward compatible with the Catalyst 9300.

Cisco Catalyst C9300X-48TX switch configuration:

Model	Total 10/100/1000, Multigigabit copper or SFP Fiber	Uplink Configuration	Default AC power supply
C9300X-48TX-E	48 port Data, 48x 10G Multigigabit (10G/5G/2.5G/1G/100M)	Modular Uplinks	715W AC

Power supply configurations:

Models	Primary Power Supply	Default or Upgrade	Available PoE	With 350W Secondary PS	With 715W secondary PS	With 1100W Secondary PS	With 1900W Secondary PS
C9300X-48TX-E	PWR-C1-715WAC-P	Default	No POE	No POE	No POE	No POE	No POE

Bandwidth specification:

SKU	Switching capacity	Switching capacity with stacking	Forwarding rate	Forwarding rate with stacking
C9300X-48TX-E	2,000 Gbps	3,000 Gbps	1488 Mpps	2232 Mpps

Brand	Cisco
Product type	Switch
Product Family	Catalyst
Number of ports	48 ports
Ports specification	48 x 100/1000/2.5G/5G/10GBase-T
Switching layer	L3
Managed	Yes
Power Over Ethernet (PoE)	No
PoE Budget	N/A
Forwarding rate	1488 Mpps
Switching capacity	2000 Gbps
MAC Address Table Size	32000
VLANs supported	4094
Routing Protocols	RIP, RIP-1, RIP-2, VRRP, PIM-SM, static IP routing, GRE, PIM-SSM, policy-based routing (PBR), RIPng, MSTP, STP, LISP
Stackable	Yes
Interfaces	48 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 1 x USB 2.0
RAM	16 GB
Flash	16 GB
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Max Operating Temperature	45 °C
Min Operating Temperature	-5 °C
MTBF	206,480 hours
Power Supply	Internal power supply
Included Accessories	N/A
Width	44.5 cm
Depth	56 cm
Height	4.4 cm
Weight	6.62 kg
Warranty	Enhanced Limited Lifetime Warranty

Cisco Catalyst C9300X-48TX-E - Access Switch
